Connections

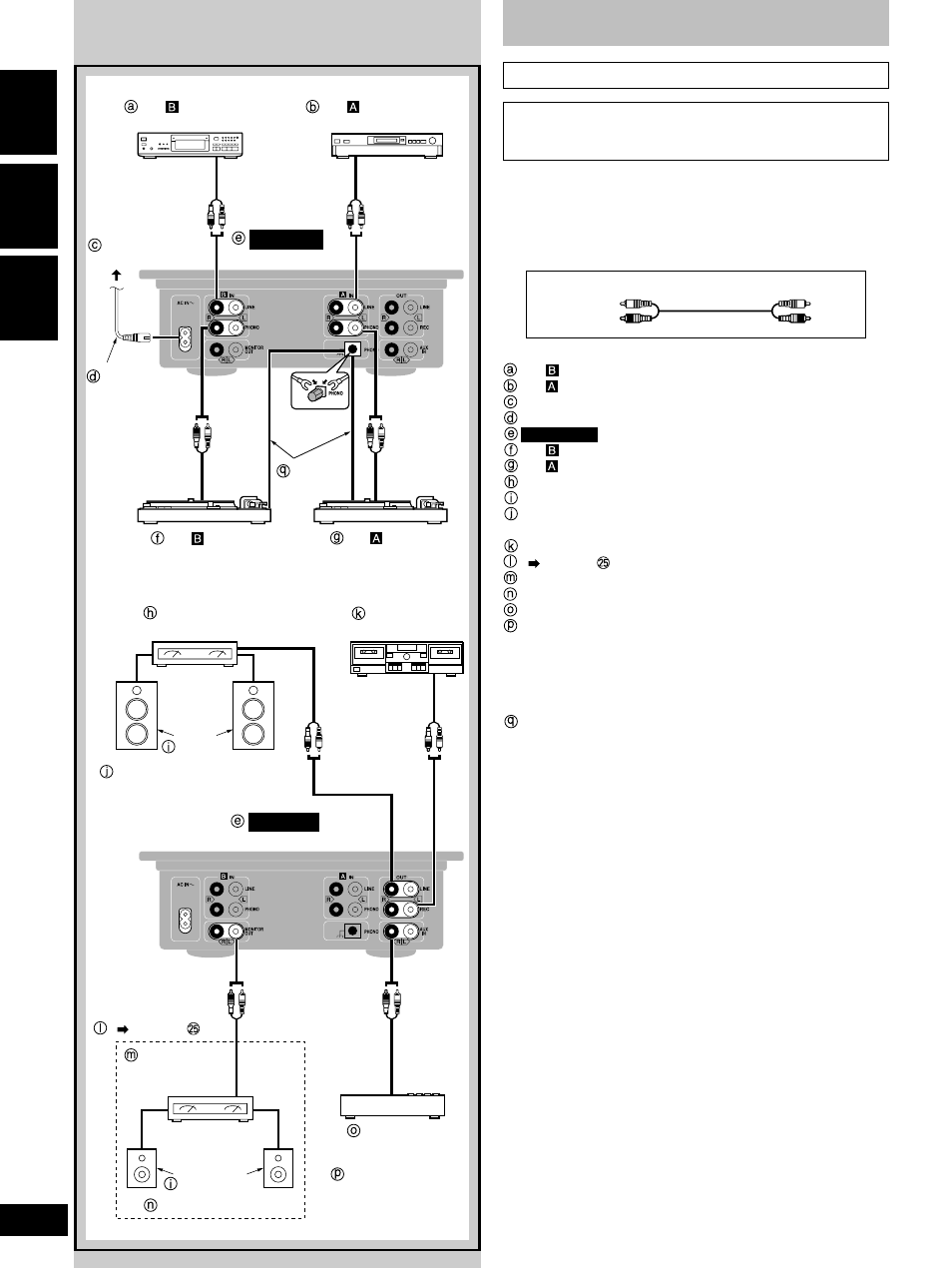

Rear panel connections
For the United Kingdom:
BE SURE TO READ THE CAUTION FOR THE AC MAINS LEAD
ON PAGE 5 BEFORE CONNECTING.
This model is connected with the other equipment using stereo phono
cables (not included). Before proceeding with the connections, make
absolutely sure that the power is turned off to the units concerned.
Connect the AC mains lead after all the other connections have been
completed.
CH
CD or MD player (not included)
CH
MD or CD player (not included)
To household mains socket
AC mains lead (included)
Rear panel
CH
turntable (not included)
CH
turntable (not included)
Amplifier (not included)
Speakers
Alternatively, a power amplifier, PA system or other unit can be
connected.
Cassette deck (not included)
(
page 14
)
Monitor amplifier (not included)
Booth monitor
Sampler (not included)
Alternatively, a keyboard or other unit can be connected.
For your reference:
A grounding wire need not be connected if the turntable does not
have a grounding wire or terminal.
Grounding wire
