PRODUCT OVERVIEW & OPERATIONS
PRODUCT OVERVIEW & OPERATIONS
OFF
/ ON
Indoor Unit
Indoor Unit
Remote Control
Remote Control
OFF / ON
TEMP
TIMER/CLOCK
MODE
QUIET/
POWERFUL
FAN SPEED
MODE
CHECK
RESET
AIR SWING
OFF/ON
CANCEL
CLOCK
SET
SELECT
UP
DOWN
AC
RC
6
10
13
14
15
17
16
18
2
4
5
3
8
7
1
11
12
1

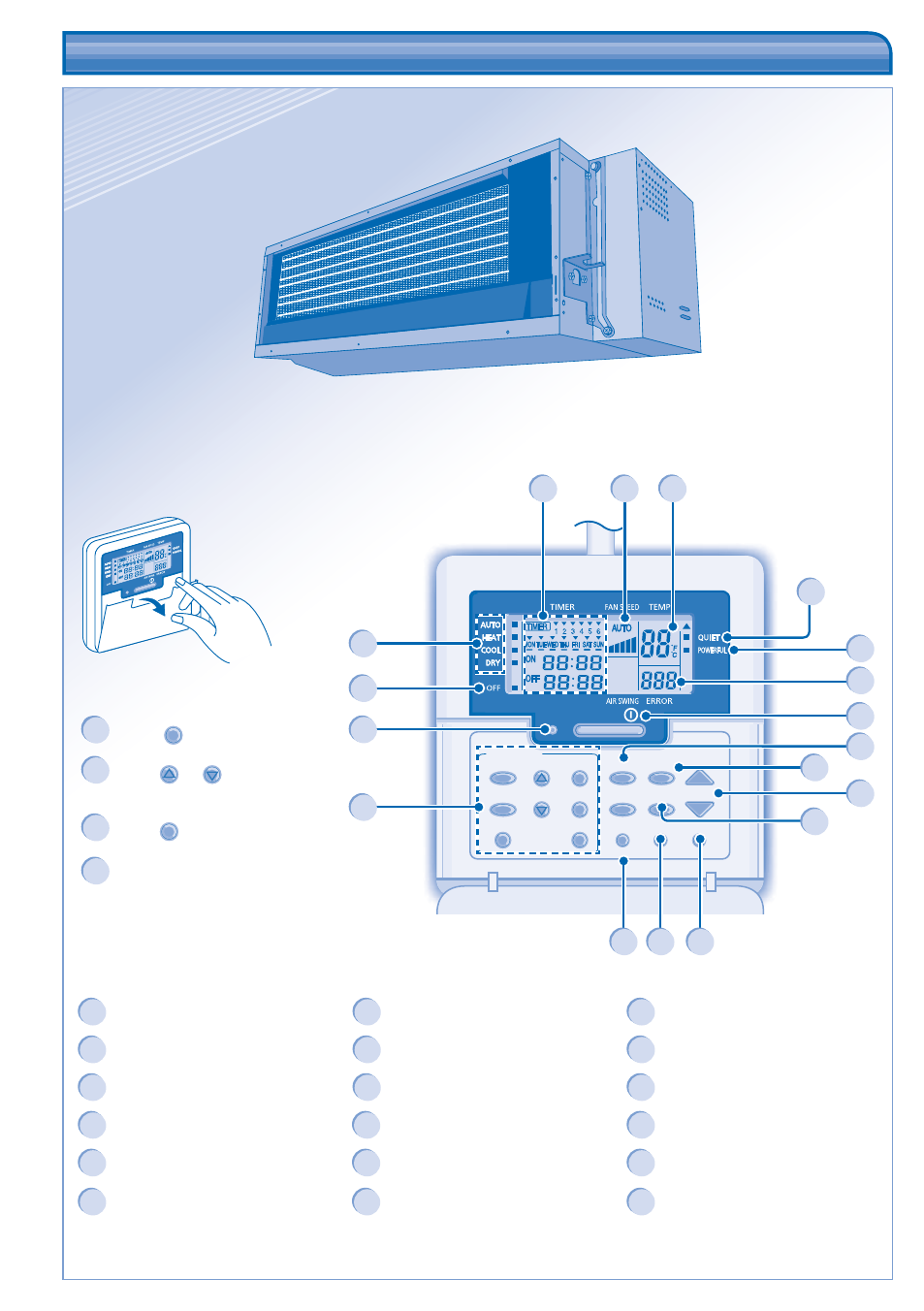

Operation LED
7
Timer Setting Button Group
13
Timer/Clock Setting Display
2
OFF/ON Button
8
Check Button
14
Fan Speed Display
3
Temperature Setting Button
9
Air Conditioner Reset Button
15
Temperature Setting Display
4
Operation Mode Button
10
Remote Control Reset Button
16
Quiet Operation Indicator
5
Fan Speed Button
11
OFF Indicator
17
Powerful Operation Indicator
6
Quiet/Powerful Operation Button
12
Operation Mode Selection
Indicator
18
System Error Display
Remote Control Preparation
1
Press
CLOCK
2
Press
UP
or
DOWN
to select
current day.
3
Press
SET
to confi rm.
4
Repeat steps 2 and 3 to set
the current time.
9
Open the cover to use the
buttons
