Apex Digital AD-703A - Manual (Page 23)

Enjoying Dolby Pro Logic Surround
Sound (GOOD)
Dolby Pro Logic Surround
Enjoy the dynamic realistic sound of Dolby Pro
Logic Surround by connecting an amplifier and
speaker system (right and left front speakers, a
center speaker, and one or two rear speakers).
Set "AUDIO OUTPUT" to "ANALOG" via the
setup menu.
18 A P E X D I G I T A L AD-703A
Enjoying 2 Channel Digital Stereo
Sound (BETTER)
2 Channel Digital Stereo
Enjoy the dynamic sound of 2 Channel Digital
Stereo by connecting an amplifier equipped with
a digital audio input and speaker system (right
and left front speakers).
Set "AUDIO OUTPUT" to "SPDIF/PCM" via the
setup menu.
To VIDEO
OUT
To ANALOG
AUDIO OUT 2
Audio cable Video cable

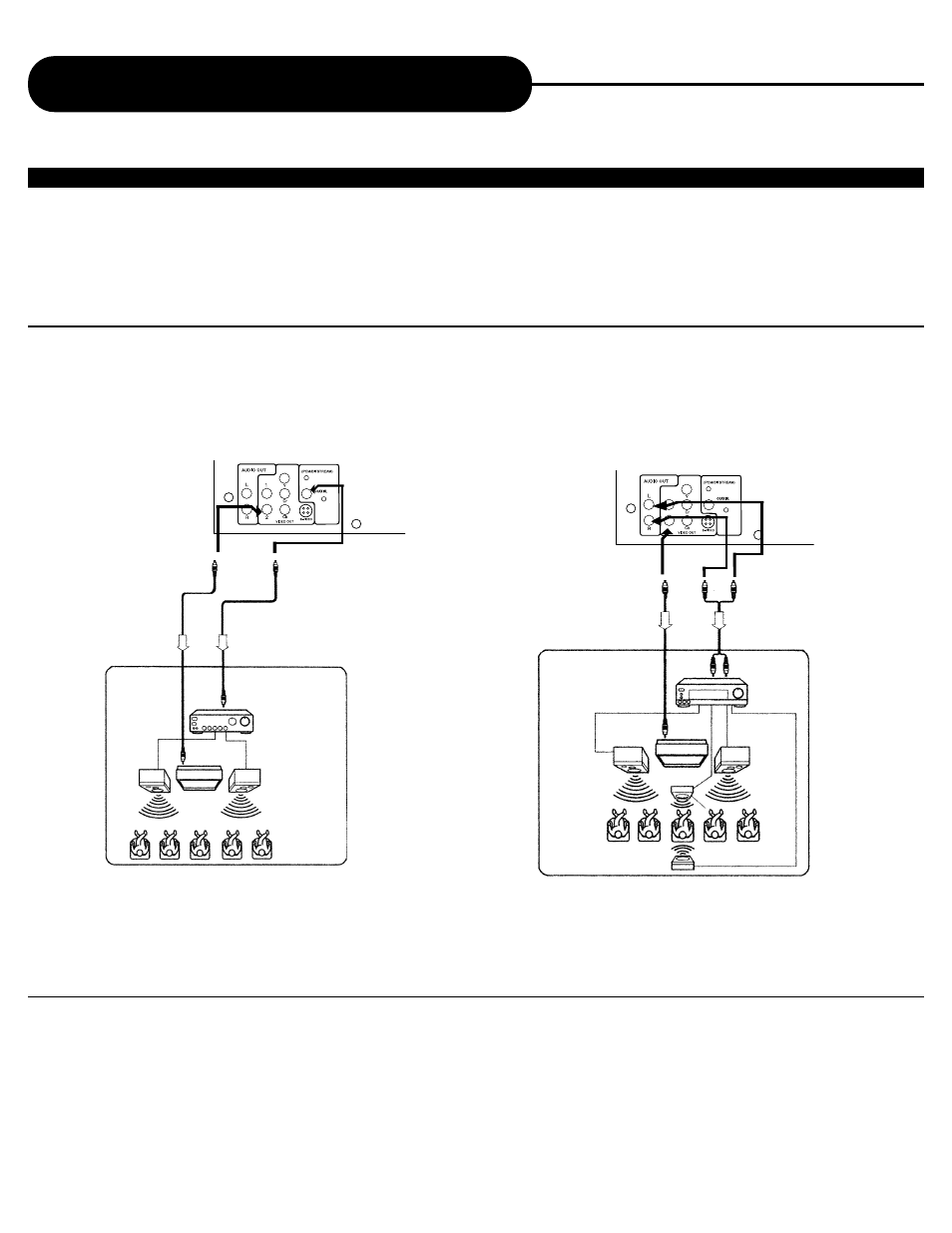

Connection
Example
To audio
input
Amplifier
equipped with
Dolby Pro
Logic Surround
To video
input
Front
speaker
(left)
Connect one or
two speakers. The
output sound from
the rear speakers
will be monaural
even if you
connect two rear
speakers.
Front
speaker
(right)
Center
speaker
Rear
speaker
To VIDEO
OUT
Video cable
Connection
Example
To digital
audio input
Amplifier equipped
with digital audio input
To video
input
Front
speaker
(left)
Front
speaker
(right)
Coaxial cable
To PCM/DOLBY
DIGITAL AUDIO OUT
TV
TV
NOTICE
• It will be helpful to also refer to the manual of the connected TV.
• Turn off the power and unplug both units before setting up any connections.
• Due to the wide dynamic range of sound output of the DVD video player, adjust the volume of your receiver to a comfortably modist
listening level to avoid any speaker damage.
• When connecting or disconnecting the DVD video player, be sure to turn off the amplifier to avoid any speaker damage.
Connecting to Optional Equipment
WARNING
DO NOT set "AUDIO OUTPUT" to "SPDIF/RAW" via the SETUP MENU displays, unless connecting (Via the
PCM/DOLBY DIGITAL AUDIO OUT jack) a receiver that has the Dolby Digital/DTS decoding functions. Take precaution
for high volume sounds may damage your speakers as well as your hearing.
Continued
