11

GB

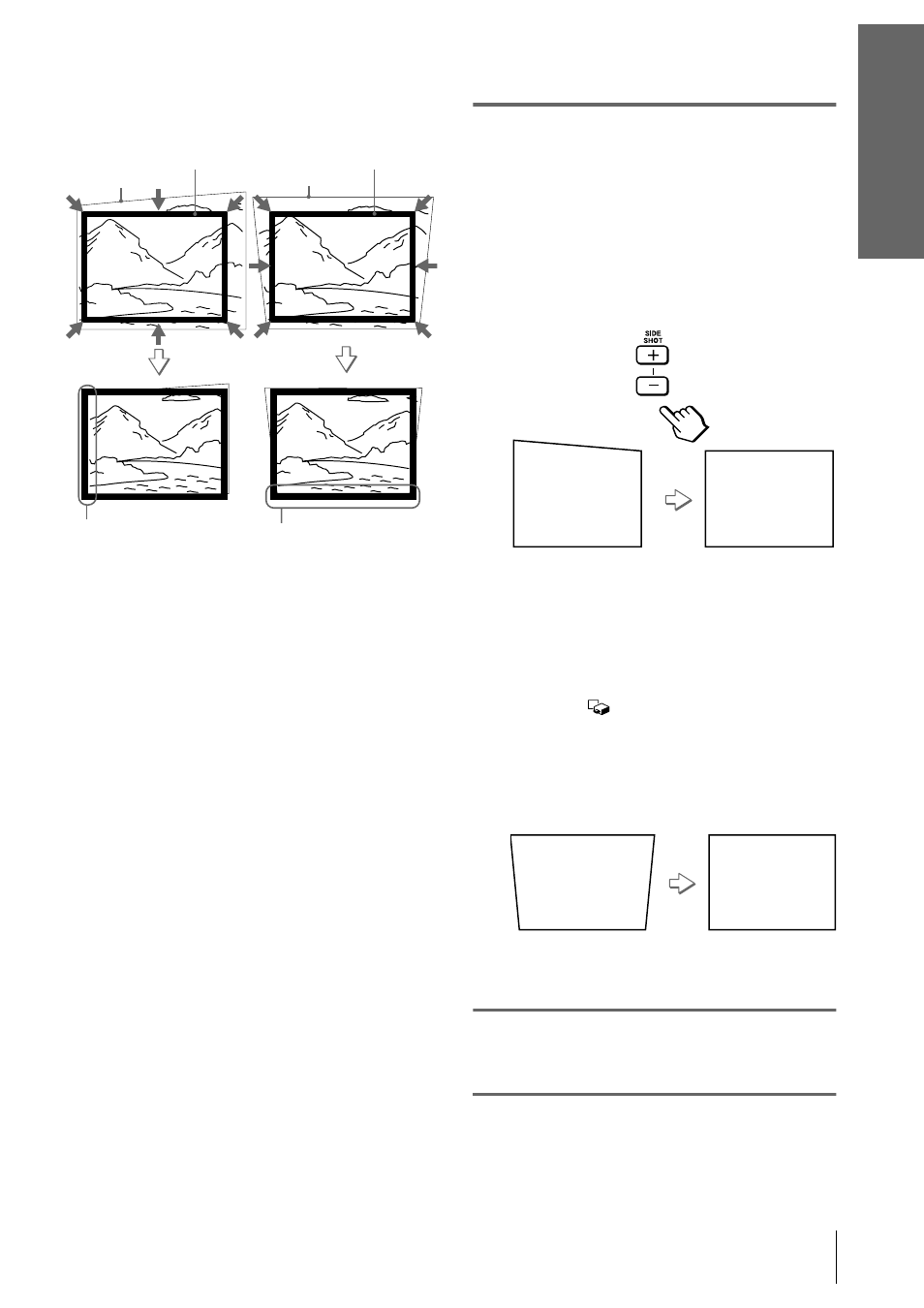

Step 3: Adjusting the Picture Size and Position

C

onnection

s

and

Preparations

7

Adjust to correct the
trapezoidal distortion.

When projecting from the side

Corrects the horizontal distortion.
Press SIDE SHOT + or – so that the top edge of
the picture becomes parallel to the bottom edge.
If the left side is longer than the right side, press
SIDE SHOT –.

Use SIDE SHOT + if the right side is longer.
To fine-adjust the distortion, press

M or m.

When projecting from the center

Corrects the vertical distortion.
Use the menu. Select V (vertical) with the
KEYSTONE DIR setting in the INSTALL
SETTING

menu. Next, adjust with the

DIGIT KEYSTONE setting so that the left side
of the picture becomes parallel to the right side.
(

1 page 20)

If the top edge of the picture is longer than the
bottom edge, set to a plus value.

If the bottom edge is longer than the top edge,
set to a minus value.

8

Adjust the focus again using
the focus lever.


When projecting from
the center

When projecting from
the side

Screen

If you position the projector
below the bottom of the
screen, adjust so that the
bottom edge of the picture
fits the bottom edge of the
screen. For the projector
positioned above the
bottom of the screen,
adjust so that the top edge
of the picture fits the top
edge of the screen.

If you position the
projector on the left side
of the screen, adjust so
that the left side of the
picture fits the left side
of the screen. For the
projector positioned on
the right side, adjust so
that the right side of the
picture fits the right side
of the screen.


Screen
