Adjusting the Picture Position
C
onn
ec
tion
s an
d Pr
e
p
a
rat
io
ns
5

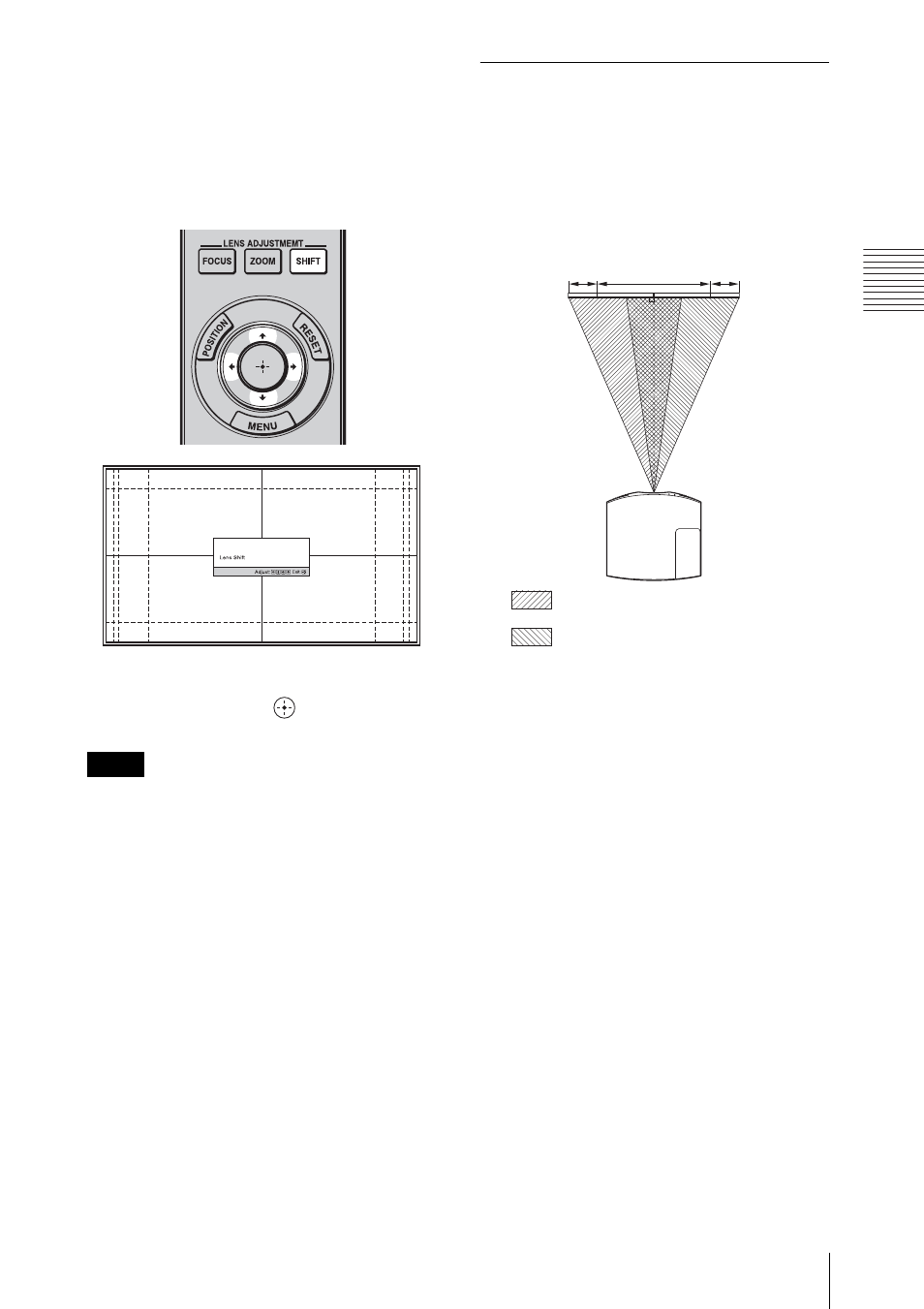

Adjust the picture position.
Press the LENS ADJUSTMENT
(SHIFT) button to display the Lens Shift
adjustment window (test pattern). Then
adjust to the proper position of the
picture by pressing the
M/m/
buttons.
Tip
Whenever you press the
button, the test
pattern disappears.
When adjusting the window position, do not
touch the lens unit, otherwise your fingers may
be pinched by the moving parts.
To adjust the horizontal position
Press
The picture projected on the screen moves
right or left by a maximum of 31% of the
screen width from the center of the lens.
Top view
Note
31% 31% 1 screen width
: Picture position when moving the
picture to the left at maximum
: Picture position when moving the
picture to the right at maximum
