Install Discharge Chute and Discharge Chute
Crank (921002, 003, 004)
(Figure 8)
1. Grease underside of discharge chute ring (if not
already greased).
2. Remove mounting hardware from auger housing.
3. Install discharge chute over opening in the auger
housing. Finger tighten the mounting hardware
removed in step 2.
NOTE: Leave discharge chute pedestal loose to help
install the chute rod and connect it to the control
assembly.
4. Remove the cover from the gear assembly on the
discharge chute.
5. Release the lock teeth on the gear assembly with
your finger and rotate the discharge chute 90
°
left.
6. Remove and save the hairpin from the control
assembly underneath the control panel.
NOTE: Do not remove the pin installed on the chute
rod.
NOTE: To ensure the discharge chute follows its full
range of travel, make sure the control lever is pushed
all the way to the left before installing and pinning the
chute rod.
7. Align the holes on the end of the chute rod with
the mark on the gear assembly and slide the end
without a pin through the gear assembly, through
the hook on the chute lock cable and into the hex
hole in the control assembly.
IMPORTANT: The hook will prevent the control cable
from contacting the engine or muffler guard.

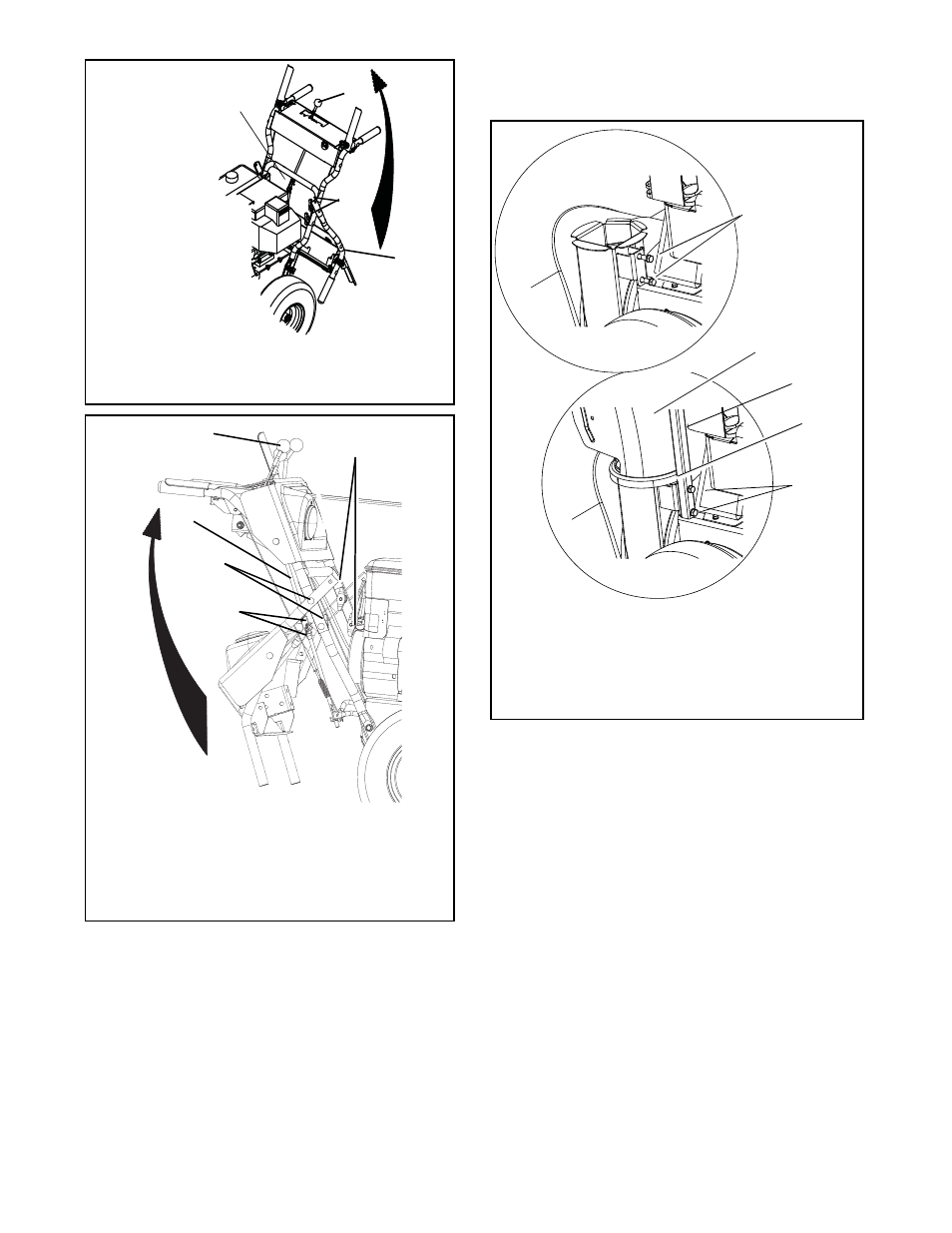

1. Handlebar
2. Wing Knobs and Bolts 3. Wing Nuts and Bolts
4. Speed Selector Lever
Figure 6
OS7032
1
2
921001
3
4
1. Wing Knobs
2. Wing Nut
3. Bolt 4. Shift Rod
5. Speed Selector Lever
Figure 7
OS7030
1
1
4
2, 3
5
921002, 003,
004
Figure 8
1. Mounting Hardware
2. Discharge Chute
3. Chute Pedestal 4. Discharge Chute
Ring
1
1
3
2
OS7040
OS7045
4
