PACKAGE CONTENTS
ASSEMBLY
Tools Required:
• Pliers
• Open-End Wrenches: 3/8, 7/16, 1/2,
9/16 in. and/or Adjustable Wrench
• Tire Gauge
Unfold Handlebar (Figure 6, 7)
1. Remove the lower and loosen the upper wing
knobs on the handlebar assembly.
2. Loosen the wing nuts on the shift rod.
3. Put the speed selector lever in the first forward
position (921002, 003, 004) or in the sixth forward
position (921001).
4. Rotate the handlebars into operating position.
5. Install and tighten all wing knobs and wing nuts
on the handlebar assembly and shift rod.
ASSEMBLY
WARNING: AVOID INJURY. Read and
understand the entire Safety section before
proceeding.
WARNING: Dropping or tipping over boxed
unit could result in personal injury or damage
to unit.

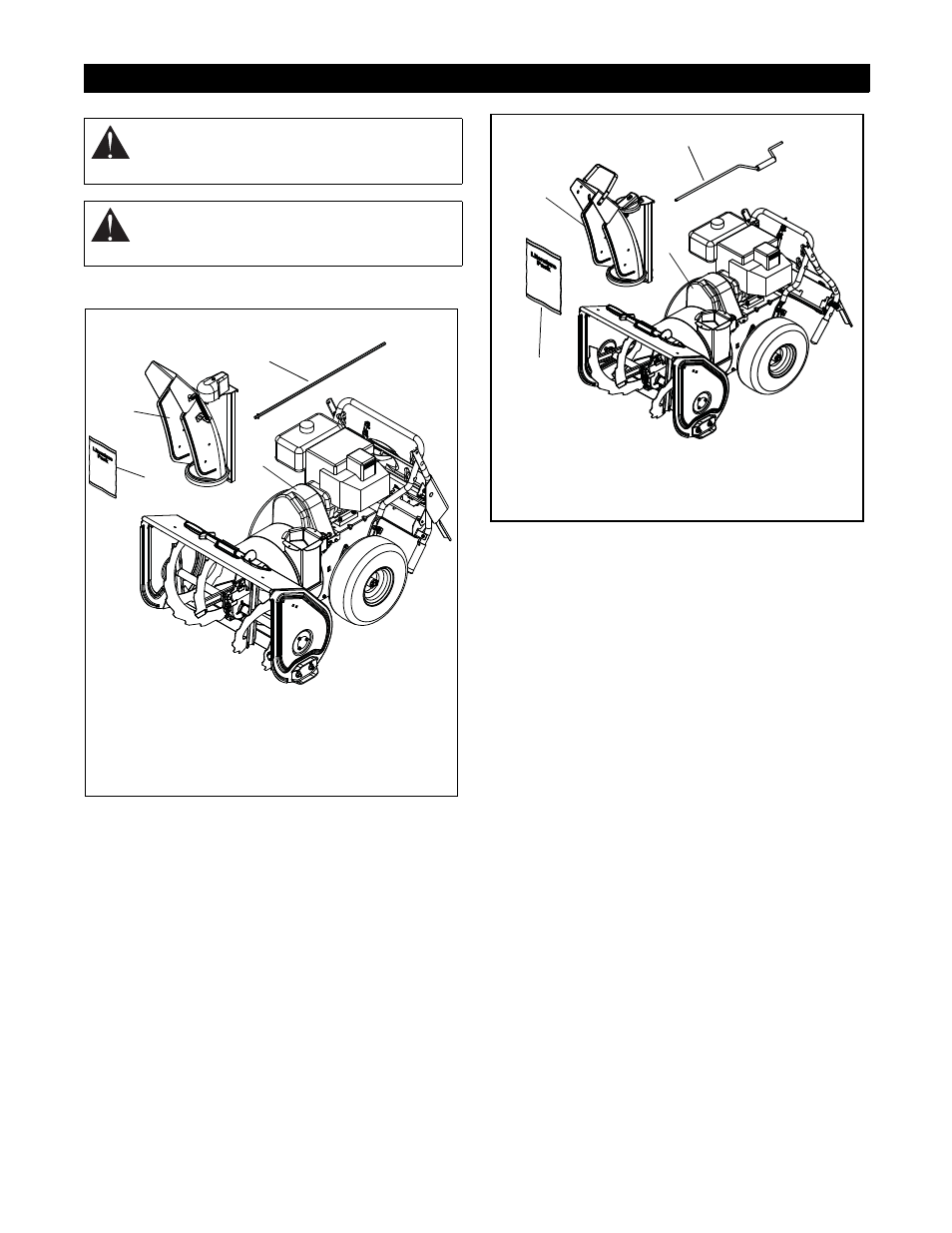

Figure 4
1. Sno-Thro Unit
2. Discharge Chute 3. Chute Rod
4. Literature Pack with
Extra Shear Bolts
1
2
4
3
OS7019
921002, 003, 004
Figure 5
1. Sno-Thro Unit
2. Discharge Chute 3. Chute Rod
4. Literature Pack with
Extra Shear Bolts
1
2
4
3
OS7021
921001
