16. Turn the cart upside down. Place the handle tube on
the bottom of the cart as shown in figure 10. Place the
four tube clamps over the handle tube,
with the longer
leg of each tube clamp to the outside. Secure the four
tube clamps over the handle tube using eight M6X5
screws, eight flat washers and eight hex nuts. Make only
finger tight until all eight screws are in place and then
tighten securely. See figure 10.

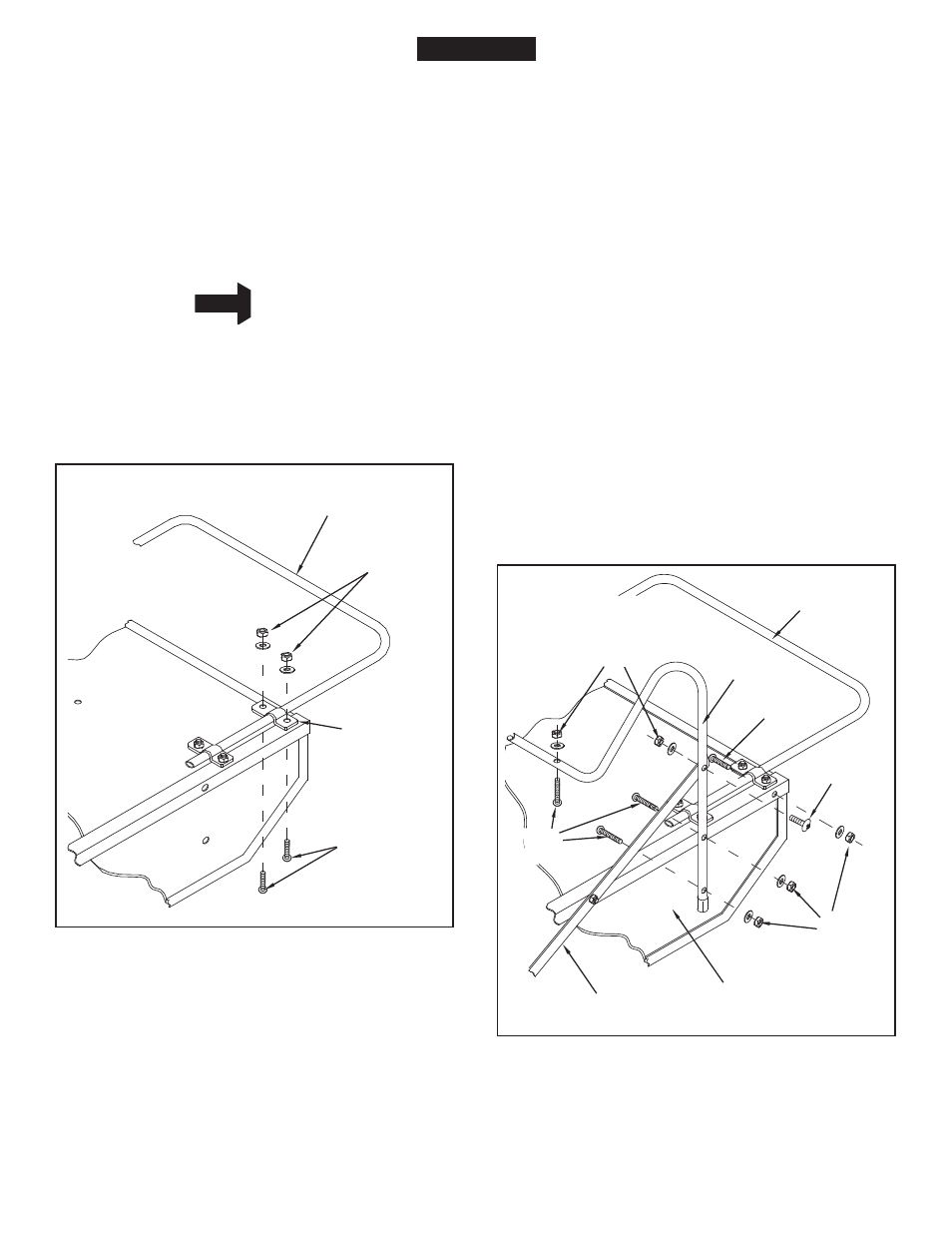

FIGURE 11
FIGURE 10
17. Insert a M6X5 screw through the hole at the rear of
each side panel and the hole at the rear of each side
angle. Secure with M6 flat washers and M6 hex nuts,
making only finger tight at this time. See figure 11.
18. Place the tube caps on the ends of the “W” shaped leg
tube. See figure 11.
19. With the cart still upside down, assemble the leg tube
to the bottom of the cart. Line up the two holes in the
center of the leg tube with the holes in the bottom of
the cart. Secure the leg tube to the bottom of the cart
with two M6X50 screws, M6 flat washers and M6 hex
nuts. Make only finger tight at this time. See figure 11.
0. Attach the leg tube to the side panels with four M6 x50
screws, M6 flat washers and M6 hex nuts. Make only
finger tight at this time. See figure 11.
1. Fasten the support straps to the leg tube with two M6X40
screws, M6 flat washers and M6 hex nuts. See figure
11.
. At this time tighten securely all screws and nuts
ENGLISH
The length of the handle tube can be
adjusted by sliding the tube in or out
before tightening the four clamps. see
figure 10.
NOTE
HANDLE
TUBLE
M6 HEX
NUT AND
Ф 6 FLAT
WASHER
TUBE CLAMP
BOTTOM
PANEL
SIDE
PANEL
M6X25 SCREW
M6 HEX
NUT AND
Ф 6 FLAT
WASHER LEG
TUBE
HANDLE
TUBE
M6 HEX
NUT AND
Ф 6 FLAT
WASHER
M6X50
SCREW
M6X25
SCREW
M6X40
SCREW
SIDE PANEL
SUPPORT
STRAP
