9. Position a side panel againist a side angle, resting it
down on top of the front panel. Place a support strap on
the outside of the side angle and start a M6X0 screw
through the
second hole in the side panel, the side
angle and the support strap. Secure with a flat washer
and hex nut.
Make only finger tight at this time. See
figure 7.
10. Start a M6X0 screw through the top hole in the side
panel, the front angle assembly and the support strap.
Secure with a flat washer and hex nut.
Make only finger
tight at this time. See figure 7.
11. Repeat steps 9 and 10 for the other side panel.
1. Start one M6X5 screw through the bottom hole in the
side panel and the front angle assembly. Start another
M6X5 screw through the front hole in the side panel
and the side angle. Secure with two flat washers and
two hex nuts,
making only finger tight at this time.
See figure 8.
1. Repeat step 1 for the other side panel.
14. Tighten all nuts and screws securely at this time, except
for nuts and screws in axle clamps. See figure 8.

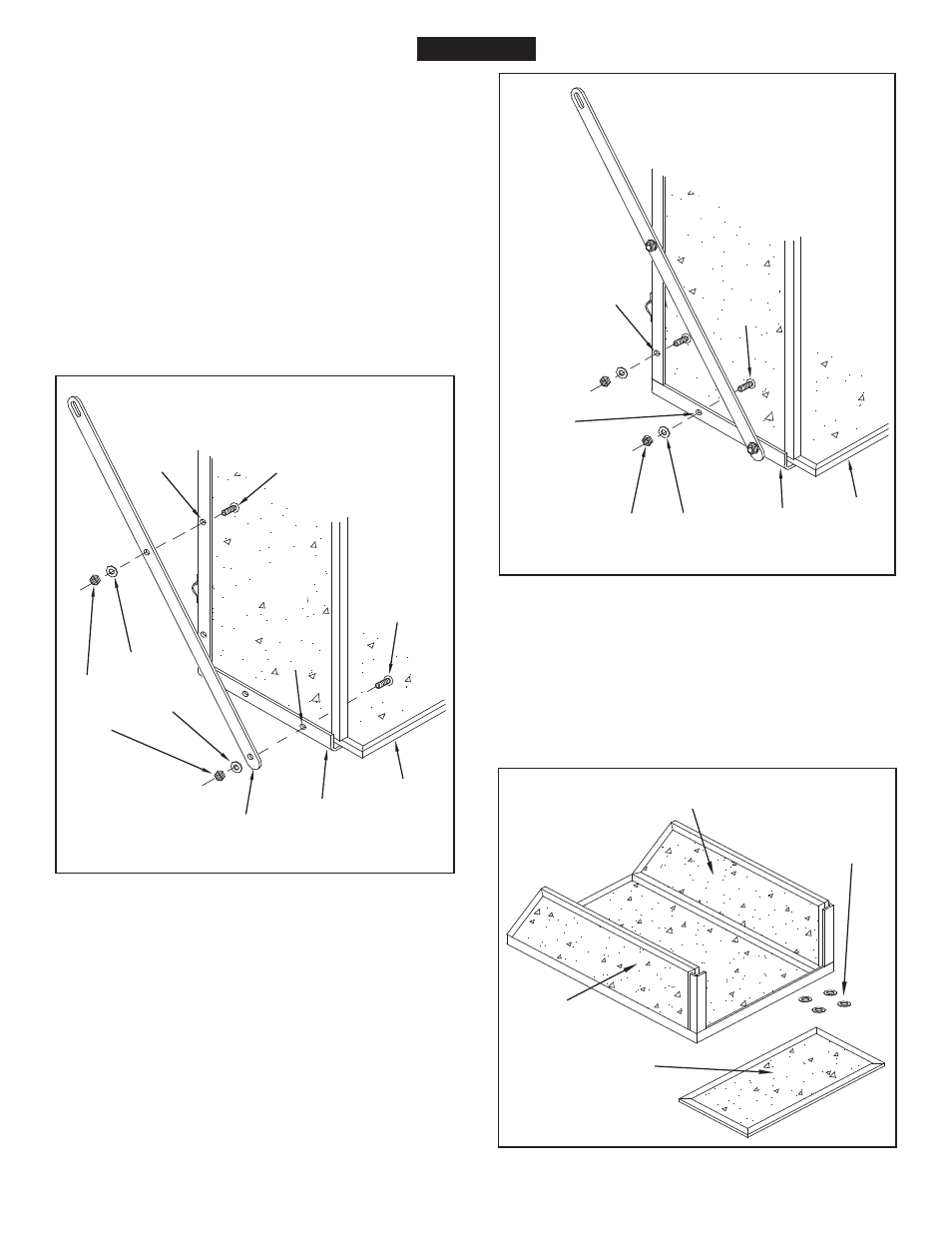

FIGURE 8
FIGURE 7
ENGLISH
M6
HEX
NUT
Ф 6
FLAT
WASHER
M6X30
SCREW
SIDE
PANEL
TOP
HOLE
SECOND
HOLE
M6X30
SCREW
FRONT
ANGLE
ASS'Y
SUPPORT
STRAP
FRONT
PANEL
M6
HEX
NUT
Ф 6
FLAT
WASHER
M6X25
SCREW
SIDE
PANEL
FRONT
HOLE
FRONT
ANGLE
ASS'Y
FRONT
PANEL
BOTTOM
HOLE
FIGURE 9
15. Lay the cart down on the floor so that the sides are up
in a normal position. Remove the front panel by sliding
it up, then remove the four large washers you used for
shims. See figure 9.
SIDE
PANEL
CART
(4) LARGE
FLAT
WASHERS
USED AS
SHIMS
FRONT
PANEL
SIDE
PANEL
