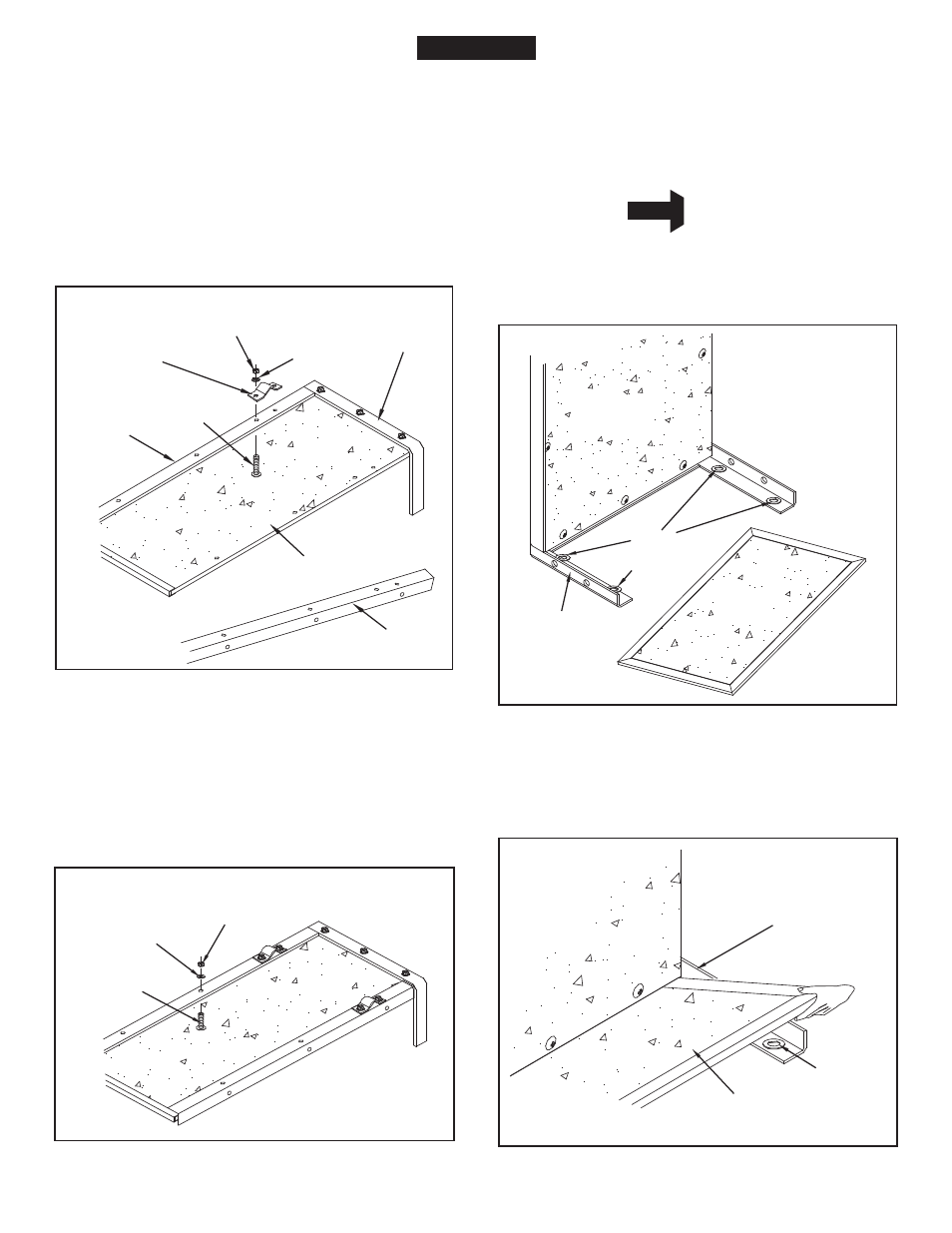

. Turn the front angle assembly and bottom panel upside
down as shown in figure 3.
4. Lay the two side angles on the bottom panel so that
the two holes for the axle clamps are closer to the front
angle assembly. See figure 3.
5. Secure both axle clamps to the side angles and the
bottom panel using four M6 x 0 screws, lock washers
and hex nuts.
Make only finger tight until axle is
assembled. See figure 3.
FIGURE 4 FIGURE 6
8. Lay the front panel down onto the front angle assembly,
on top of the four large washers. See figure 6.
FIGURE 3
7. Stand the cart on end with the front angle assembly down
on the floor. Temporarily place four large flat washers
(axle washers) on the inside of front angle assembly.
See figure 5.
These washers act as shims and are just
for assembly purposes. You will remove
them later to use on axle.
NOTE
6. Secure both side angle assemblies to the bottom panel
using four M6 x 25 screws, flat washers and hex nuts.
Make only finger tight until all four screws are in place,
then
tighten securely. See figure 4.
FIGURE 5
ENGLISH
M6X30
SCREW
BOTTOM
PANEL
SIDE
ANGLE
SIDE
ANGLE
FRONT
ANGLE
ASS'Y
M6
HEX
NUT
AXLE
CLAMP
Ф6
LOCK
WASHER
M6
HEX
NUT
M6X25
SCREW
Ф6
FLAT
WASHER
LARGE
FLAT
WASHER
FRONT
PANEL
BOTTOM
PANEL
FRONT
ANGLE
ASS'Y
LARGE
FLAT
WASHER
FRONT
ANGLE
ASS'Y
FRONT
PANEL
