This connection will use your 2 front speakers connected to your stereo amplifier (receiver) for
sound. If the stereo amplifier (receiver) has audio input jacks L and R only, use
. If the
amplifier (receiver) has a digital input jack, use
. When connecting to an MD deck or a DAT
deck, use
. In this case, you can also connect the player directly to the MD deck or DAT
deck with using your stereo amplifier (receiver).
xRecommended surround sound effects for the
connection only.
•
TVS STANDARD (page 50)
z
In connection
, you can use the supplied audio/video cord instead of using a separate audio cord.
z
To realize better surround sound effects, make sure that your listening position is in between your speakers.

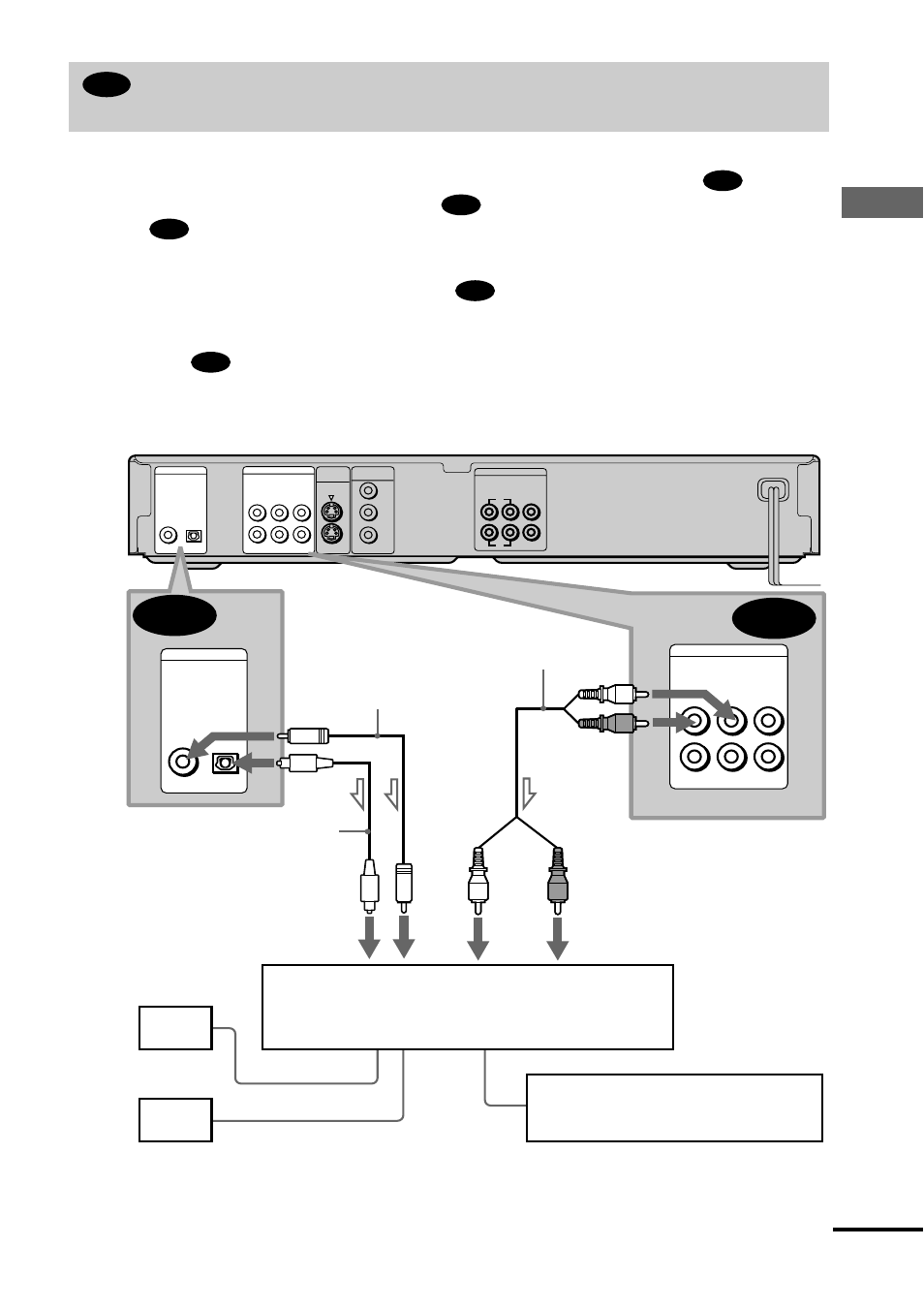

Connecting to a stereo amplifier (receiver) and 2 speakers/Connecting to
an MD deck or DAT deck
C
C-1
C-2
C-2
C-1
C-1
PCM/DTS/
DOLBY DIGITAL
S VIDEO
OUT
COMPONENT
VIDEO OUT
COAXIAL OPTICAL
R-AUDIO 1-L
VIDEO 1
Y
P
B
P
R
R-AUDIO 2-L
VIDEO 2
DIGITAL OUT
LINE OUT
PCM/DTS/
DOLBY DIGITAL
COAXIAL OPTICAL
DIGITAL OUT
C-2
5.1CH OUTPUT
WOOFER
L
R
FRONT
REAR CENTER
1
2
C-1
VIDEO 1
R-AUDIO 2-L
VIDEO 2
LINE OUT
R-AUDIO 1-L
l
: Signal flow
CD/DVD player
or
Stereo amplifier (receiver)
MD deck/DAT deck
Front
(L)
Front
(R)
[Speakers]
(white)
(red)
(white)
(red)
Coaxial digital
cord (not supplied)
Stereo audio cord
(not supplied)
to audio input
or
Optical digital cord
(not supplied)
Remove jack cap
before connecting
to coaxial or optical digital input
continued
