14. See “Removing the VGA Board (Discrete Model only)” on page 75.
15. See “Removing the LCD Module” on page 76.
16. See “Separating the Upper Case from the Lower Case” on page 78.
17. See “Removing the Modem Board” on page 87.
18. See “Removing the USB Board Module” on page 89.

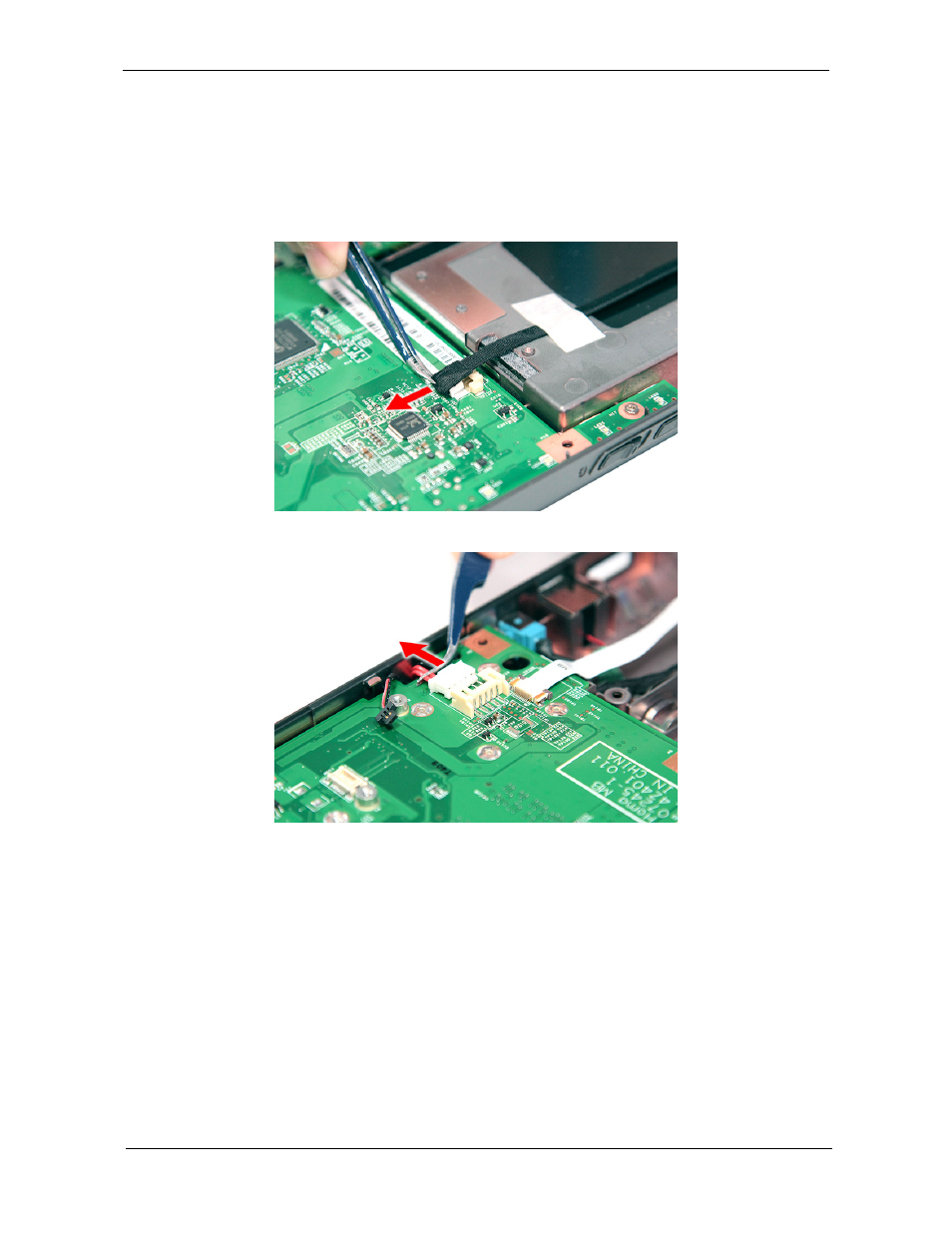

19. Disconnect the Bluetooth cable from BLUE1 on the main board.
20. Disconnect the DC cable from the DC1 connector on the main board.
