SECTION VIII
PROCEDURE FOR FUNCTIONAL CHECK OF
REPLACEMENT COMPONENTS
1. Microprocessor (computer) Board
a. Upon completing installation of the replacement microprocessor (computer) board, reestablish power to
the dryer.
b. Start the drying cycle.

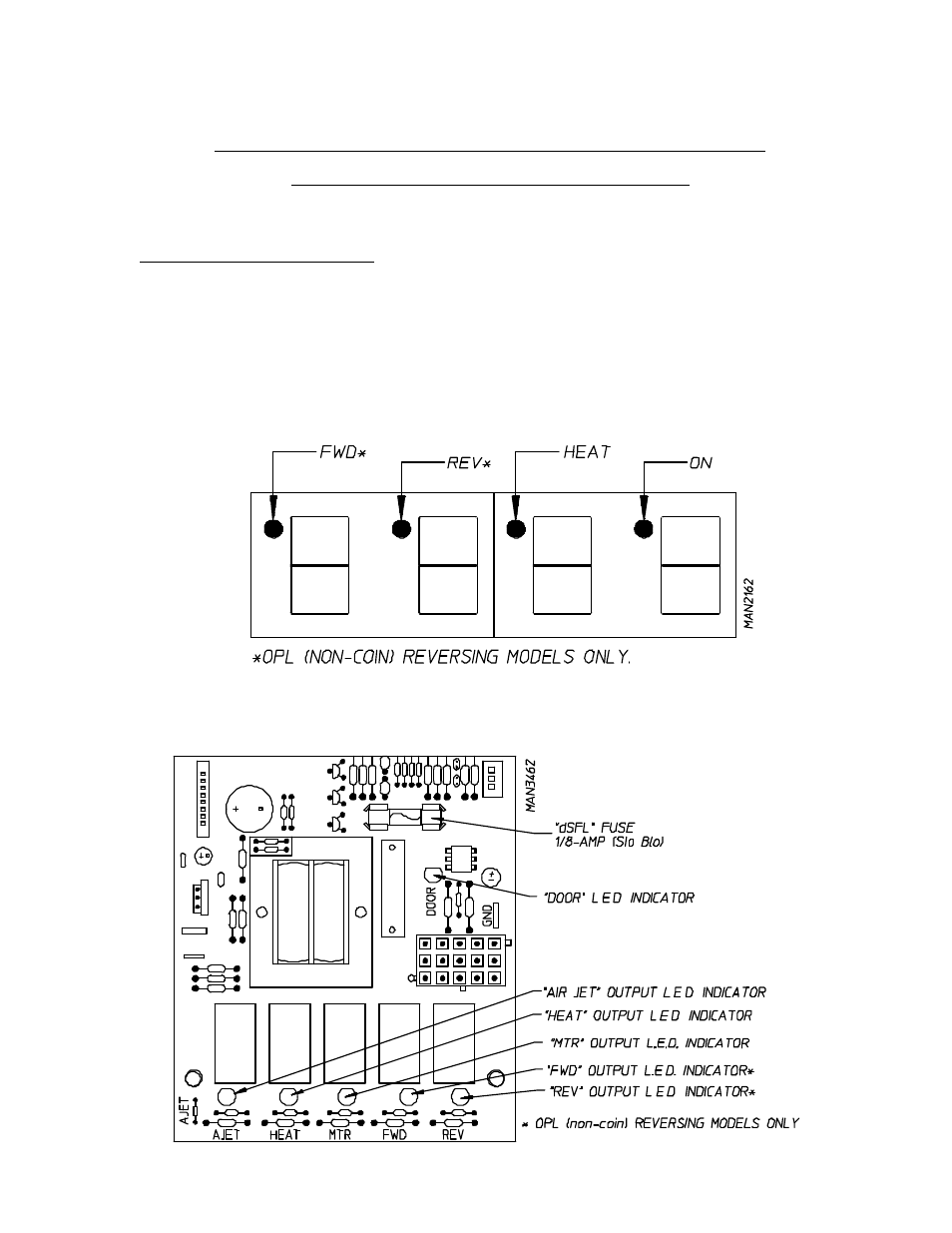

c. Verify that the motor(s) and the heat indicator dots, in the microprocessor (computer) L.E.D. (light
emitting diode) display are on. (Refer to the illustration below.)
d. Verify that motor(s) heat, and door indicator lights on the back side of the microprocessor (computer
board are lit. (Refer to illustration below.)
