Sony RDR-VX525 - Manual (Page 117)

117
A
d
d
iti
o
n
a
l I
n
fo
rm
a
tio
n

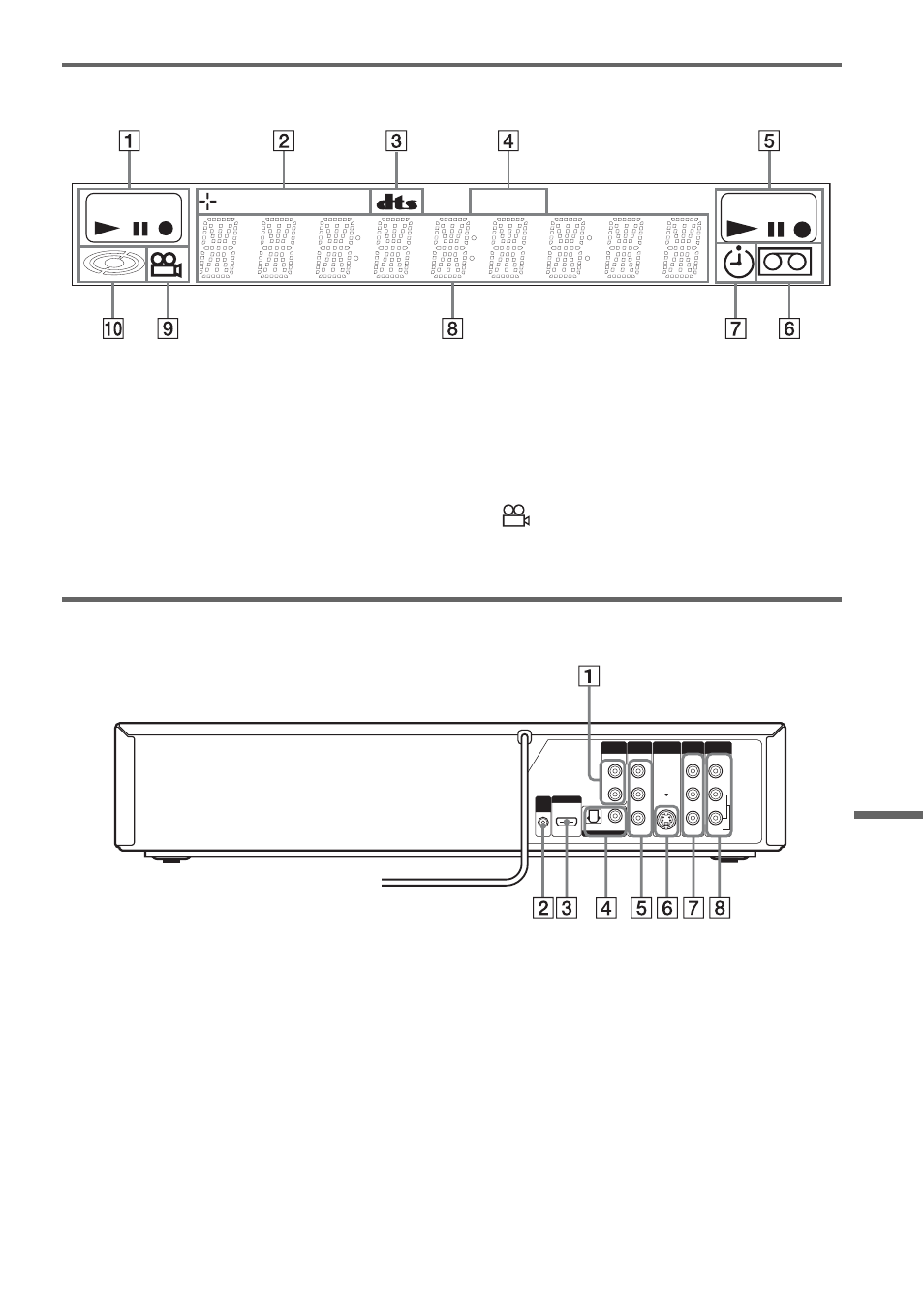

Front panel display
A DVD playing/recording status
B Disc type/recording format
C Audio signal indicators
D STEREO indicator (74)
E VIDEO playing/recording status
F Tape indicator
G Timer indicator H Displays the following (45, 73):
• Playing time/remaining time
• Current title/chapter/track/index number
• Recording time/recording mode
• Clock
• Channel
I
(angle) indicator (36)
J Disc indicator
Rear panel
A AUDIO OUT L/R jacks (18)
B SET TOP BOX CONTROL jack (13)
C HDMI OUT jack (16)
D DIGITAL AUDIO OUT (COAXIAL/
OPTICAL) jacks (18)
E COMPONENT VIDEO OUT (Y, P
B
, P
R
)
jacks (17)
F S VIDEO OUT jack (15)
G LINE 1 IN (VIDEO/AUDIO L/R) jacks
(13)
H LINE OUT (VIDEO/AUDIO L/R) jacks
(15, 17)
DVD
RW VR VCD
VIDEO
STEREO
L
R
VIDEO
AUDIO
LINE OUT
VIDEO
Y L
P B R
P R
AUDIO
LINE 1 IN AUDIO OUT S VIDEO OUT COMPONENT
VIDEO OUT
DIGITAL AUDIO OUT
OPTICAL COAXIAL
HDMI OUT SETTOP
BOX
CONTROL
