Page 32
VAIO MX Computer Getting Started Guide
32
3
Connect the single-jack end of the audio cable (supplied) to the Audio-Out
jack on the back panel of your computer. Connect the double-jack end of the
audio cable to the Audio-In (L/R) on your TV monitor or display. (The
Audio-In jacks may be located on the side or rear of your TV monitor or
display.)
Connecting a VCR or camcorder
Your VAIO® MX computer has both audio and video connection capability
behind the bottom panel on the front of the system unit. You can connect a VCR
or camcorder, using the audio jacks and video ports.
To connect an audio cable
1
Connect a dual audio cable (optional) to the L and R audio jacks, located on
the front panel of your computer.
2
Connect the other ends of the dual audio cable to your VCR or camcorder.
To connect a video cable
Your equipment may have either standard video or S-video connection capability.
See the section, “Connecting a standard or S-video cable to your computer.” for
more information.

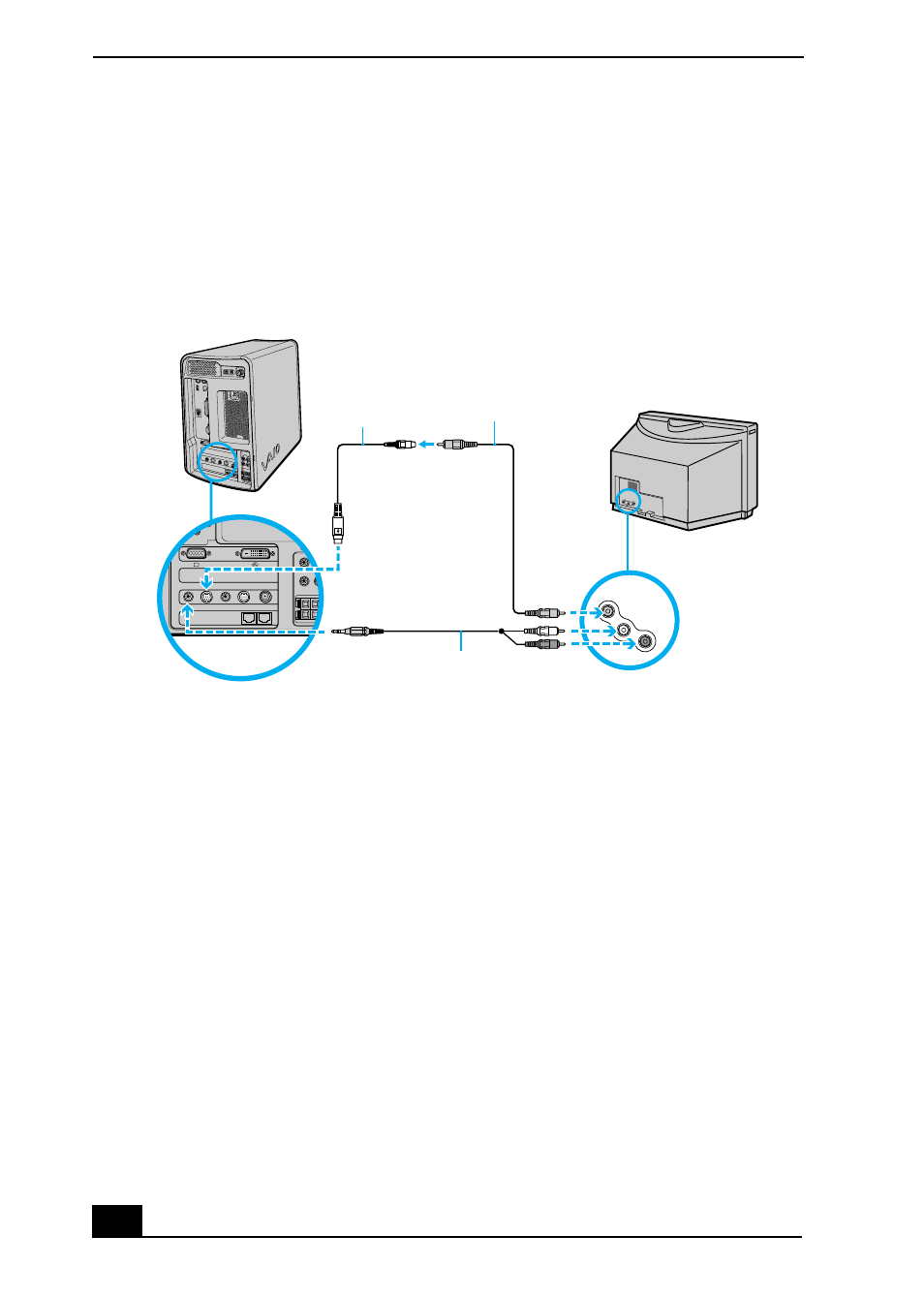

Connecting a TV monitor/display
LINE
IN
LINE
OUT
MONITOR
DVI
R
L
SPEAKER
------ VIDEO OUTPUT ------
VHF/UHF
------ VIDEO 1 INPUT ------
S VIDEO/VIDEO
S VIDEO/VIDEO
AUDIO
AUDIO
V
ID
E
O
IN
PU
T
V
ID
E
O
L(M
ON
O)
R
Audio cable (L/R)
Video cable adapter
Video cable
(supplied)
(supplied)
(supplied)
