To Set Up Your Giga Pocket Personal Video Recorder System
25
Option 1
1 Connect one end of the coaxial cable (supplied) to your antenna outlet.
Connect the other end to a VHF/UHF RF combiner/transformer (optional).
2 Connect a second coaxial cable (optional) from the combiner/transformer to
the VHF/UHF jack on the back panel of your computer.
Option 2
3 Connect both ends of the antenna’s twin lead cable to the screw-type grips on
the combiner/transformer.
4 Connect a second coaxial cable (optional) from the combiner/transformer to
the VHF/UHF jack on the back panel of your computer.
✍
If you are connecting to an indoor/outdoor antenna, you may need to reorient the
antenna for best reception.
To connect in standard antenna mode (air)
✍
Your VAIO MX Computer is supplied with certain audio and video cables. Depending
on your in-home cable access, you may require extra cables, adapters or connection
equipment not supplied with your computer.
LINE
IN
LINE
OUT
DVI
R L
SPEAKER
VHF/UHF
PUT ------
O/VIDEO
Coaxial cable
(supplied)
Antenna
system
(Air)
300-ohm
Twin lead cable
(optional)
Antenna
System
(Air)

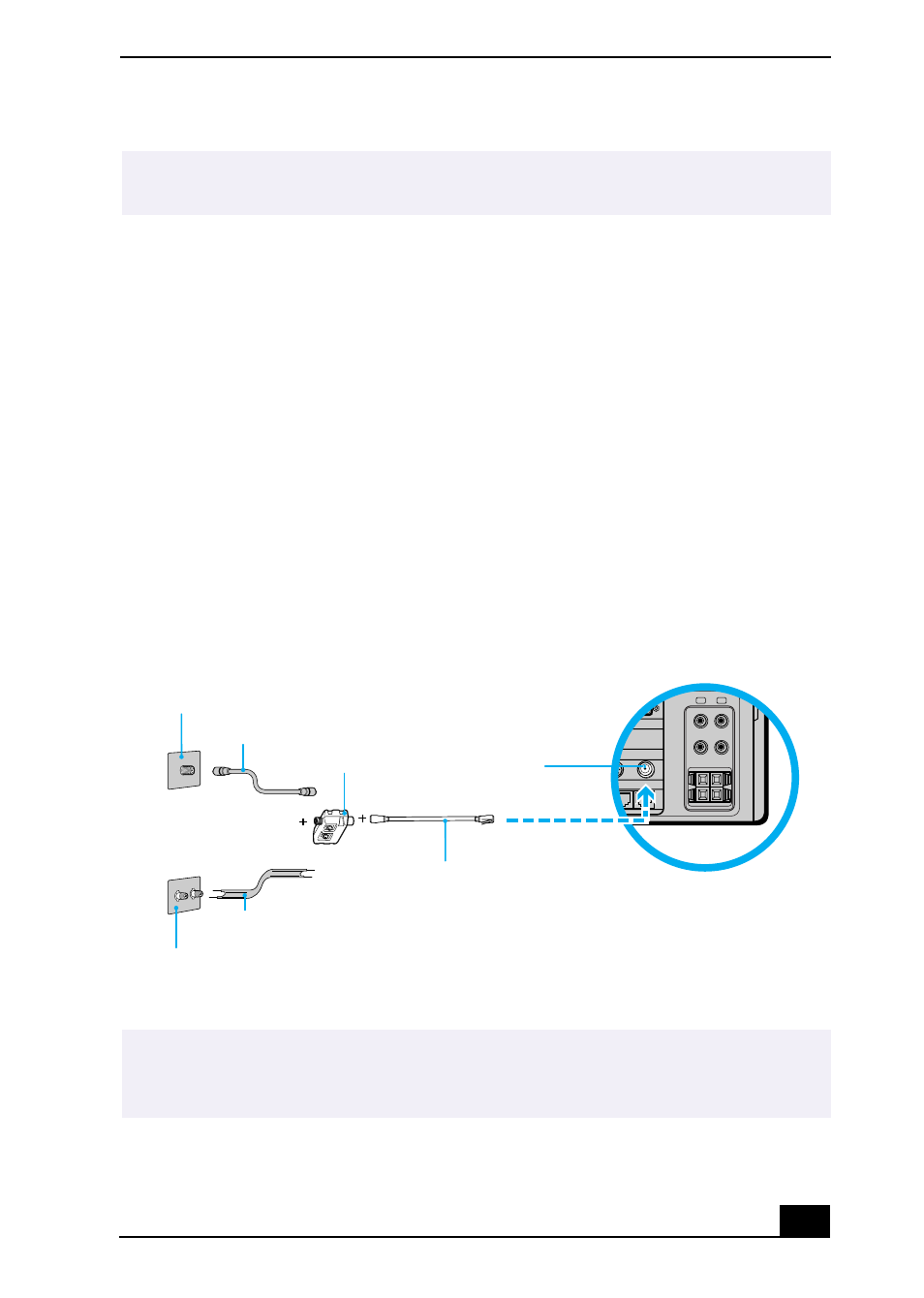

VHF/UHF RF
Combiner/Transformer
(optional)
Coaxial cable
(optional)
Option 1
Option 2
VHF/UHF jack
