Description and location of parts
A ?/1 (on/standby) (page 29, 40, 47)
B INPUT SELECTOR (page 36 - 39, 41, 51)
C Display panel (page 8)
D Remote control sensor
Receives signals from remote control.
E MASTER VOLUME (page 36, 37)
F MUTING (page 37)
G DIMMER
Adjusts the brightness of the display panel in 3
levels.
H DISPLAY (page 38)
I 2CH/A.DIRECT, A.F.D., MOVIE/HD-D.C.S.,
MUSIC (page 43)
J TUNING MODE, TUNING +/–, MEMORY/
ENTER (page 39)
K INPUT MODE (page 51)
L PHONES jack (page 64)

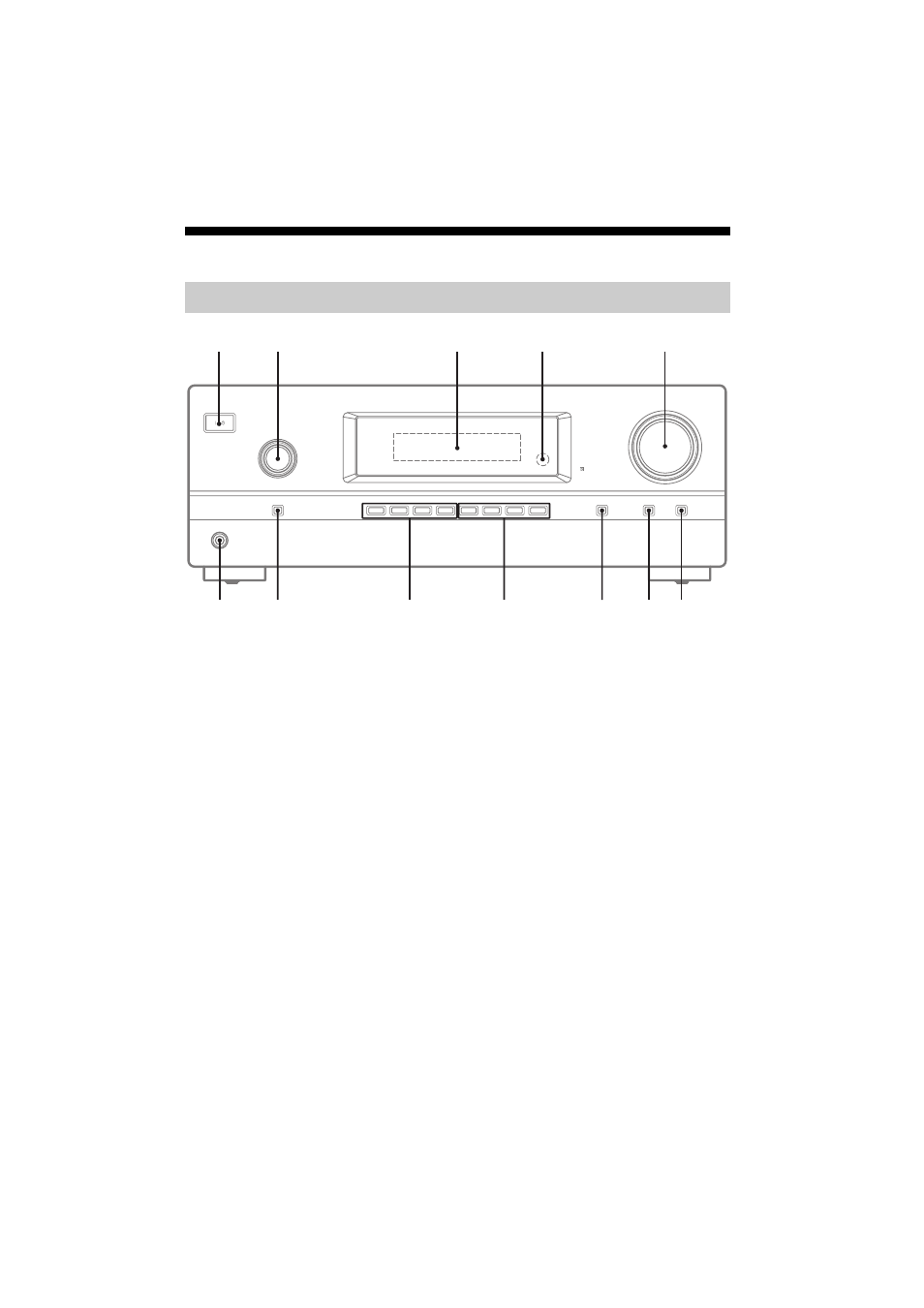

Front panel
