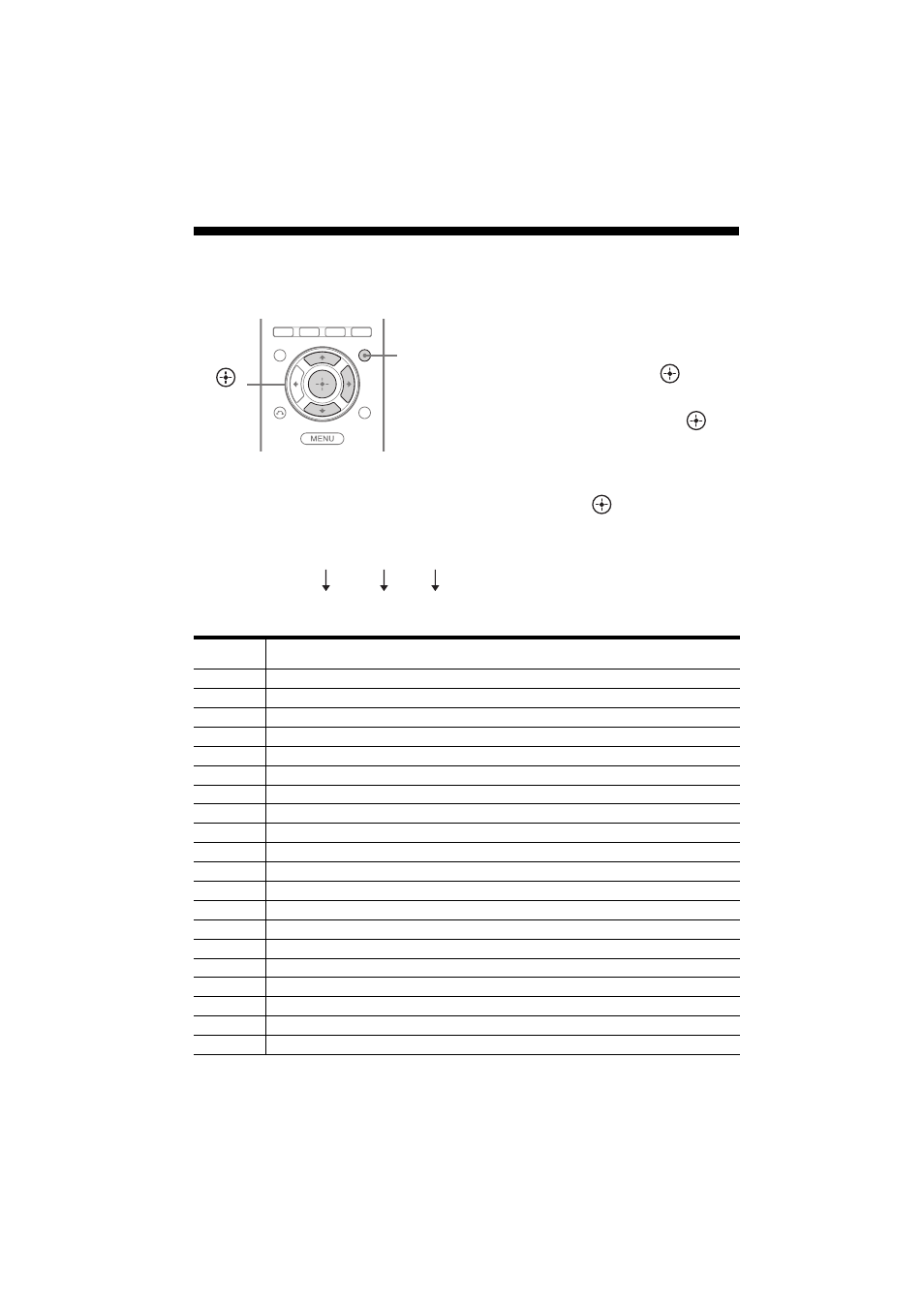

Selecting the speaker pattern
Select the speaker pattern according to the speaker system which you are using.
1
Press AMP MENU.
2
Press V/v repeatedly to select
“SPKR”, then press or b.
3
Press V/v repeatedly to select
“PATTERN”, then press or
b.
4
Press V/v repeatedly to select
the speaker pattern you want,
then press
.
Speaker pattern settings
For example:
,
V/v/b
AMP
MENU
Speaker
pattern
Front
left/right
Front left/
right high Center Surround
left/right Surround
back left Surround
back right Subwoofer
5/2.1 a a a a – – a
5/2 a a a a – – –
4/2.1 a a – a – – a
4/2 a a – a – – –
3/4.1 a – a a a a a
3/4 a – a a a a –
2/4.1 a – – a a a a
2/4 a – – a a a –
3/3.1 a – a a a – a
3/3 a – a a a – –
2/3.1 a – – a a – a
2/3 a – – a a – –
3/2.1 a – a a – – a
3/2 a – a a – – –
2/2.1 a – – a – – a
2/2 a – – a – – –
3/0.1 a – a – – – a
3/0 a – a – – – –
2/0.1 a – – – – – a
2/0 a – – – – – –
5 / 2 1 .
2 front + 2 front
high + center 2 surround subwoofer
