Griplates – Sony SFM-1 User Manual
Page 9
SFM1
Installation Manual
Page 9
Griplates™
1.
The Griplates™ have M4, M5, M6 and M8 hole patterns to fit the hardware that the flat panel requires.
Examples: If your display uses M8 x 20 Phillips head screws. Use the M8 mounting points (Figure 7).

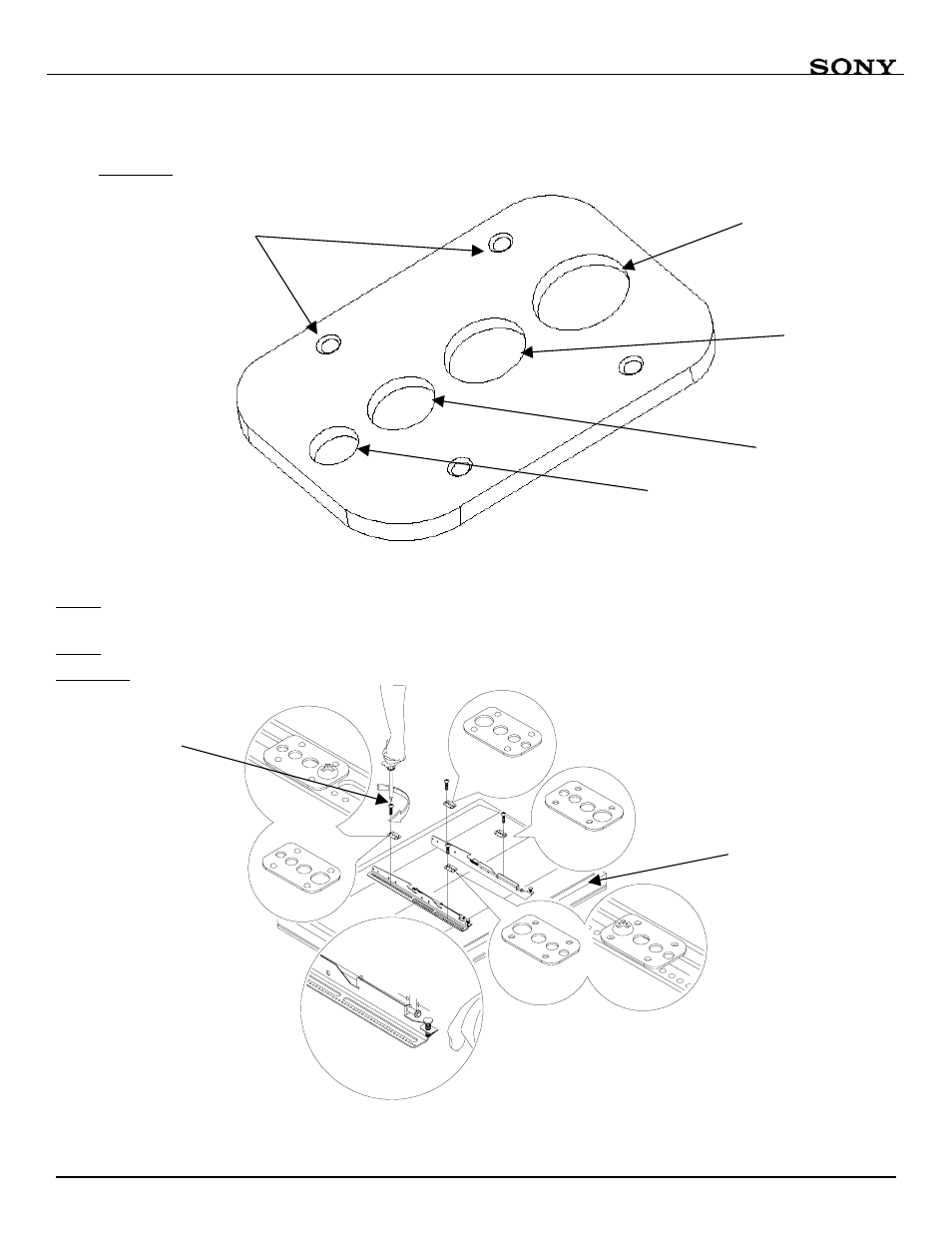

Figure 7. Griplates™ Orientation
2.
Once the mounting brackets are aligned, secure the Griplate™ to the flat panel.
NOTE:
The dimples of the top plates have to be facing up and the bottom dimples must be facing down.
Use (1) Griplate™ per mounting point (Figure 8).
NOTE
:
Leave a ¾” gap on both mounting brackets as shown on this diagram.
CAUTION:
Do not over tighten the mounting hardware.
DIMPLES
FACING UP
3/4"
DIMPLES
FACING UP
DIMPLES
FACING DOWN
DIMPLES
FACING DOWN
Figure 8. Griplate™ Attachment
Dimples
M8
M6
M5
M4
Phillips Screw Driver
Bottom Flat Panel
