Quick Reference
Identifying the parts and controls

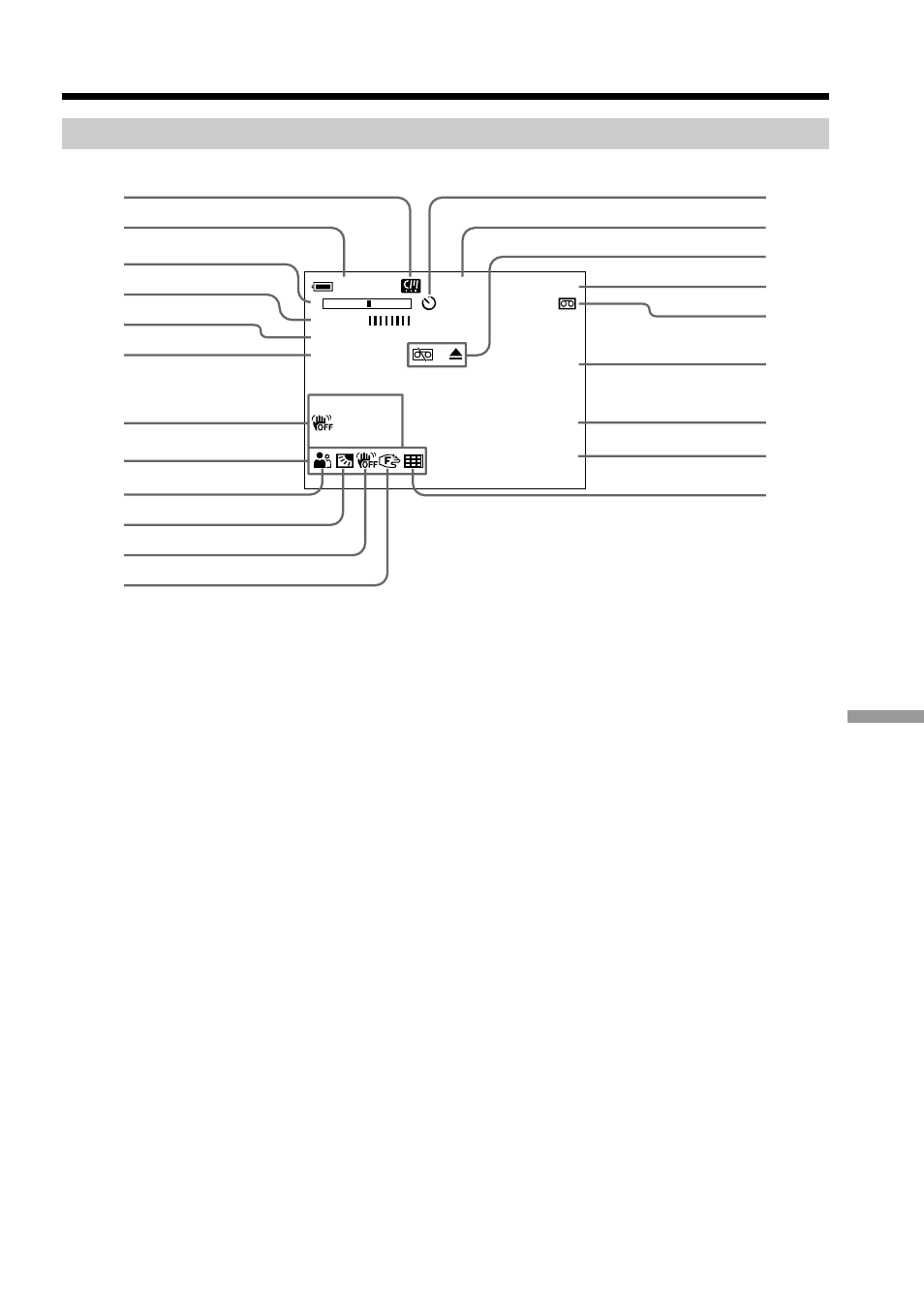

LCD screen and viewfinder
Operation indicators
1 Micro Cassette Memory indicator
(p. 173)
2 Remaining battery time indicator
(p. 35)
3 Zoom indicator (p. 34)/Data file name
indicator (p. 108) (DCR-IP7BT only)
4 Digital effect indicator (p. 56)/
MEMORY MIX indicator (p. 132) (DCR-
IP7BT only)/FADER indicator
(p. 51)
5 16:9WIDE indicator (p. 49)
6 Picture effect indicator (p. 54)
7 Data code indicator (p. 41)
8 Date indicator
9 PROGRAM AE indicator (p. 59)
0 Backlight indicator (p. 36)
qa SteadyShot off indicator (p. 104)
qs Manual focus/Infinity indicator (p. 65)
qd Self-timer indicator (p. 37, 48, 121)
qf STBY/REC indicator (p. 29)/Video
control mode indicator (p. 43)/Movie
mode indicator (p. 115) (DCR-IP7BT
only)/Image quality mode indicator (p.
113) (DCR-IP7BT only)
qg Warning indicators (p. 171)
qh Tape counter indicator (p. 35)/Self-
diagnosis indicator (p. 170)/Photo
mode indicator (p. 47, 118)/Image
number indicator (p. 118) (DCR-IP7BT
only)
qj Remaining tape indicator (p. 35)/
Memory playback indicator (p. 138)
qk END SEARCH indicator (p. 38)
ql MPEG IN indicator (p. 88)
w; Data file name indicator (p. 132) (DCR-
IP7BT only)
This indicator appears when the
MEMORY MIX functions work. /Time
indicator
wa Multi screen mode indicator (p. 119)
