25 US
C:\Documents and
Settings\pc13\Desktop\JC060000_2662260114DG600_US\2662260116\US03CON_STR-DG600-
U.fm masterpage: Right
model name [STR-DG600]
2-662-260-11 (6)
Gettin
g
Sta
rted

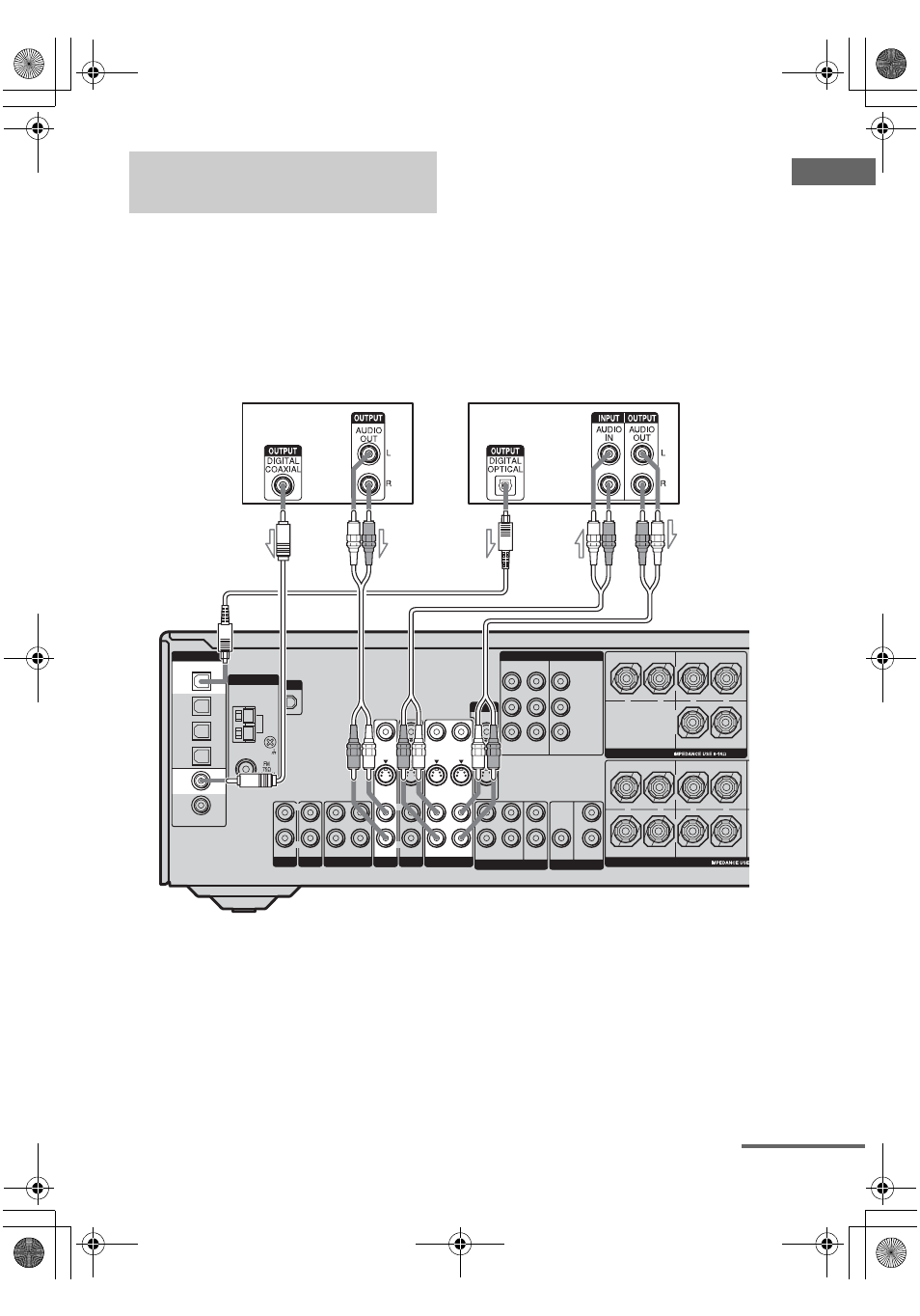

The following illustration shows how to
connect a DVD player/DVD recorder.
It is not necessary to connect all the cables.
Connect audio and video cords according to
the jacks of your components.
1 Connecting audio
Notes
• To input multi channel digital audio from the DVD
player, set the digital audio output setting on the
DVD player. Refer to the operating instructions
supplied with the DVD player.
• When connecting optical digital cords, insert the
plugs straight in until they click into place.
• Do not bend or tie optical digital cords.
Tip
All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
Hooking up a DVD player/DVD
recorder
XM
ANTENNA
AM
DVD
IN
VIDEO 2
IN
MONITOR
OUT
COMPONENT VIDEO
Y
ASSIGNABLE
P B /C B
/B–Y
P R /C R /R–Y
SURROUND BACK
R
L CENTER
+ – + –
SPEAKERS
SURROUND FRONT A
R R
L L
+ – + –
SPEAKERS SA-CD/CD MD/TAPE
OUT
L
R
IN
L
R
AUDIO IN IN
AUX
IN
VIDEO OUT
S-VIDEO
OUT
VIDEO IN
VIDEO 2
AUDIO IN
S-VIDEO
IN
VIDEO 1
AUDIO OUT
S-VIDEO
OUT
VIDEO IN
S-VIDEO
IN
L
R
MONITOR
L
R
SURROUND
SUB
WOOFER
SUB
WOOFER
CENTER
FRONT
L
R
SURROUND
PRE OUT
L
R
MULTI CH IN
VIDEO IN
DVD
AUDIO IN
S-VIDEO
IN
DIGITAL
VIDEO 1
IN
VIDEO 2
IN
MD/
TAPE
IN
MD/
TAPE
OUT
DVD
IN
SA-CD/
CD
IN
COAXIAL
OPTICAL
VIDEO OUT
DVD player
A B
A Coaxial digital cord (not supplied)
B Audio cord (not supplied)
C Optical digital cord (not supplied)
DVD recorder
C
B
continued
