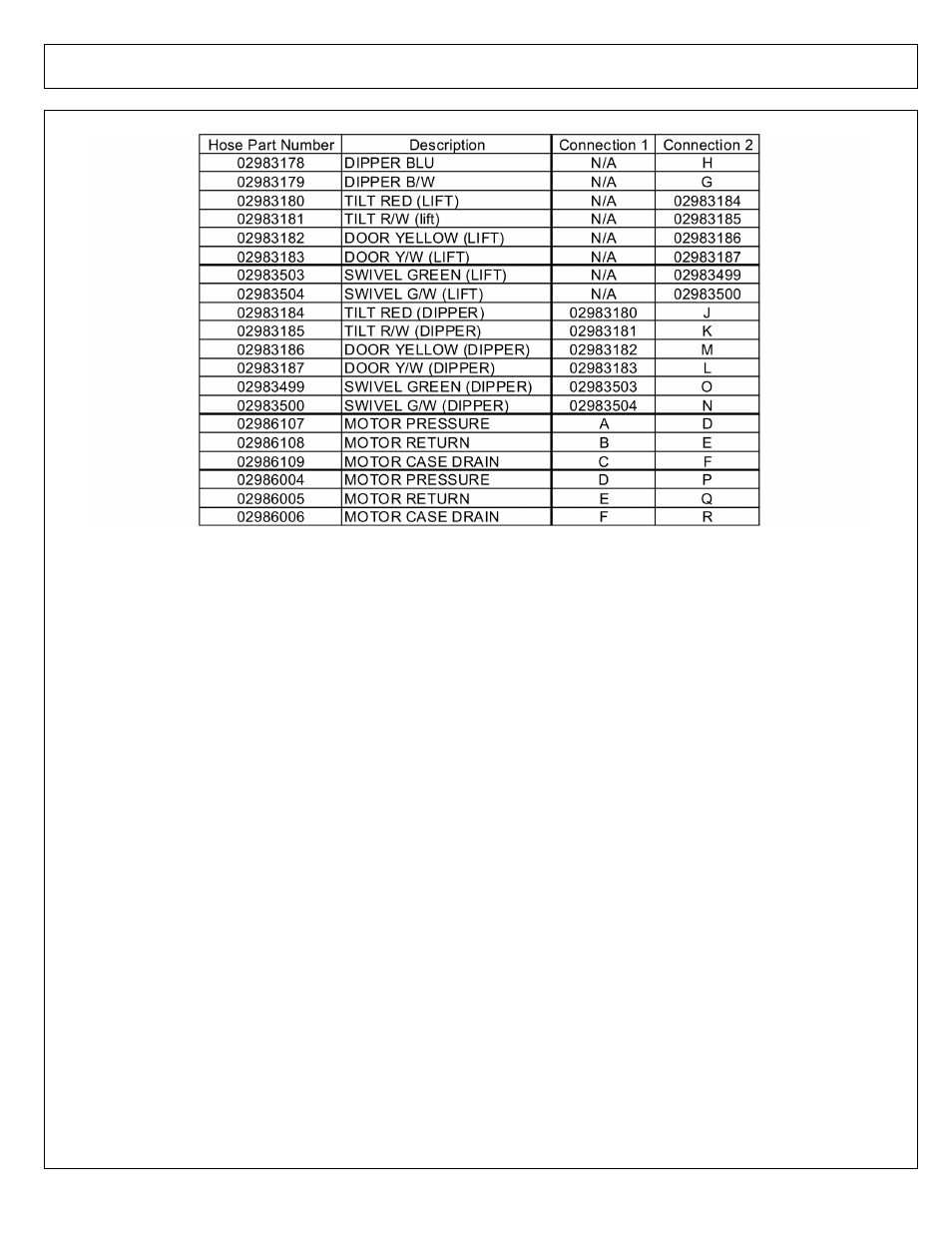

HOSE ROUTING - 22 FT BOOM NOTES
ITEM PART NO. QTY. DESCRIPTION
1 02983178 1 HOSE #6-6FJX-6MJ-108LG
2 02983179 1 HOSE #6-6FJX-6MJ-108LG
3 02983180 1 HOSE #6-6FJX-6MJ-94LG
4 02983181 1 HOSE #6-6FJX-6MJ-94LG
5 02983182 1 HOSE #4-4FJX-4MJ-94LG
6 02983183 1 HOSE #4-4FJX-4MJ-94LG
7 02983503 1 HOSE #4-4FJX-4MJ-94LG
8 02983504 1 HOSE #4-4FJX-4MJ-94LG
9 02983184 1 HOSE #6-6FJX-6MJ-140LG
10 02983185 1 HOSE #6-6FJX-6MJ-140LG
11 02983186 1 HOSE #4-4FJX-4MJ-140LG
12 02983187 1 HOSE #4-4FJX-4MJ-140LG
13 02983499 1 HOSE #4-4FJX-4MJ-140LG
14 02983500 1 HOSE #4-4FJX-4MJ-140LG
15 02986107 1 HOSE #16-16FJX-16FJX-62LG
16 02986108 1 HOSE #16-16FJX-16FJX-62LG
17 02986109 1 HOSE #12-12FJX-12FJX-62LG
18 02986004 1 HOSE #16-16FJX-16FJX90-69-7/8
19 02986005 1 HOSE #16-16FJX-16FJX90-65-1/2
20 02986006 1 HOSE #12-12FJX-12FJX90-69-1/8
21 02986798 1 CORDURA SLEEVE, 3.66ID, 58LG
22 02982334 1 CORDURA SLEEVE, 2.54ID, 10LG
23 02983079 1 SLEEVE 66" CORDURA 2.54 ID
24 02986797 1 CORDURA SLEEVE, 2.54ID, 14LG
©2012 Alamo Group Inc. Parts Section -94
Machete 2 HF (11-08) Rev 02-12
