(SETTINGS) 
[OUTPUT SETTINGS]
 [TV TYPE] 
[16:9]/[4:3] * (p. 78)
Notes
When the S VIDEO plug (S VIDEO channel) is connected, audio signals are not output. To output audio
signals, connect the white and red plugs to the audio input jack of your TV.
This connection produces higher resolution images compared with the A/V connecting cable (Type ).
(SETTINGS) 
[OUTPUT SETTINGS]
 [TV TYPE] 
[16:9]/[4:3] * (p. 78)
* Set [TV TYPE] according to your TV.
When connecting to your TV via a VCR
Connect your camcorder to the LINE IN input on the VCR using the A/V connecting cable.
Set the input selector on the VCR to LINE (VIDEO 1, VIDEO 2, etc.).
When your TV is monaural (When your TV has only one audio input jack)
Connect the yellow plug of the A/V connecting cable to the video input jack and connect the
white (left channel) or red (right channel) plug to the audio input jack of your TV or VCR.
Notes
When the A/V connecting cable is used to output images, images are output with standard definition
image quality (SD).
Tips
If you connect your camcorder to the TV using more than one type of cable to output images, the order
of priority of the TV input jacks is as follows:
HDMI  component  S VIDEO  video
HDMI (High Definition Multimedia Interface) is an interface to send both video/audio signals. The
HDMI OUT jack outputs high quality images and digital audio.









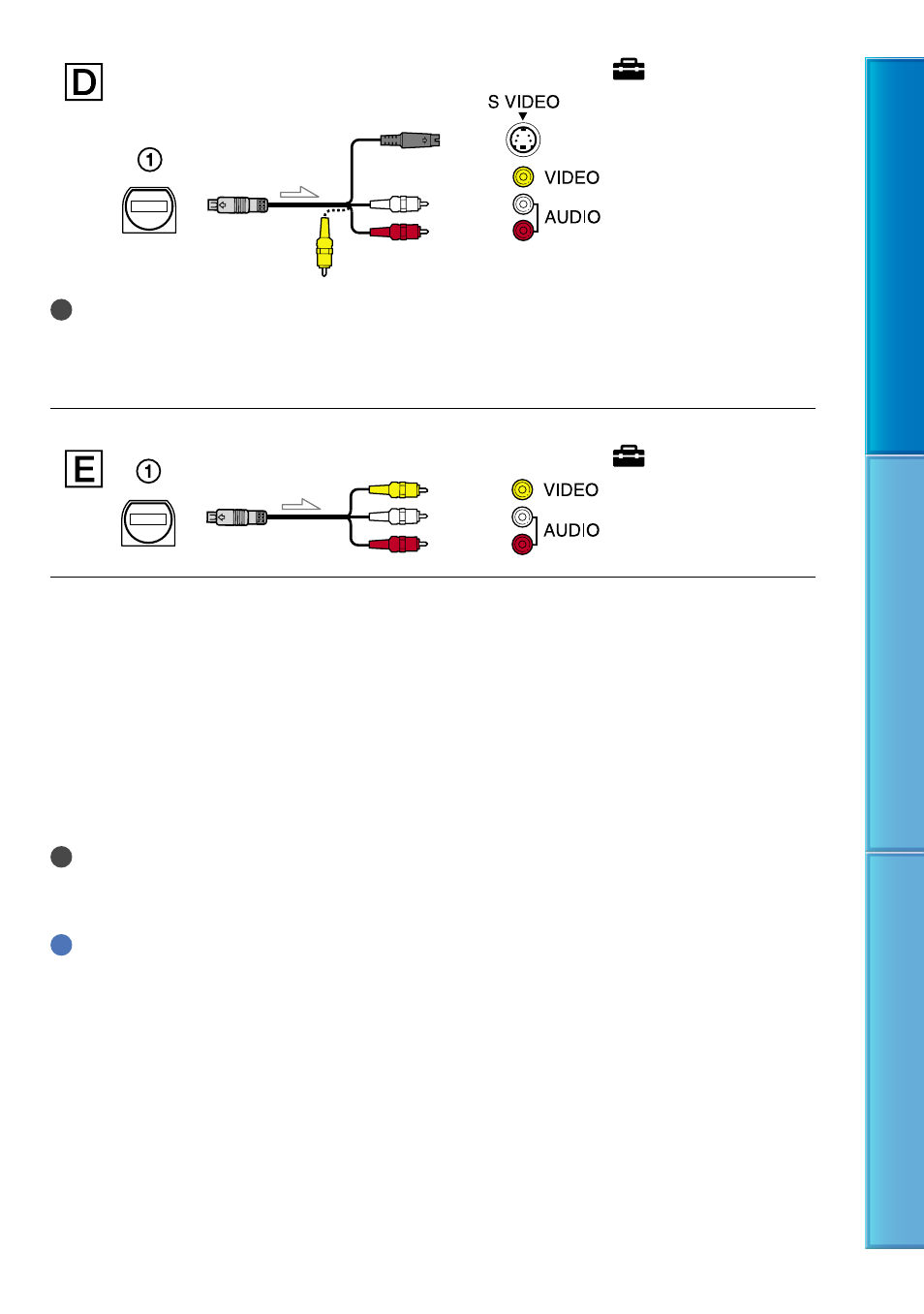

A/V connecting cable with
S VIDEO (sold separately)
(White)
(Red)
(Yellow)
(White)
(Red)
(Yellow)
A/V connecting cable
(supplied)
