Using Peripheral Devices >
Connecting a Docking Station
Locating Ports on the Docking Station
!
The docking station can be powered only through the AC adapter supplied with the docking station. Do not unplug the AC adapter from the docking
station and the AC outlet while using the docking station. This may cause data damage or hardware malfunctions.
Simultaneous use of the HDMI output port on your computer and the DVI-D port or the MONITOR port on the docking station is not possible.

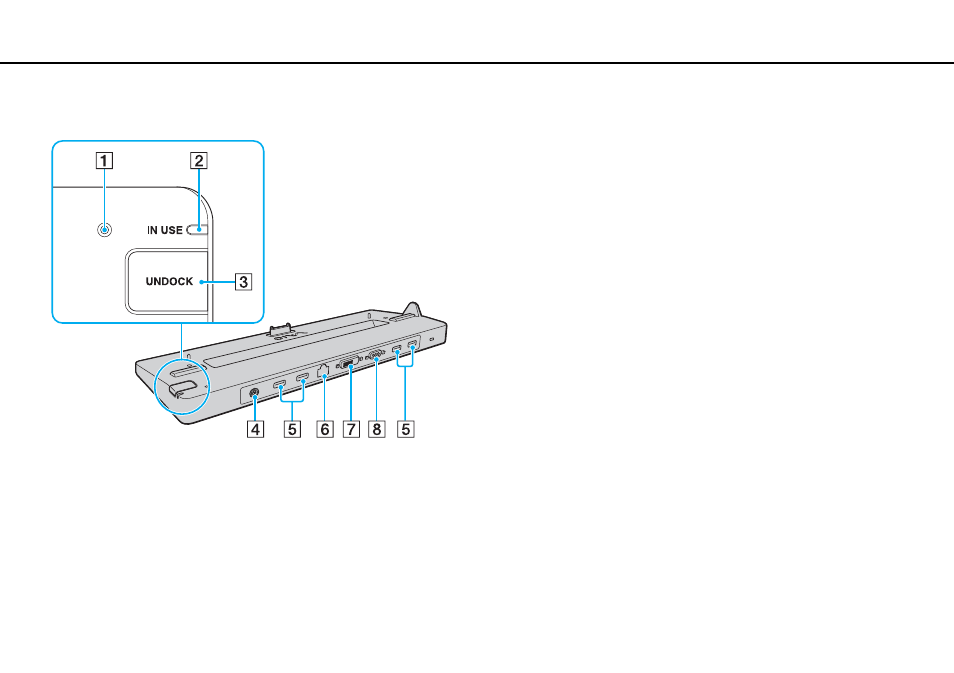

A
DC IN indicator
Illuminates while the docking station is powered.
B
IN USE indicator
C
D
DC IN port
E
USB ports
*1
F
Network (LAN) port (1000BASE-T / 100BASE-TX / 10BASE-T)
G
DVI-D port
*2
H
MONITOR port
*1
Compliant with the USB 2.0 standard and support high-/full-/low- speeds.
*2
Functional only on models with the NVIDIA video controller.
