DVD Player with
Component
Video Connectors For best results, use this connection if your DVD player has
component video (Y, P
B , P R ) jacks.

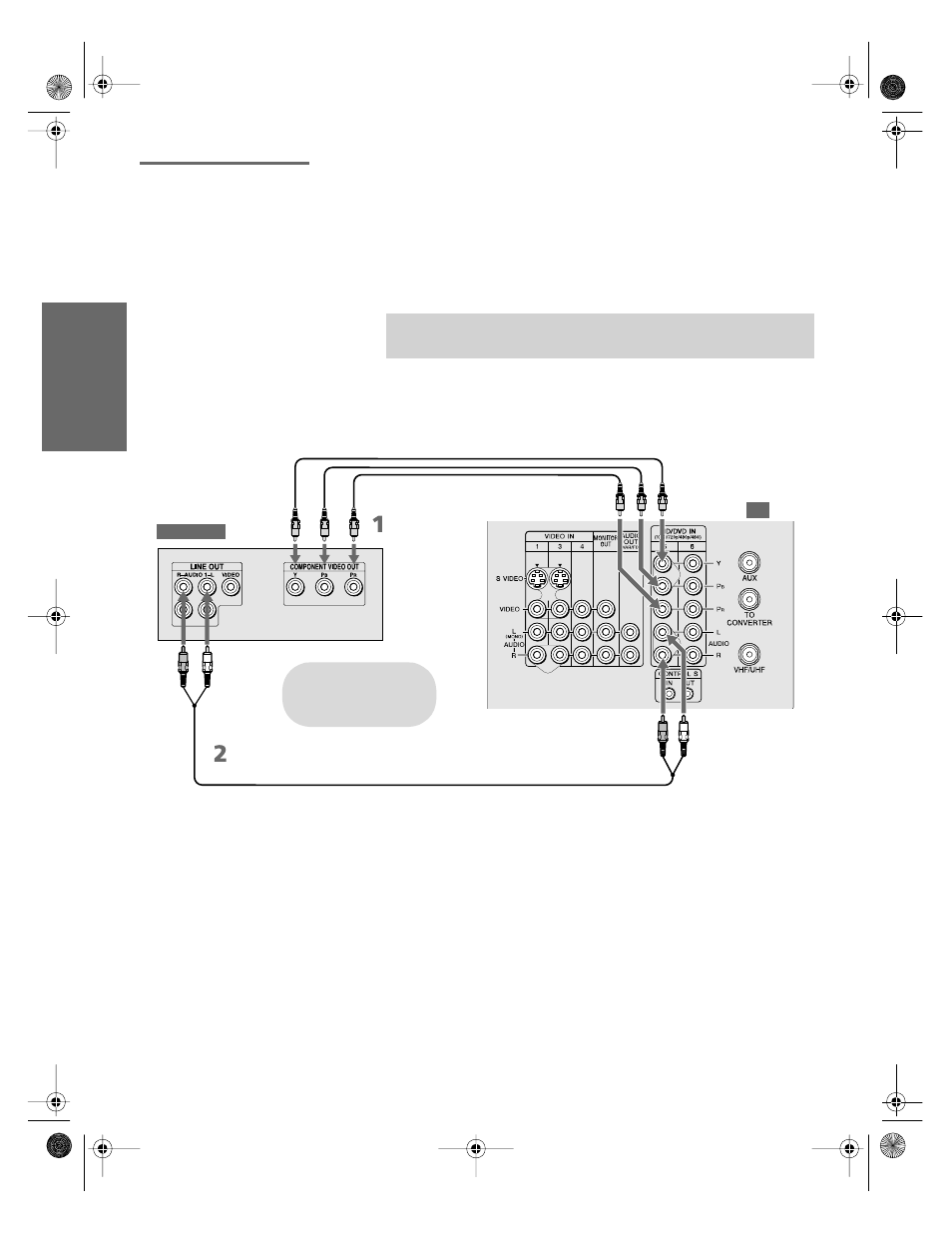

To connect a DVD player with component video connectors
1 Use three separate component video cables to connect the
DVD player’s Y, P
B
and P
R
jacks to the Y, P
B
and P
R
jacks
(VIDEO 5) on the TV.
2 Use an audio cable to connect the DVD player’s audio output
jacks to the TV’s VIDEO 5 audio input jacks.
✍
The Y, P B and P R jacks on your DVD player are sometimes labeled Y,
C B and C R , or Y, B-Y and R-Y. If so, connect the cables to like colors.
Component video cables
Audio cable
TV
DVD player
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
