Connecting Optional Equipment
Use the directions in this section to connect the following optional
equipment:
About Using
S VIDEO If the optional equipment you are connecting has an S VIDEO
jack (shown at left), you can use an S VIDEO cable for
improved picture quality (compared to an A/V cable).
Because S VIDEO carries only the video signal, you also need
to connect audio cables for sound, as shown below.

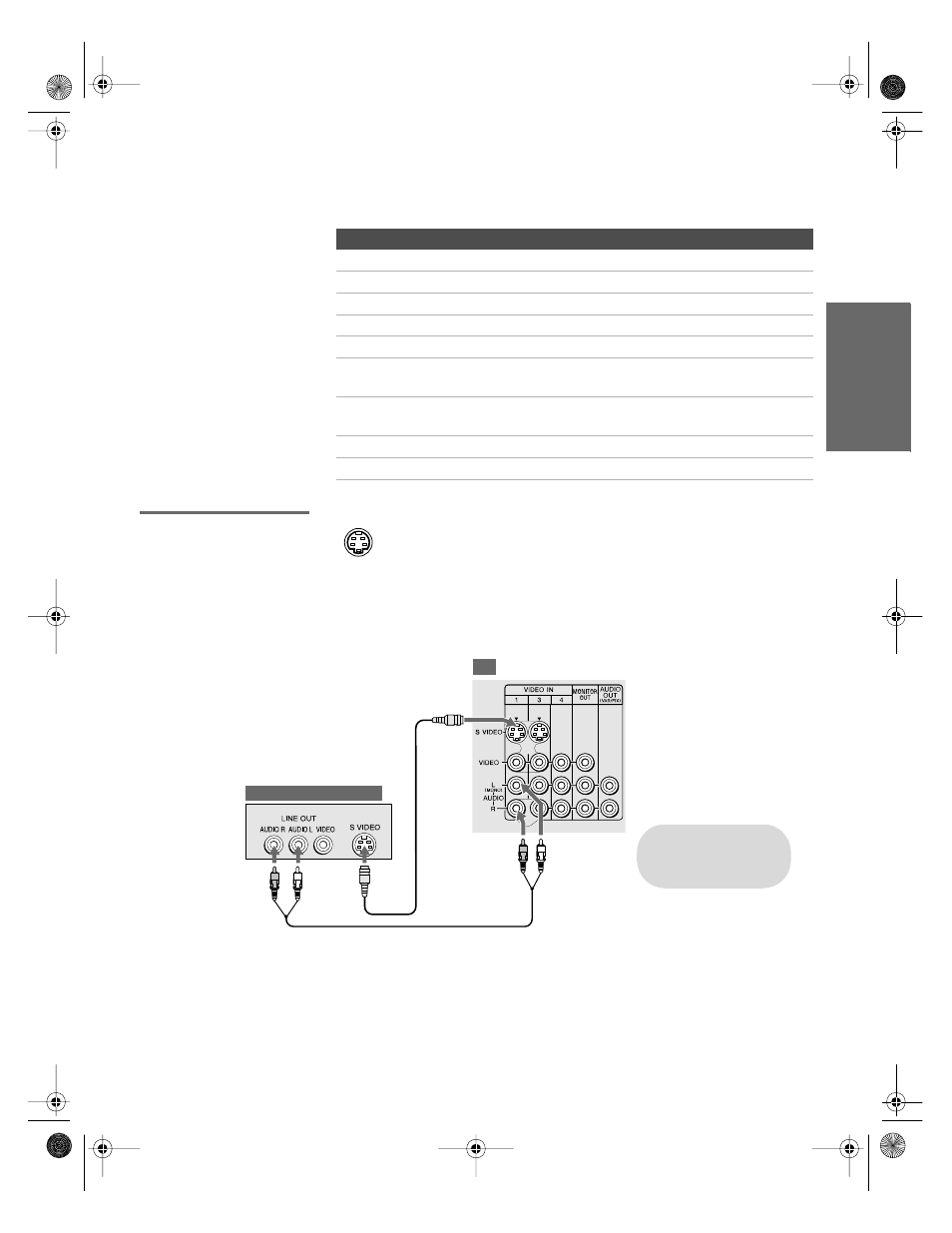

Example of an S VIDEO Connection
If You Are Connecting See Page
VCR and Cable 22
VCR and Cable Box 24
Two VCRs for Tape Editing 26
Satellite Receiver 28
Satellite Receiver and VCR 30
DVD Player with Component Video
Connectors 32
DVD Player with S VIDEO and Audio
Connectors 34
Camcorder 35
Audio Receiver 36
Audio cable
S VIDEO
cable
TV
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
