Satellite Receiver

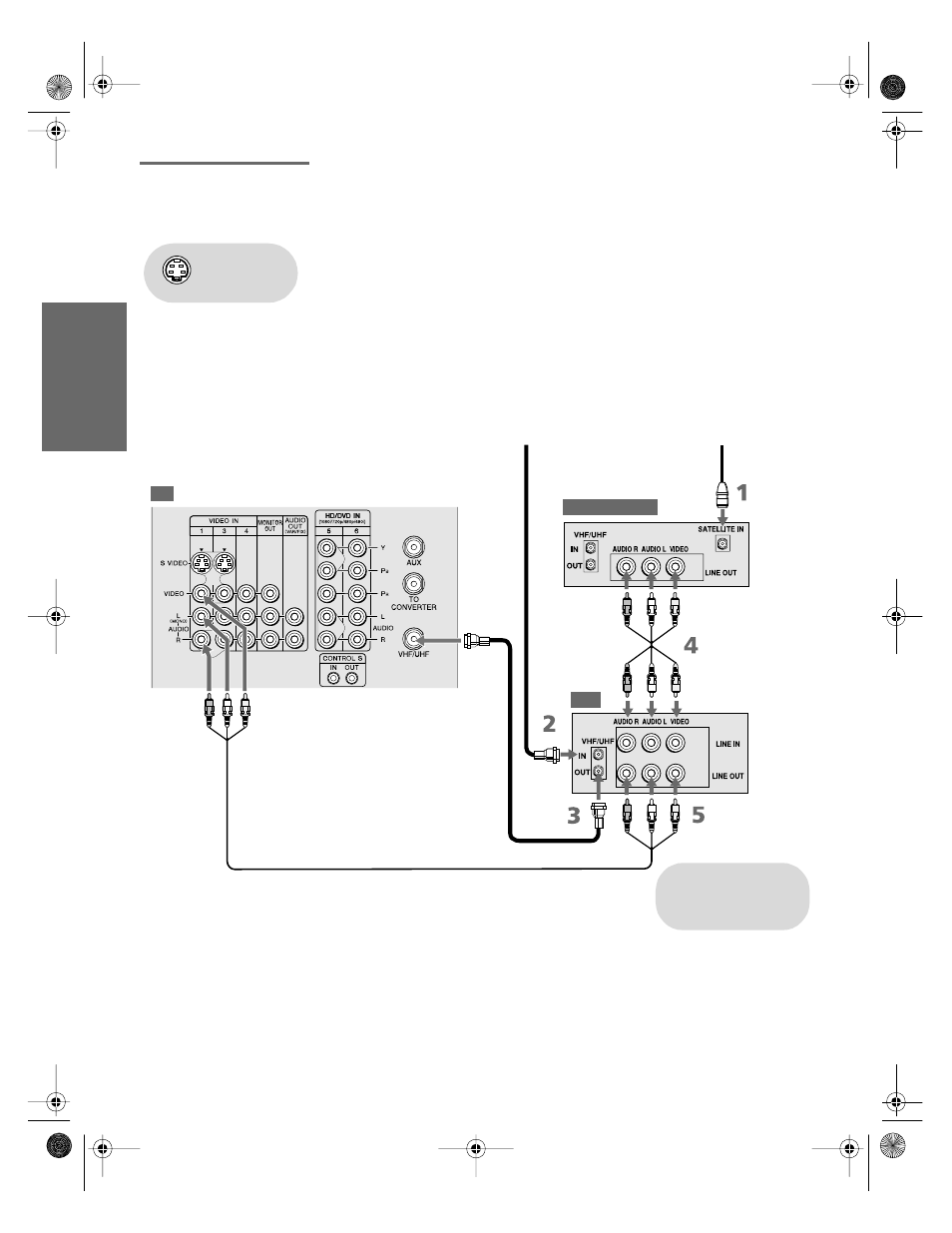

and VCR To connect a satellite receiver and VCR
1 Connect the satellite antenna cable to the satellite receiver’s
satellite input jack.
2 Connect the CATV cable to the VCR’s VHF/UHF input jack.
3 Use a coaxial cable to connect the VCR’s VHF/UHF output jack
to the TV’s VHF/UHF jack.
4 Use an A/V cable to connect the satellite receiver’s A/V output
jacks to the VCR’s A/V input jacks.
5 Use an A/V cable to connect the VCR’s A/V output jacks to the
TV’s A/V input jacks.
6 Run the Auto Setup program, as described in “Setting Up the
Channel List” on page 38.
Using
S VIDEO jacks?
See page 21.
A/V cable
Coaxial
cable
cable
Satellite antenna
cable
CATV
A/V cable
TV
VCR
Satellite receiver
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
