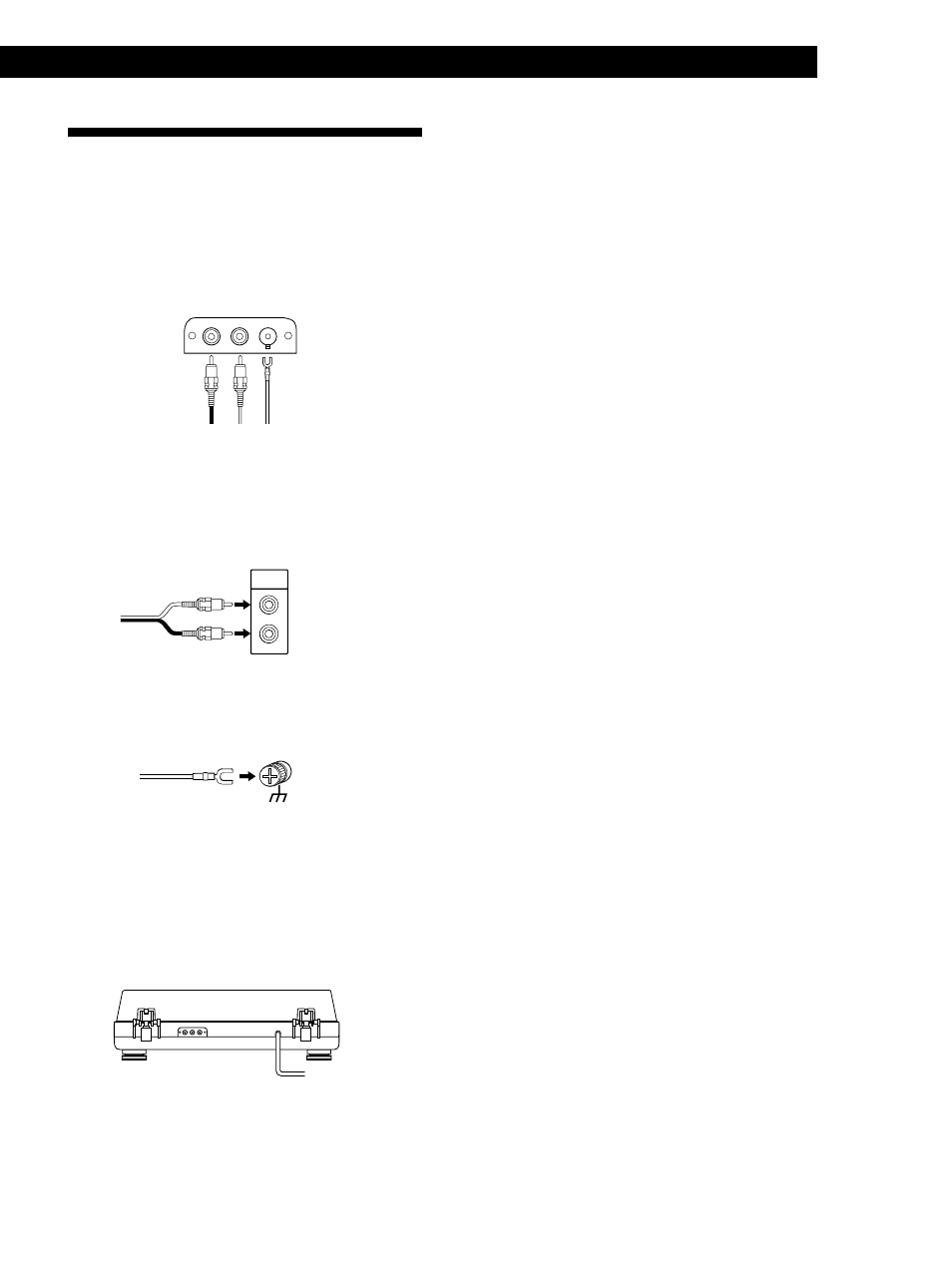

Hooking up the Turntable
1
Connect the supplied audio connecting cord and
earth lead to the output terminals and GND
terminal at the rear. Be sure to connect the red
plug to the R output jack and the white plug to
the L output jack.
2
Connect the cord with the red plug to the lower
PHONO IN R input jack on the amplifier and
connect the cable with the white plug to the upper
PHONO IN L input jack.
2
Connect the earth lead to the earth terminals on
the amplifier.
Note
Be sure to connect the earth lead. Failure to do so will result
in a humming noise from the turntable.
Mains lead hookups
Connect the mains lead to an AC wall outlet after
completing all of the previous connections.
/ to a wall outlet
Amplifier
Amplifier
R
L
GND
PHONO
IN
Getting Started
