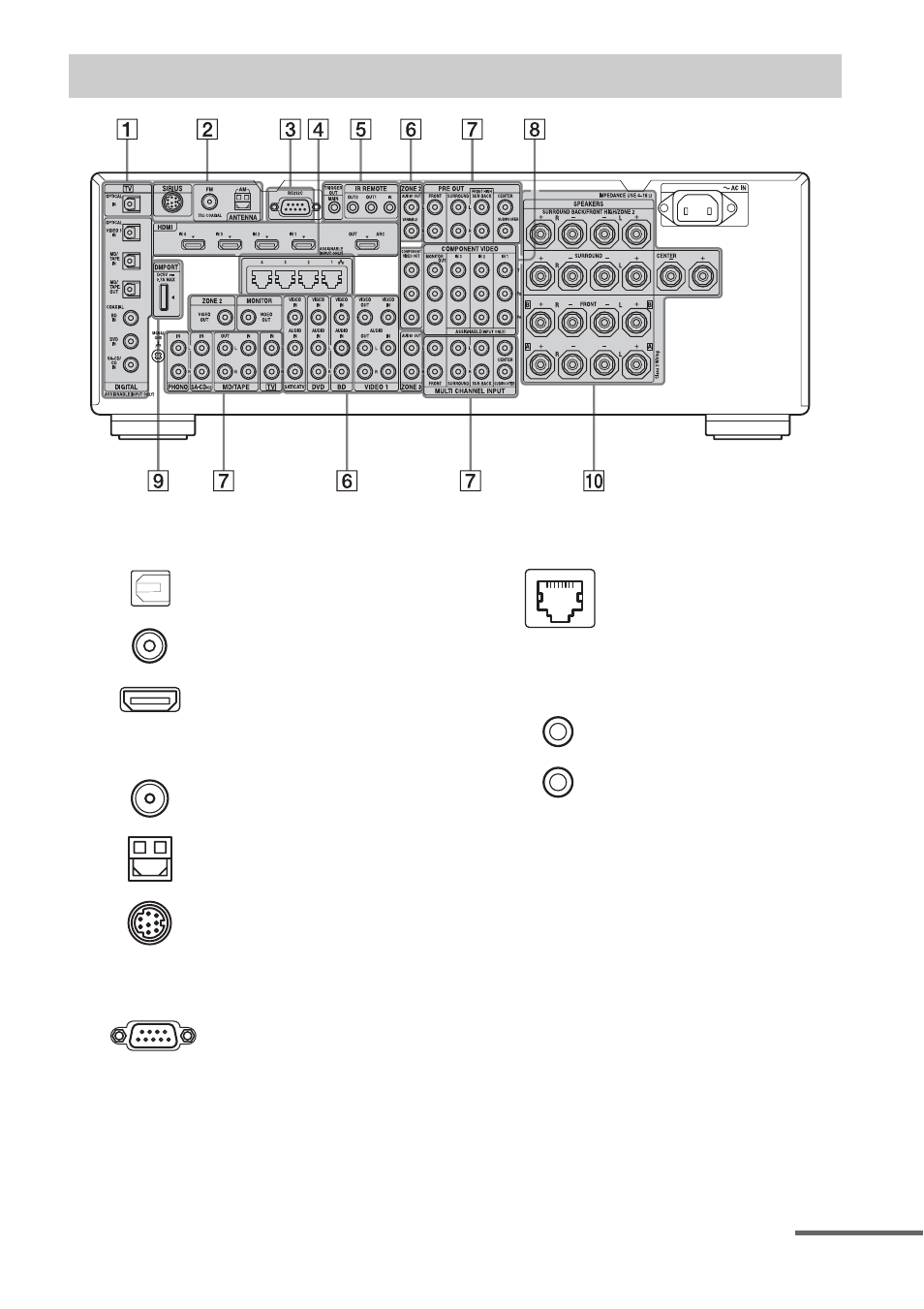

Rear panel
A DIGITAL INPUT/OUTPUT section
OPTICAL IN/OUT jacks
COAXIAL IN jacks
HDMI IN/OUT* jacks
(page 24, 25)
B ANTENNA section
FM ANTENNA jack
(page 39)
AM ANTENNA jack
(page 39)
SIRIUS jack (USA/
Canadian model only)
(page 66)
C RS232C port
Used for maintenance and service.
D LAN ports (switching hubs)
E Control jacks for Sony equipment
and other external components
IR REMOTE IN/OUT
jacks (page 38, 90)
TRIGGER OUT jacks
(page 115)
Connect to interlock on/off of the power
supply of other 12V TRIGGER compliant
components.
continued
