Right – Sony PCG-R505TE User Manual
Page 25

Setting Up Your VAIO® Notebook
25

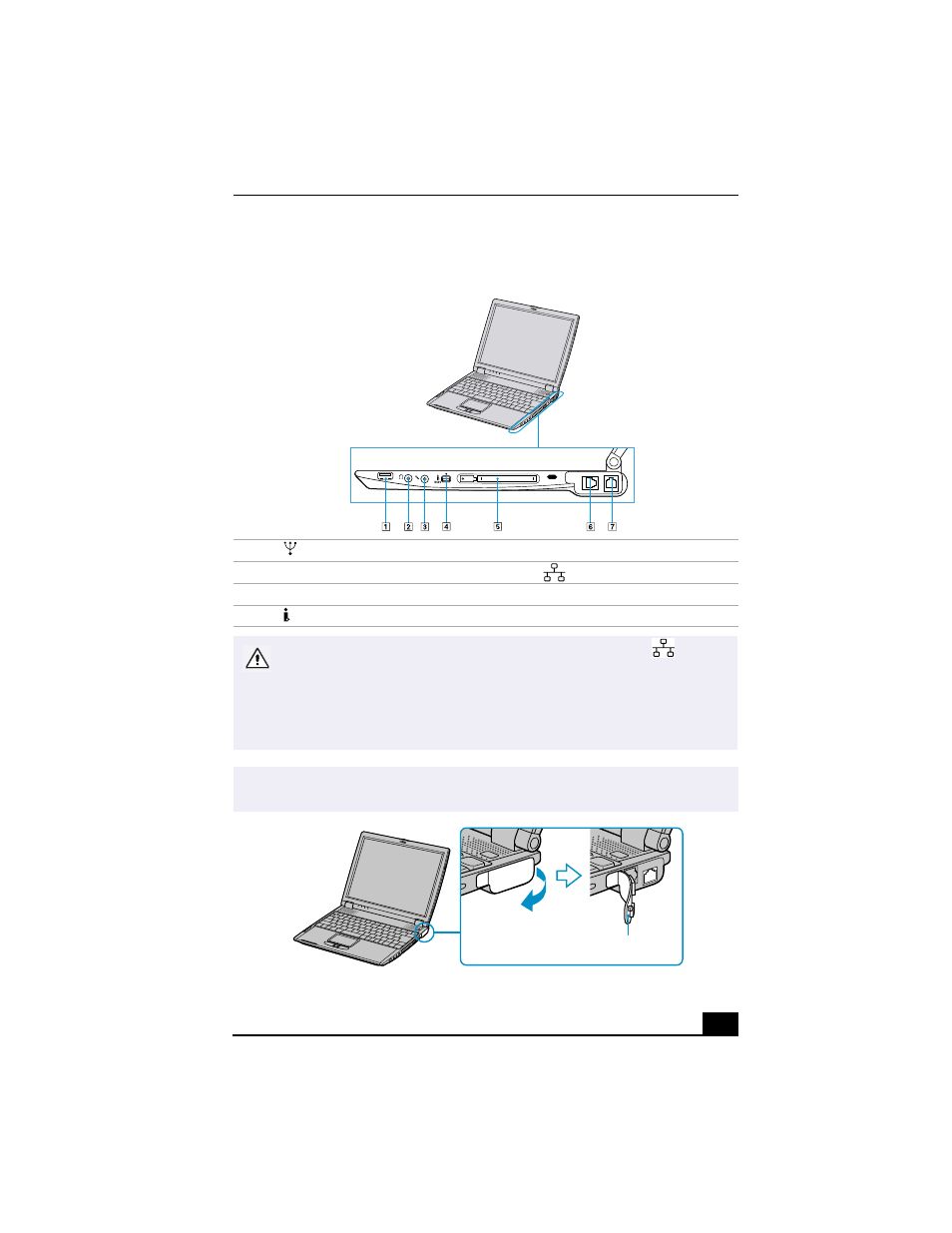

Right
1
USB connector
5
PC card slot
2
Headphone jack
6
Ethernet connector
3
Microphone jack
7
Phone line jack
4
i.LINK® (IEEE1394) S400 connector
Warning: Connect only 10BASE-T and 100BASE-TX cables to the
(Ethernet
network) connector. Do not connect to the Ethernet connector any other type of
network cable or telephone line. Connecting cables other than those listed
above may result in an electric current overload and could cause a
malfunction, excessive heat, or fire in the connector. To connect the unit to the
network, contact your network administrator.
✍
Gently pull the rubber tab away from the notebook to find the ethernet connector and
phone line jack.
Rubber tab
