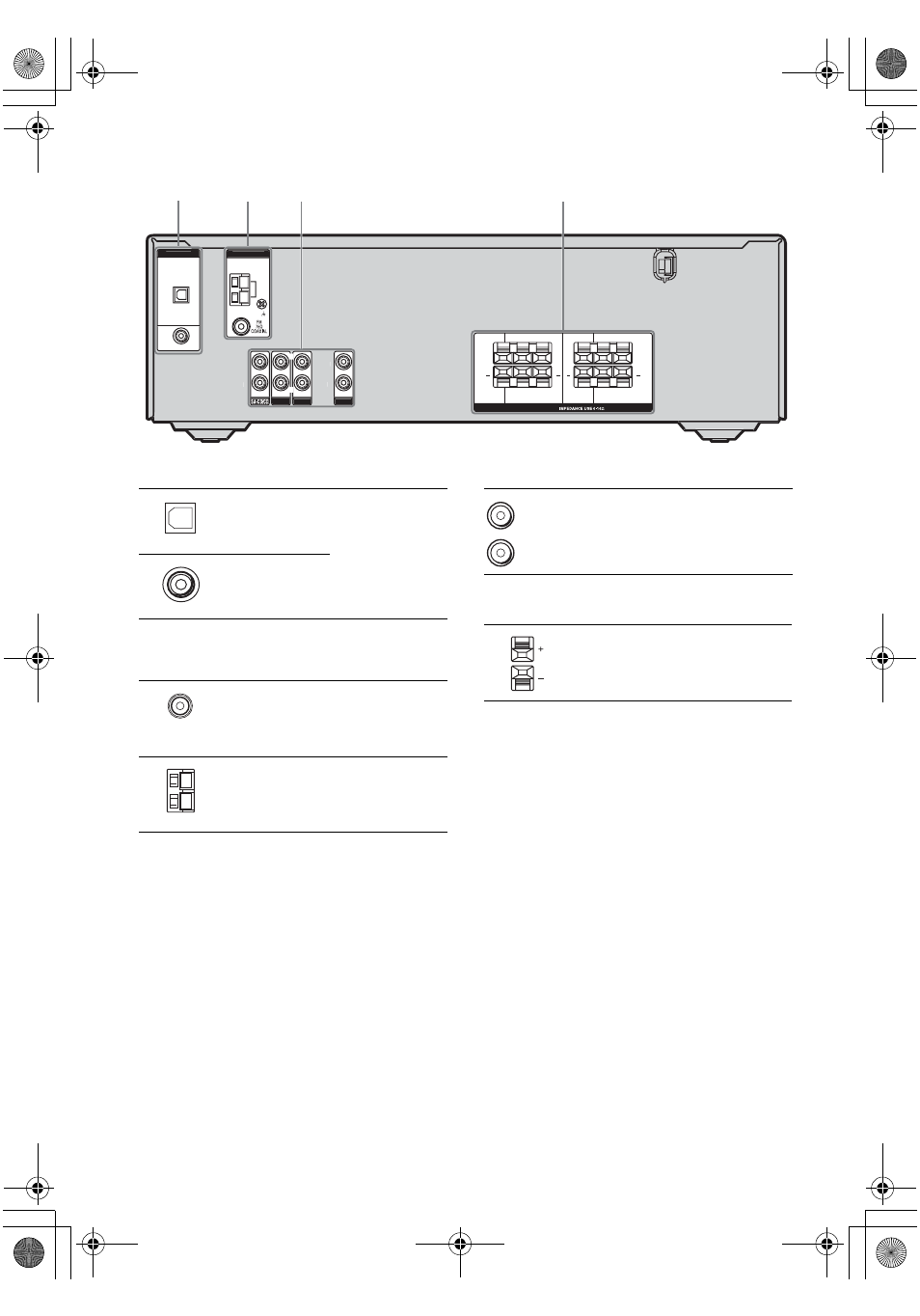

Rear panel
SUB
WOOFER SURROUND
DVD IN
SPEAKERS
S
AUDIO IN
DVD
AUDIO IN
VIDEO 2
AUDIO IN
VIDEO 1
AUDIO IN L R
L R
+ +
DIGITAL
OPTICAL
VIDEO 2
IN
COAXIAL
AM
ANTENNA
CENTER FRONT
L R
L R
+ +
R R
L
L
L
R
1 3 3 4 4 2
A DIGITAL INPUT section
OPTICAL
IN jack Connects to a DVD
player, etc. The
COAXIAL jack
provides a better
quality of loud
sound (page 17).
COAXIAL IN
jack
B ANTENNA section
FM
ANTENNA Connects to the
FM wire antenna
supplied with this
receiver (page 18).
AM
ANTENNA Connects to the
AM loop antenna
supplied with this
receiver (page 18).
C AUDIO INPUT section
AUDIO IN
jack Connects to a CD
player, etc. (page
16).
D SPEAKER section
Connects to the
speakers and sub
woofer (page 14).
White (L)
Red (R)
