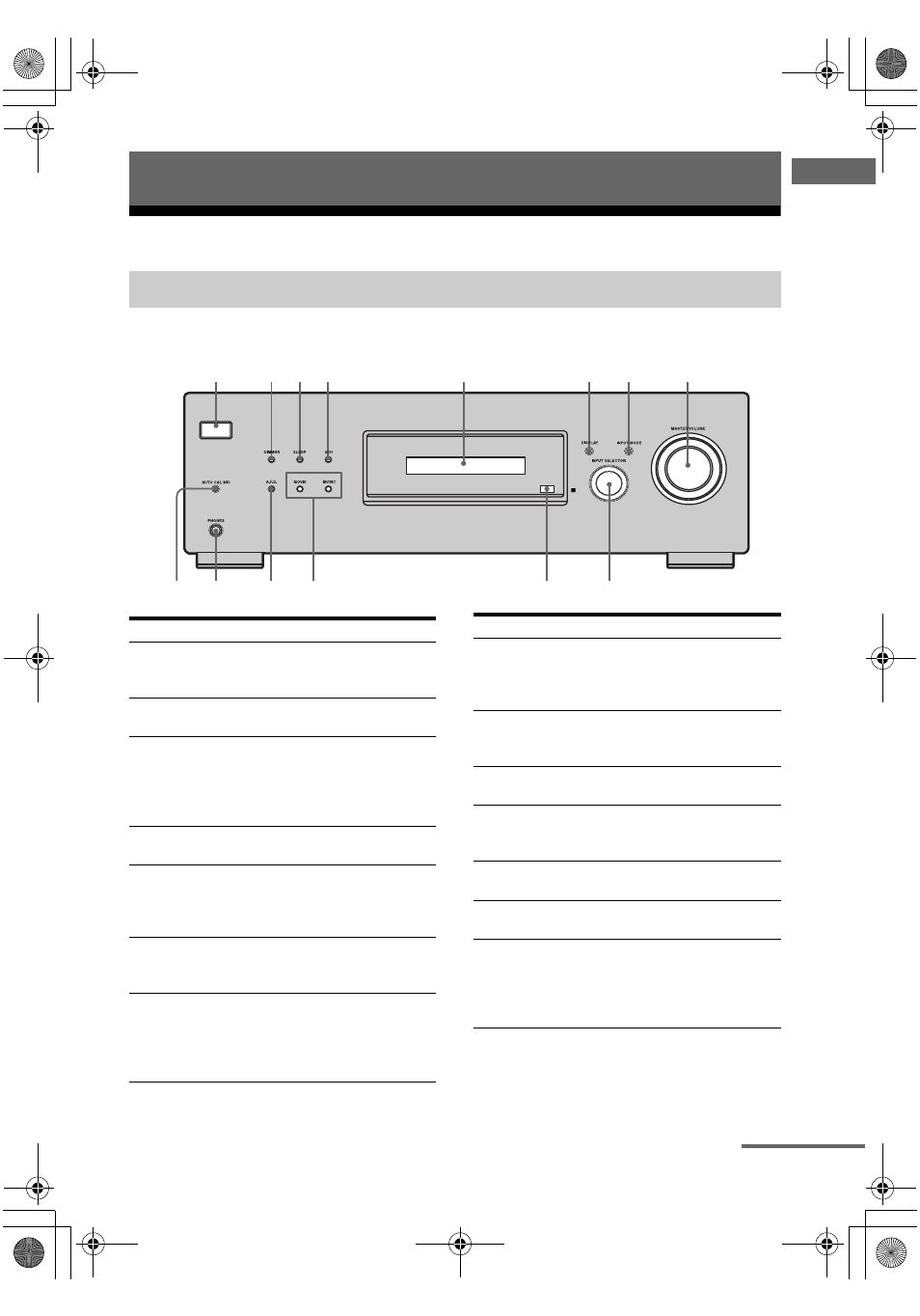

Description and location of parts
Front panel
Getting Started
Receiver
?/1
2 6 7 8
qf qd
3 4 5 1
qs 9 0 qa
Name Function
A ?/1 Press to turn the receiver
on or off (page 19, 26, 27,
42, 56).
B DIMMER Press to adjust the
brightness of the display.
C SLEEP Press to activate the Sleep
Timer function and the
duration which the
receiver turns off
automatically (page 6, 48).
D 2CH Press to select 2CH
STEREO mode (page 34).
E Display The current status of the
selected component or a
list of selectable items
appears here (page 6).
F DISPLAY Press to select information
displayed on the display
(page 48, 54).
G INPUT MODE Press to select the input
mode when the same
components are connected
to both digital and analog
jacks (page 47).
H MASTER
VOLUME
Turn to adjust the volume
level of all speakers at the
same time (page 19, 24,
25, 26, 27).
I INPUT
SELECTOR
Turn to select the input
source to playback (page
25, 26, 27, 44, 47).
J Remote sensor Receives signals from
remote commander.
K MOVIE,
MUSIC
Press to select sound fields
(MOVIE, MUSIC) (page
39).
L A.F.D. Press to select A.F.D.
mode (page 38).
M PHONES jack Connects to a headphone
(page 40).
N AUTO CAL MIC
jack
Connects to the supplied
ECM-AC2 optimizer
microphone for the Auto
Calibration function (page
20).
Name Function
continued
