B. NECKPAD REINSTALLATION
During operation of the monocular, it is possible for the neckpad
to become separated from its position on the headband. Per-
form the following procedures to reinstall the neckpad.
(1)
Lift the upper headband strap retention tab (see Figure
6-1), allowing the neckpad strap to be inserted underneath.
(2)
Slip the neckpad strap all the way under the upper strap
retention tab and then pull the lower part of the neckpad strap
under the lower strap retention tab.
(3)
Repeat steps 1 and 2 for the other side of the headband
and neckpad if necessary.

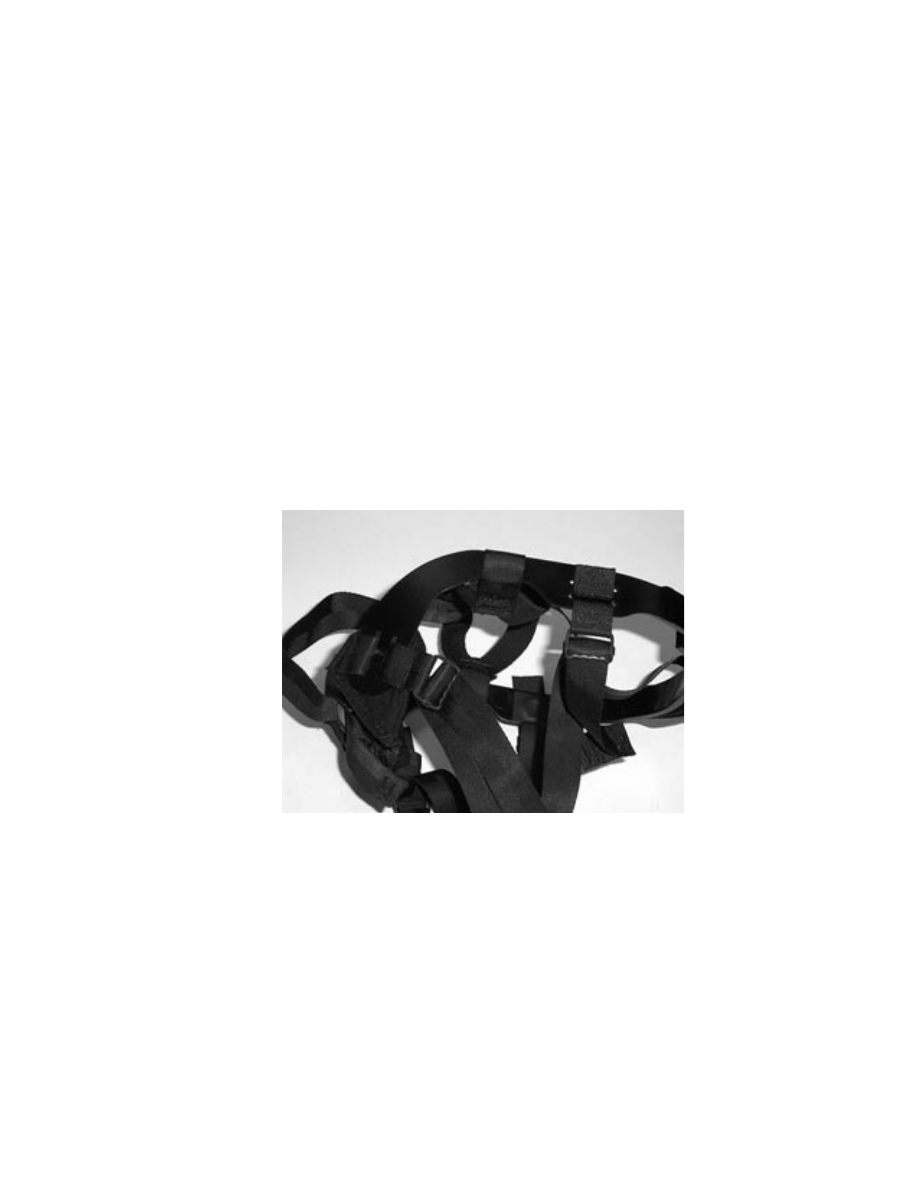

Figure 6-1
Neckpad Reinstallation
