-5-

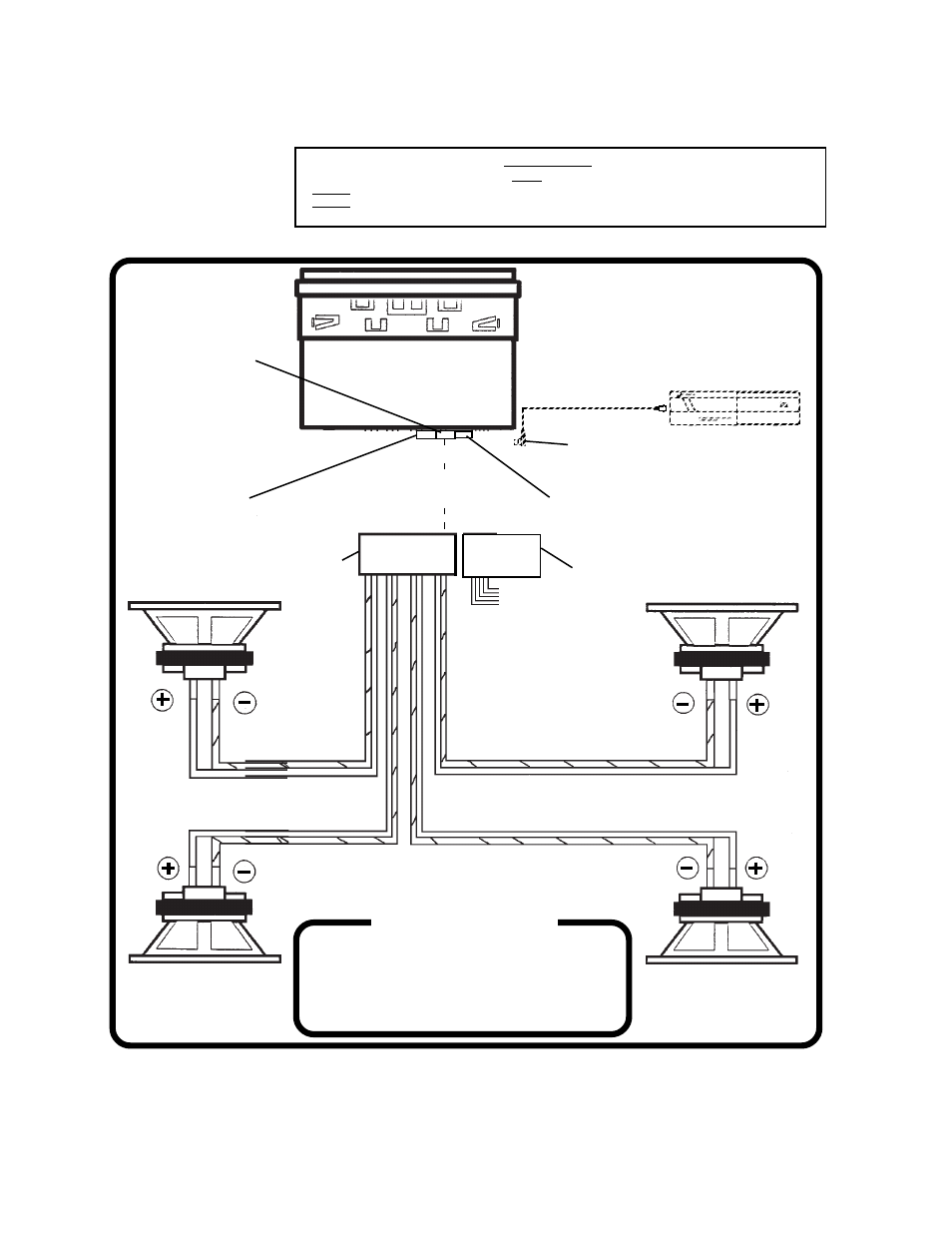

SPE SPE SPE SPE SPE A A A A A K K K K K ER WIRING ER WIRING ER WIRING ER WIRING ER WIRING
REFER TO PAGE 4
FOR RADIO WIRING
l
l
l
l
WARNING!
THE AMPLIFIERS IN THIS RADIO ARE ONLY DESIGNED FOR USE WITH 4 SPEAKERS.
NEVER COMBINE (BRIDGE) OUTPUTS FOR USE WITH 2 SPEAKERS.
NEVER GROUND NEGATIVE SPEAKER LEADS TO CHASSIS GROUND.
FAILURE TO WIRE EXACTLY AS SHOWN BELOW MAY CAUSE ELECTRICAL DAMAGE TO THE RADIO.
WHITE w/BLACK STRIPE GRAY w/BLACK STRIPE
8-PIN PLUG
WHITE
LEFT FRONT SPEAKER RIGHT FRONT SPEAKER
LEFT REAR SPEAKER RIGHT REAR SPEAKER
GREEN
8-PIN PLUG
GREEN w/BLACK STRIPE VIOLET w/BLACK STRIPE
RADIO
HELP!
8:30am - 7:00pm Eastern
9:00am - 5:00pm Eastern
Monday - Friday
Saturday
1-800-645-4994
8-PIN DIN SOCKET FOR CONNECTION TO
CD CHANGER ADAPTER CABLE
DIN CABLE (SUPPLIED
WITH CD CHANGER).
6
CO MPA CT
OPTIONAL CD CHANGER
SEE PAGE 4
FOR RADIO WIRING
NOTE:
CALL 1-800-645-4994 FOR RECOMMENDATIONS
OF MODEL CHANGERS THAT WILL WORK WITH
YOUR RADIO.
GRAY
VIOLET
ISO 8-PIN SOCKET TO 8-PIN DIN
SOCKET CD CHANGER ADAPTER CABLE,
PART NUMBER P956CDC (SUPPLIED) SEE
PAGE 6 FOR DETAILS
ISO 6-PIN SOCKET TO
RCA LOW LEVEL
OUTPUTADAPTER
CABLE, PART
NUMBER P956RCA
(SUPPLIED) SEE
PAGE 6 FOR DETAILS
ISO 8-PIN SOCKET TO
RCA LOW LEVEL AUX
INPUT ADAPTER
CABLE, PART
NUMBER P956AUX
(SUPPLIED) SEE
PAGE 6 FOR DETAILS
8-PIN
CONNECTORS
