Audiovox P-963ESP User Manual

Page 4

-4-

R A

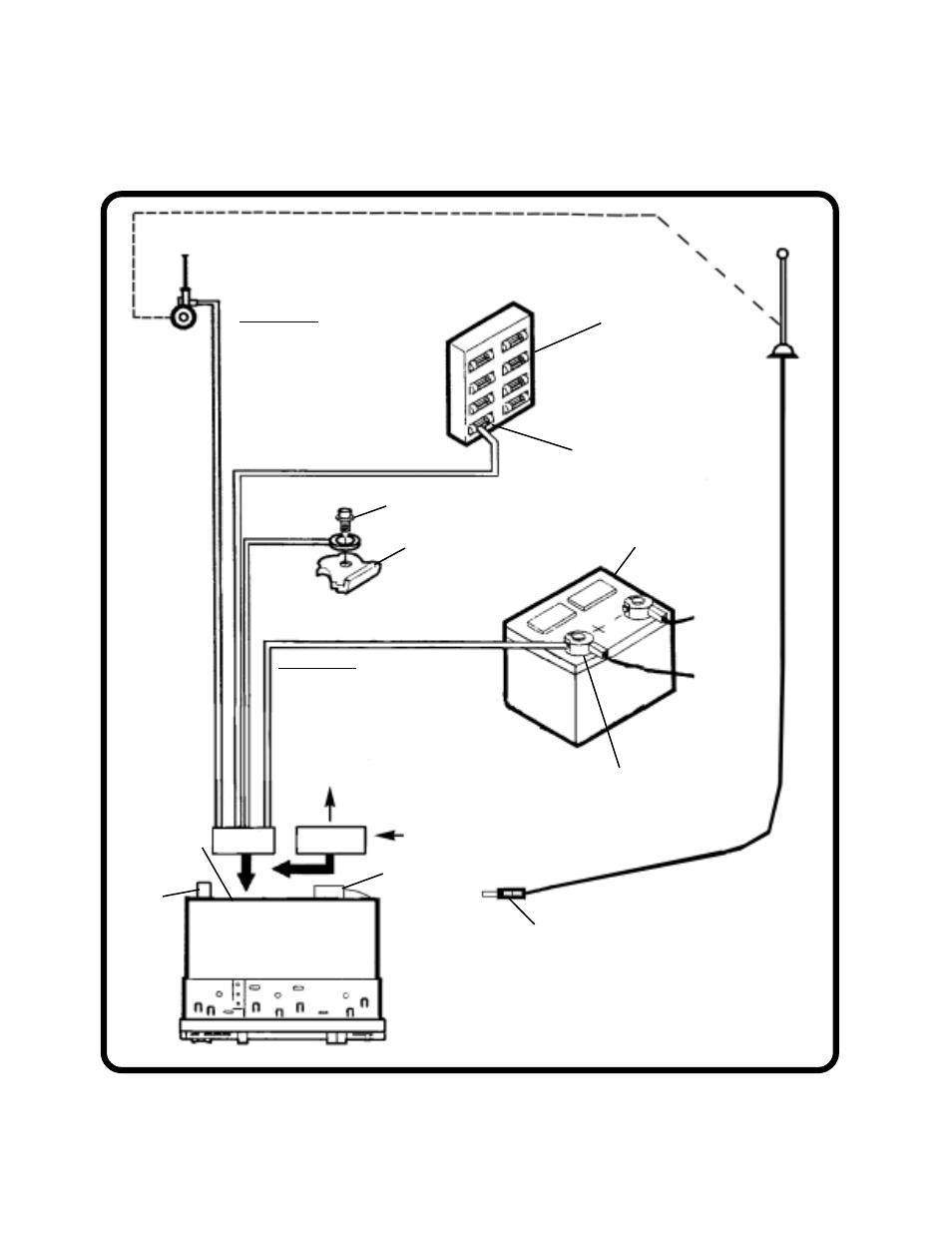

A DIO WIRING

DIO WIRING

REFER TO PAGE 5 FOR SPEAKER WIRING

RADIO

8-PIN CONNECTORS

ANTENNA
CONNECTOR

ANTENNA
PLUG

CAR
BATTERY

VEHICLE
FUSEBLOCK

“RADIO” OR
“ACCESSORY”
FUSE

RED

BLACK

YELLOW

IMPORTANT
THIS WIRE MUST BE CONNECTED
TO A CONSTANT 12-VOLT SOURCE
OR RADIO WILL NOT OPERATE
PROPERLY

TO SPEAKERS (SEE SPEAKER
WIRING DIAGRAM)

SPEAKERS

POWER
ANTENNA

CD CHANGER
CONNECTOR

10-AMP
FUSE

AUTOMATIC
ANTENNA

ANTENNA

BLUE

IMPORTANT
THE BLUE WIRE CAN BE USED
TO REMOTELY ACTIVATE AN
AUTOMATIC ANTENNA OR AN
EXTERNAL AMPLIFIER (SEE
ANTENNA OR AMPLIFIER
MANUAL)

SCREW

METAL PART OF DASH

(DRILL HOLE IF

NECESSARY)

POSITIVE (+) TERMINAL

12-VOLT BATTERY
