Getting Started
>
Connecting the TV
> PC
PC

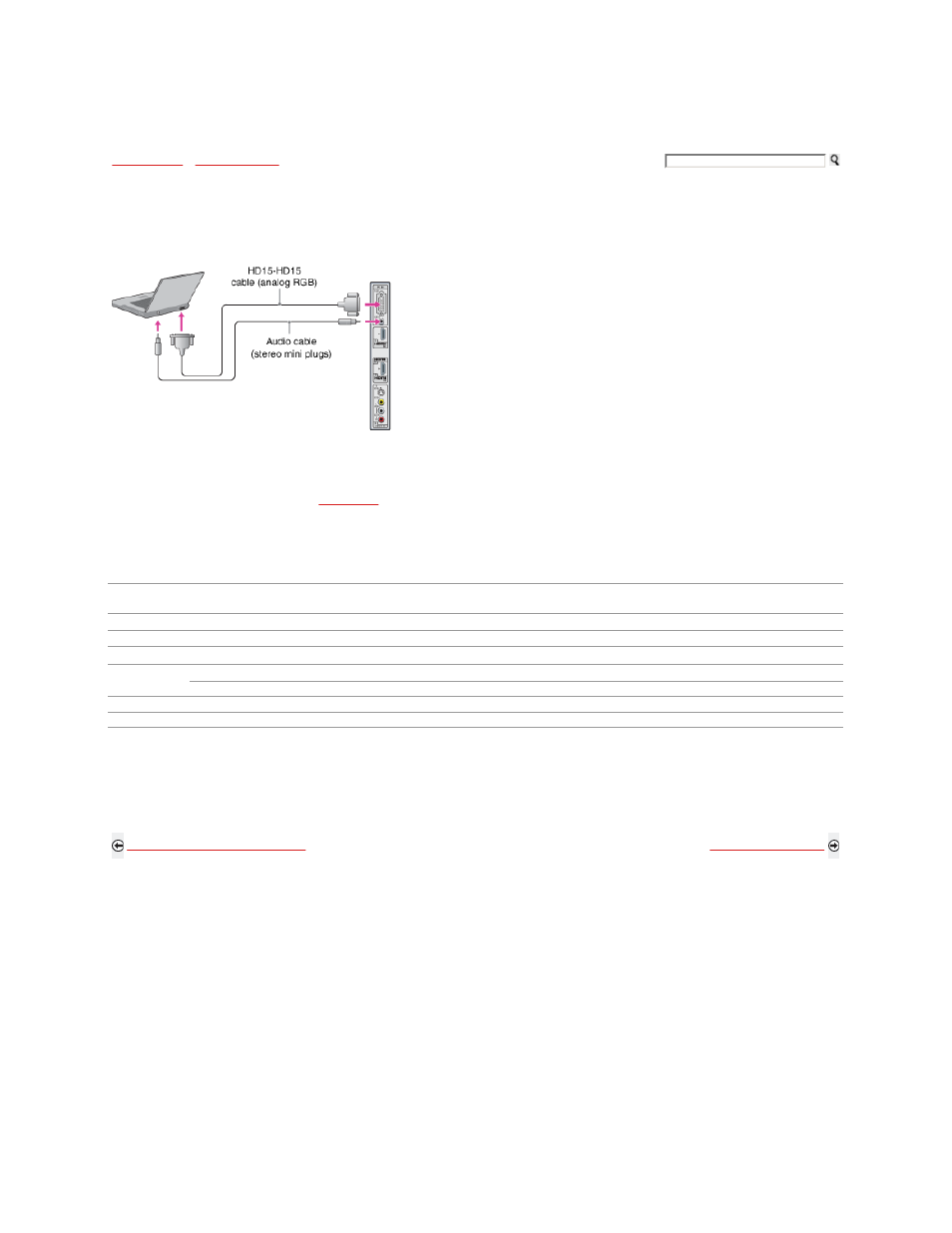

Use the TV as a monitor for your PC by connecting a HD15-HD15 cable as shown below. This TV can also be connected to a PC with a DVI or HDMI output.
(Refer to the separate Quick Setup Guide.)
PC and HDMI Input Signal Reference Chart
After connecting the PC to the TV, set the output signal from the PC according to the supported resolutions and timings indicated below.
Connect the PC IN jack to the PC using an HD15- HD15 cable with ferrite core (analog RGB) and audio cable.
If the PC is connected to the TV and no signal has been input from the PC for more than 5 minutes, the TV enters the standby mode automatically. Refer to
the PC Power Management option under
Setup Menu
.
Supported Resolutions
Horizontal
frequency (kHz)
Vertical
frequency (kHz)
Standard
Signal
Horizontal (Pixel)
x
Vertical (Line)
VGA
640
x
480
31.5
60
VGA
SVGA
800
x
600
37.9
60
VESA Guidelines
XGA
1,024
x
768
48.4
60
VESA Guidelines
WXGA
1,280
x
768
47.8
60
VESA
1,360
x
768
47.7
60
VESA
SXGA
1,280
x
1,024
64.0
60
VESA
HDTV
1,920
x
1,080
67.5
60
CEA-861
This TV’s PC input does not support Sync on Green or Composite Sync.
This TV’s PC VGA input does not support interlaced signals.
Adjust Phase to eliminate horizontal lines of the picture when the TV receives an input signal from the connected PC.
