Getting Started
>
Installing the TV
> Installing the Wall-Mount Bracket
Installing the Wall-Mount Bracket (Page 3)
Installing the Wall-Mount Bracket and Mounting Hooks
4) Disconnect all cables and remove the Table-Top Stand.
5) Install Mounting Hooks on the TV.

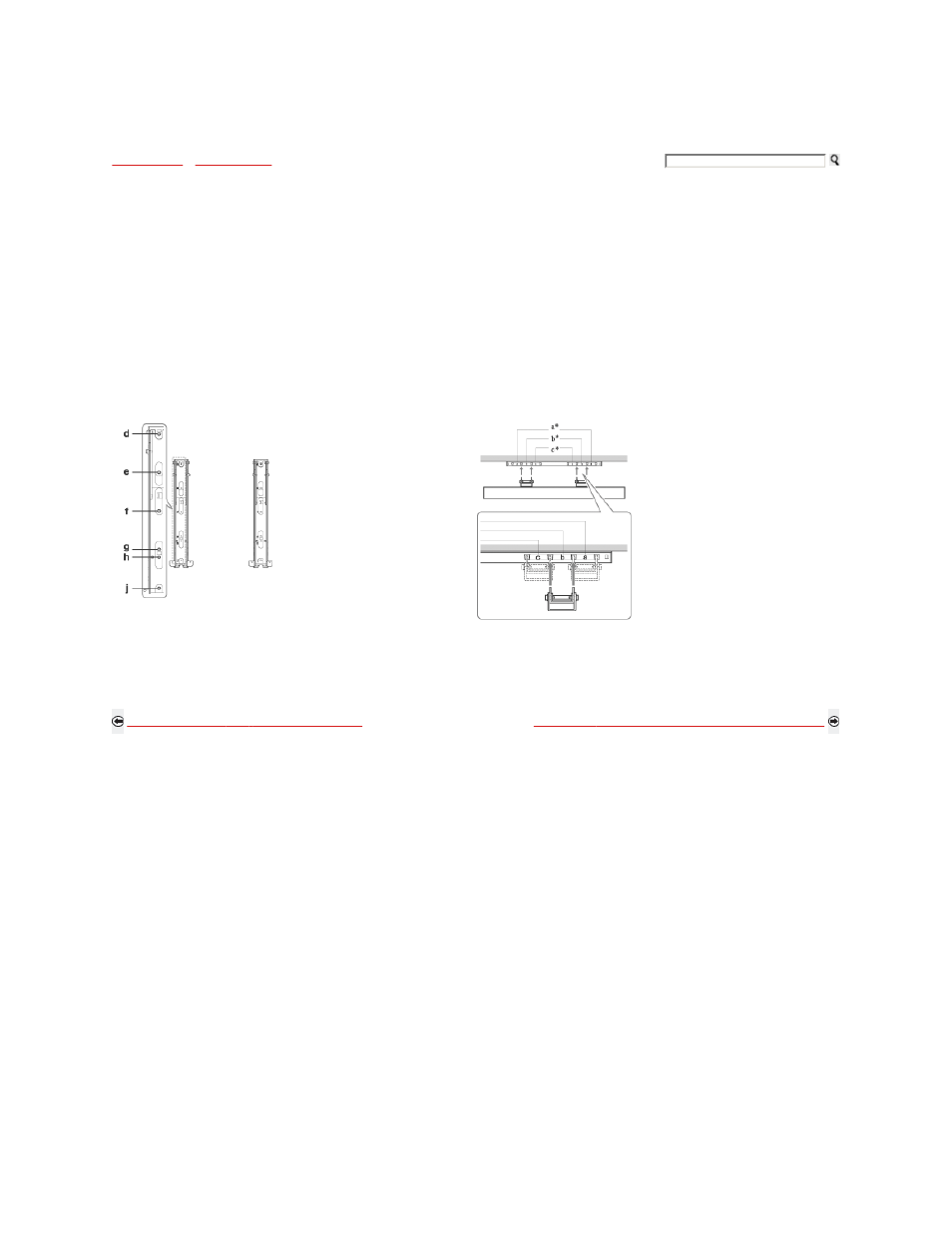

Screw and Hook Locations Diagram
TV Model
Screw Location
Hook location
KDL-32S5100
KDL-40S5100
KDL-46S5100
KDL-52S5100
e, g
c
d, g
b
d, g
b
d, g
b
Screw location
When installing the Mounting Hooks on the TV
Hook location
When installing the TV onto Base Bracket.
* Hook position “a” and “c” cannot be used for the models
KDL-40S5100/KDL-46S5100/KDL-52S5100.
* Hook position “a” and “b” cannot be used for the model KDL-32S5100.
Back to Installing the Wall-Mount Bracket (Page 2)
Next to When Installing the TV Against a Wall or Enclosed Area
