When you make connection A
This connection can transmit both video and audio signals.
• Video signals from the HDMI (IN 1/2) jacks are output to the HDMI (OUT) jack only when
the “HDMI1” or “HDMI2” function is selected.
• To output an audio signal from the HDMI (IN 1/2) jacks to the HDMI (OUT) jack, you may
need to change the audio output setting. For details, see [Audio Output] in [Audio
Settings] (page 57).
When you make connection B , C
Connect the system so that video signals from the system and other equipment are
output to the TV, and audio signals from the equipment are output to the system.
• If you make either connection above, set [Control for HDMI] in [HDMI Settings] of [System
Settings] to [Off] (page 59).
• You can enjoy equipment sound by selecting “TV” function for connection B or “AUDIO”
function for connection C.
A High quality
B
C
Standard quality
Note
Note

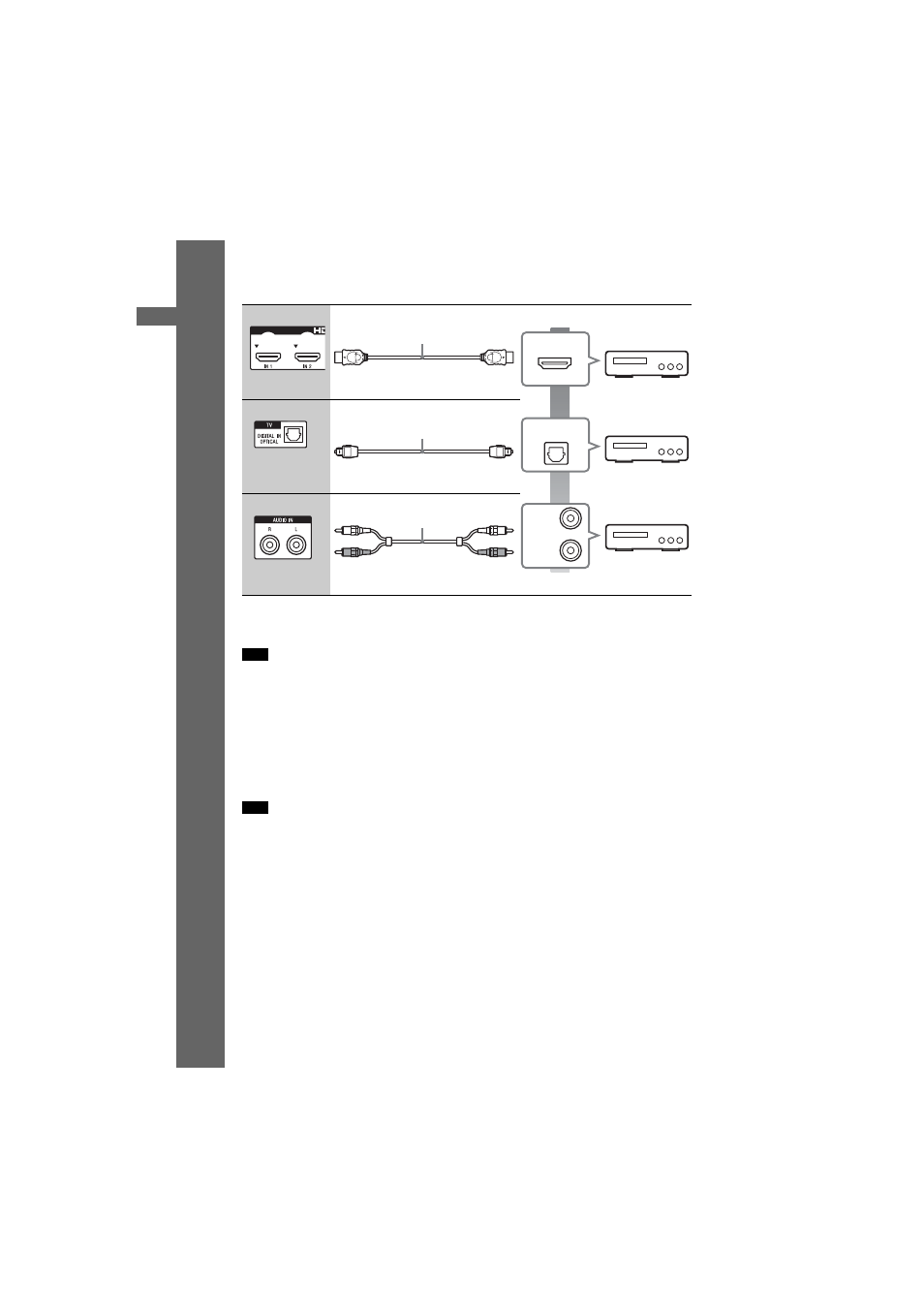

HDMI cable* (not supplied)
* High Speed HDMI cable
OPTICAL
DIGITAL OUT
L
R
AUDIO
OUTPUT
HDMI OUT
Optical digital cord (not supplied)
Audio cable (not supplied)
