30
END VIEW
SHOWING:
Step 17
P30
● Parts Needed For ●
Door Assembly
● ● ● ● ● 10478 Right and Left Doors (2)
● ● ● ● ● 10498 Horizontal Door Brace (4)
● ● ● ● ● 6278 Vertical Door Brace (2)

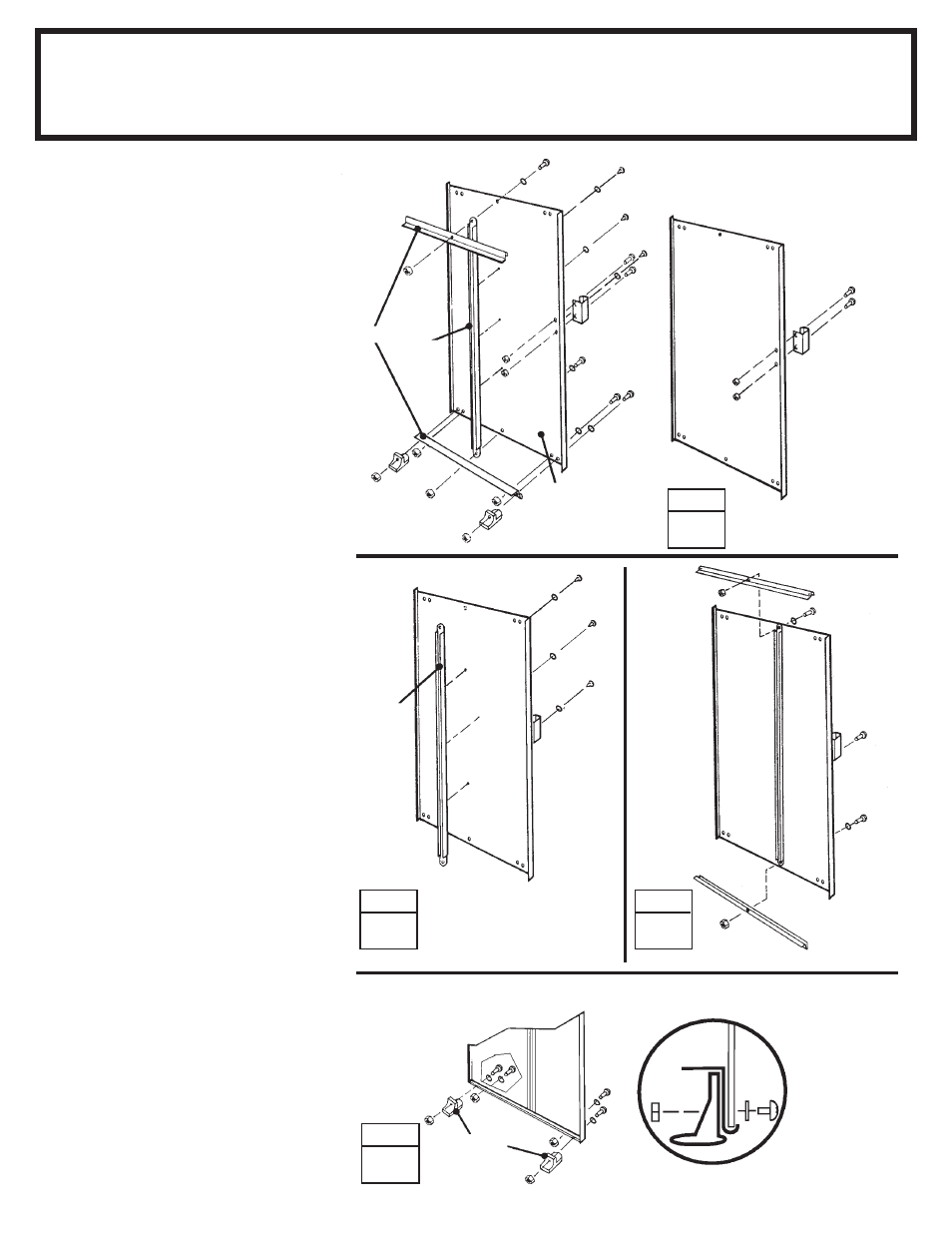

The steps on this page tell how to
assemble the right door. You will
perform exactly the same procedures
for the left door. Each bolt and screw
in the door requires a washer.
Proceed as follows:
1
Attach the handle to the door with
2 bolts and nuts as shown.
2
Hold the vertical door brace
against the center of the inside sur-
face of the door and turn the screw to
hold the vertical door brace in place.
Fasten to door above and below
center connection using 2 screws.
3
Put a horizontal door brace onto
the top edge and bottom edge and
fasten with 1 bolt in the center.
4
Attach the lower door guides and
bolts as shown.
5
Repeat steps 1 through 4 for the
left door.
STEP
4
66382
10498
STEP
2
6278
10498
STEP
3
66045
STEP
1
66382
10478 Right Door
10478 Left Door
66382
10498
6278
66045
Horizontal
Door Brace Door
Washer
Guide
