● Parts Needed For ●
Frames
Step 7
B20
20
● ● ● ● ● Door Track Assembly (1)
● ● ● ● ● Rear Wall Angle Assembly (1)
● ● ● ● ● 8476 Side Wall Angle (2)
● ● ● ● ● Rear Wall Channel Assembly (1)
● ● ● ● ● 9920 Side Wall Channel (2)

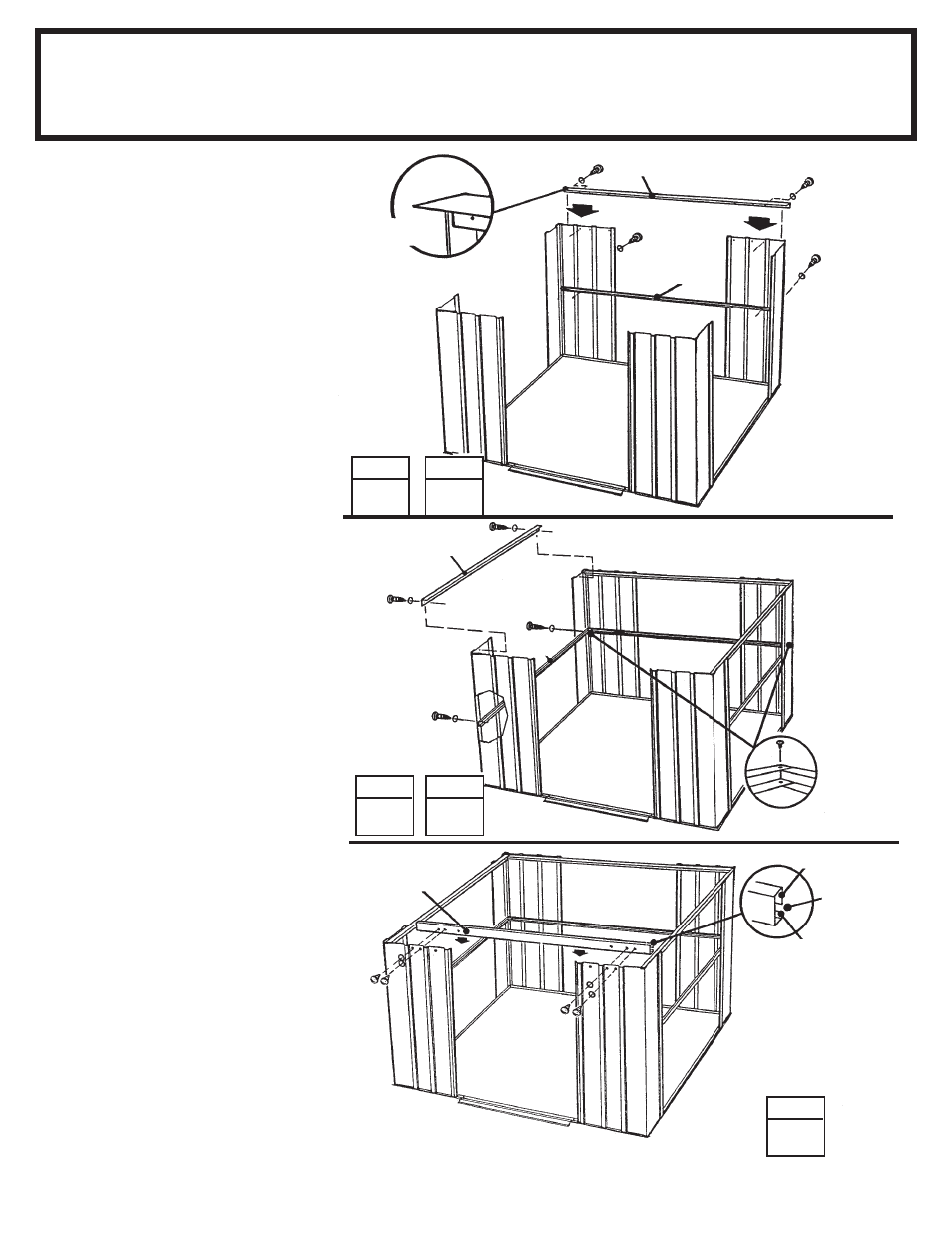

The main frame pieces give rigidity to
the side walls and provide a surface
for attaching the gables which sup-
port the roof.
1
Fasten the rear wall angle as-
sembly across the inside top of the
rear wall using screws.
2
Fasten the rear wall channel as-
sembly across the middle of the rear
wall using screws.
3
Fasten the side wall angles across
the inside top of the side panels us-
ing screws. Side wall angles must
overlap rear wall angle in corners.
4
Fasten the side wall channels
across the middle of the side panels
using screws. Fasten overlaps in rear
corners with screws.
5
Fasten the door track assembly
(holes on top) across the top of the
front wall panels using screws. See
the figure.
