Step 3
B16
● Parts Needed For ●
Roof Beam Assembly
● ● ● ● ● 8474 Roof Beam (1)
● ● ● ● ● 8476 Side Wall Angle (1)
The roof beams join the two gables
and support the roof panels. The main
roof beam is made up of two pieces
fastened together.
1

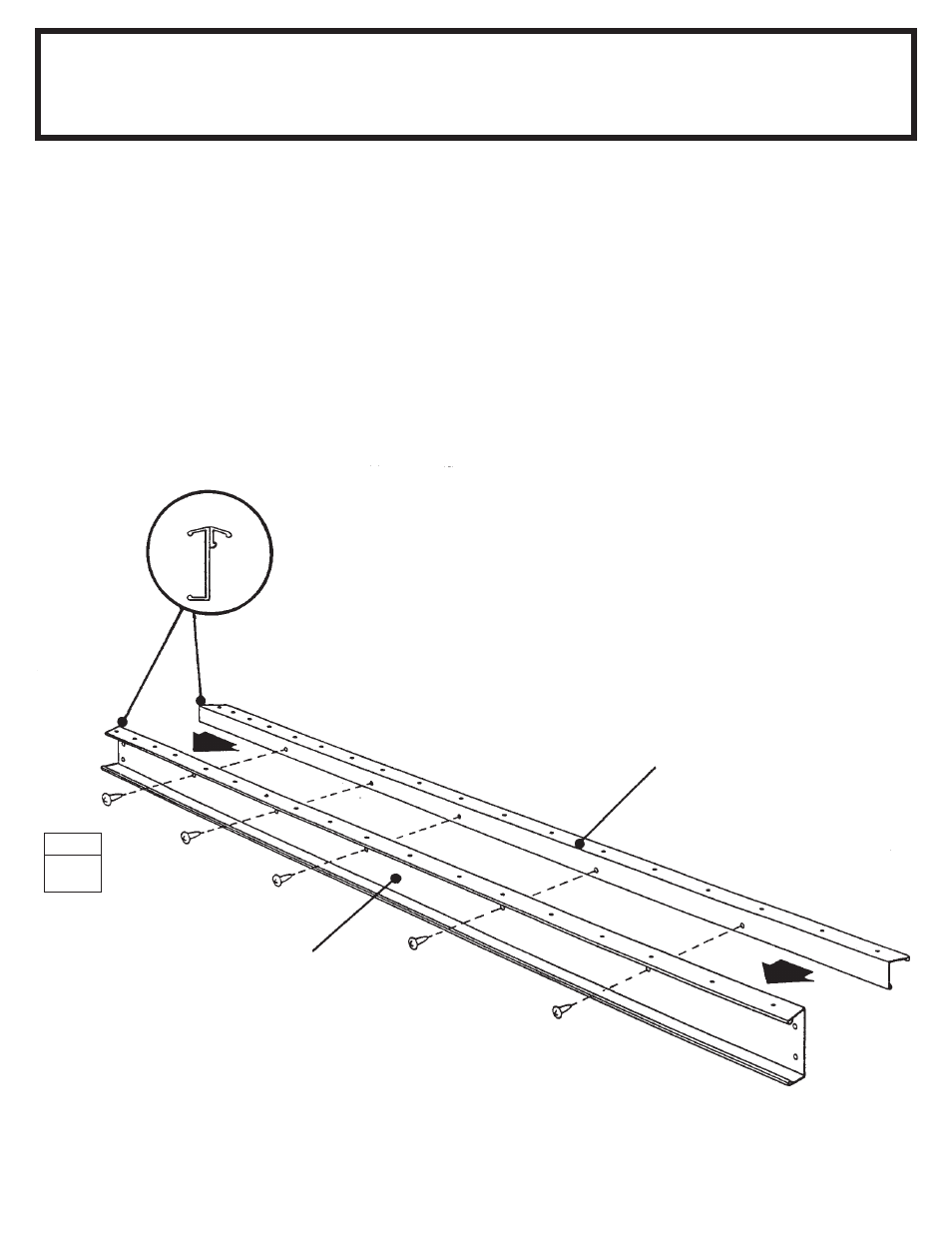

Place the side wall angle, back-
to-back, with a roof beam and fasten
together using ten screws.
2
Set this piece aside for later use.
Assembled
8476 Side Wall Angle
8474 Roof Beam
Main Roof Beam
