Playing images on a
TV
Connection methods and the image quality
viewed on the TV screen differ depending
on what type of TV is connected, and the
connectors used.
* 1 If the TV does not have the HDMI input jack,
use the A/V connecting cable for connection.
* 2 HDR-CX250/CX260V
* 3 HDR-CX580V/PJ260/PJ260V/PJ580/PJ580V/
PJ600/PJ600V/XR260V
* 4 HDR-CX250/CX260V/CX580V/PJ260/
PJ260V/PJ580/PJ580V
* 5 HDR-PJ600/PJ600V/XR260V
1
Switch the input on the TV to the
connected jack.
2
Connect the camcorder to a TV.
3
Play a movie or a photo on the
camcorder (p. 32).
Notes
Refer to the instruction manuals of the TV as
well.
Use the supplied AC Adaptor as the power


HDMI OUT jack * 3
HDMI OUT jack * 2
A/V Remote
Connector * 5
A/V Remote
Connector * 4

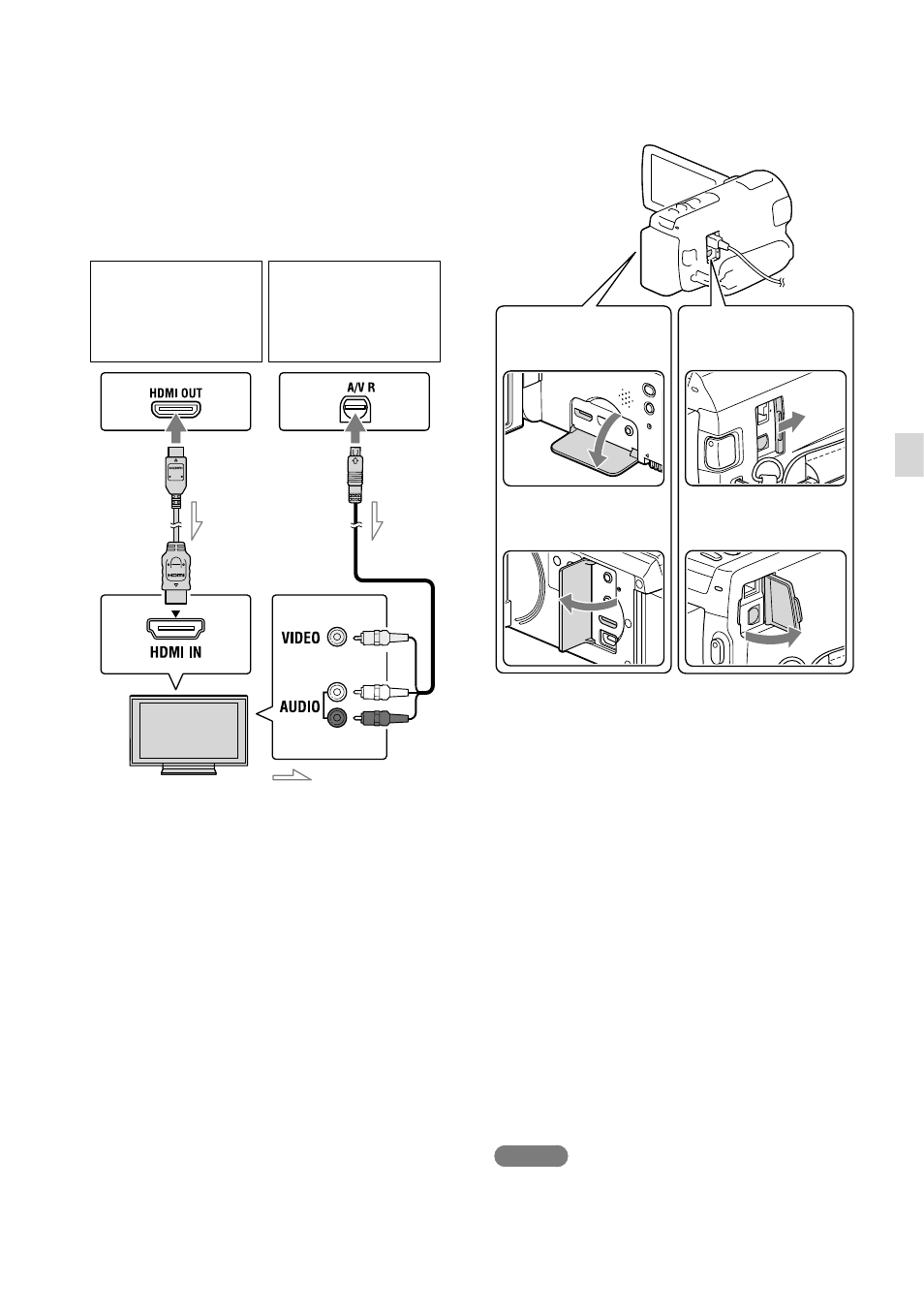

Connecting to a high
definition TV* 1
Connecting to a non-
high definition 16:9
(wide) or 4:3 TV
Yellow
Red
White
HDMI
Cable
(supplied)
A/V
connecting
cable
(supplied)
Input
Signal flow
