6
Setup
Before using your monitor, check that the following accessories
are included in your carton:
• Power cord (1)
• HD15 video signal cable (1)
• USB cable (1)
• Exclusive Power Mac G3/G4 adapter (1)
• Warranty card (1)
• Notes on cleaning the screen’s surface (1)
• This instruction manual (1)

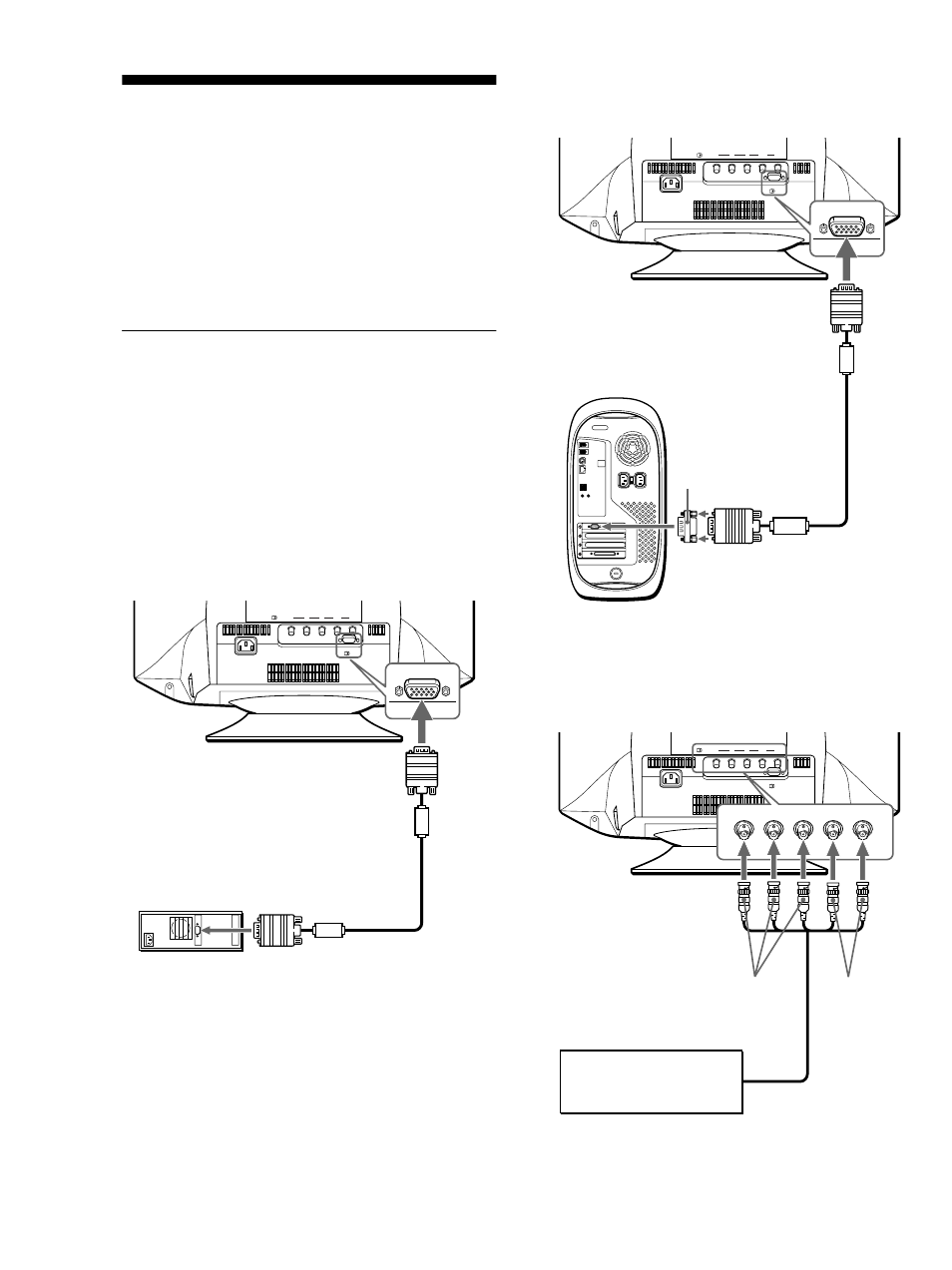

Step 1: Connect your monitor to
your computer
Turn off the monitor and computer before connecting.
Notes
• Do not touch the pins of the video signal cable connector as this might
bend the pins.
• When connecting the video signal cable, check the alignment of the
HD15 connector. Do not force the connector in the wrong way or the
pins might bend.
x x x x
Connecting to an IBM PC/AT or compatible
computer
x x x x Connecting to a Macintosh or compatible
computer
* Connect the supplied adapter to the computer before connecting the
cable. This adapter is compatible only with Power Mac G3/G4
computers that have 3 rows of pins. If you connect to the other version
of Macintosh series computer that has 2 rows of pins, you will need a
different adapter (not supplied).
x x x x
Connecting to the 5 BNC connectors
* Connect the cables from left to right in the following order: Red-Green-
Blue-HD-VD.
Note
Plug & Play (DDC) does not apply to the 5 BNC connectors. If you want
to use Plug & Play, connect your computer to the connector using the
supplied video signal cable.
AC IN
1
2 R G B HD VD
video signal cable
(supplied)
IBM PC/AT or compatible
computer
to HD15
to video output
AC IN
1
2 R G B HD VD
Use the supplied exclusive Power Mac G3/G4 adapter.
to HD15
exclusive Power
Mac G3/G4 adapter
(supplied)
*
Power Mac G3/G4
video signal cable
(supplied)
to video output
AC IN
1
2 R G B HD VD
to R/G/B input to HD/VD
input
Refer to the preceding
examples to connect to your
computer.
video signal cable
(SMF-400, not supplied)
*
