Chapter 6 Hardware Installation 61
SCSI Termination, Continued

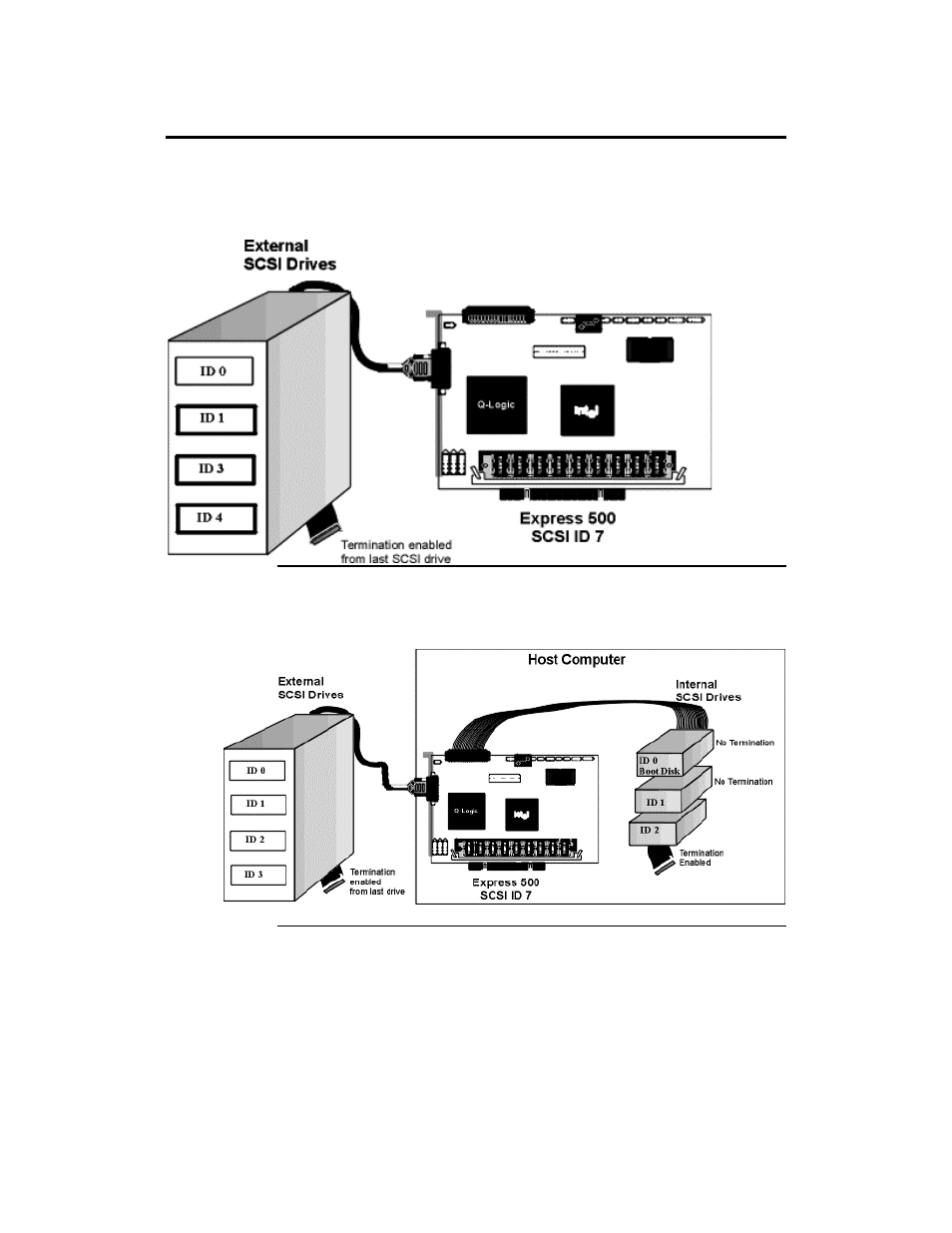

Terminating External Disk Arrays In most array enclosures, the end of the SCSI cable has an
independent SCSI terminator module that is not part of any SCSI drive. In this
way, SCSI termination is not disturbed when any drive is removed, as shown
below:
Terminating Internal and External Disk Arrays You can use both internal and external drives
with MegaRAID Express 500. You still must make sure that the proper SCSI
termination and termination power is preserved, as shown below:
Cont’d
