VGN-NSxx Series Optical Disk Drive
Replacement Instructions
FOR TECHNICAL SUPPORT IN THE US CALL TOLL FREE 1-866-651-7669 FROM 9:00 AM TO 11:00 PM EST
P/N 994660100
Rev. A
2/2

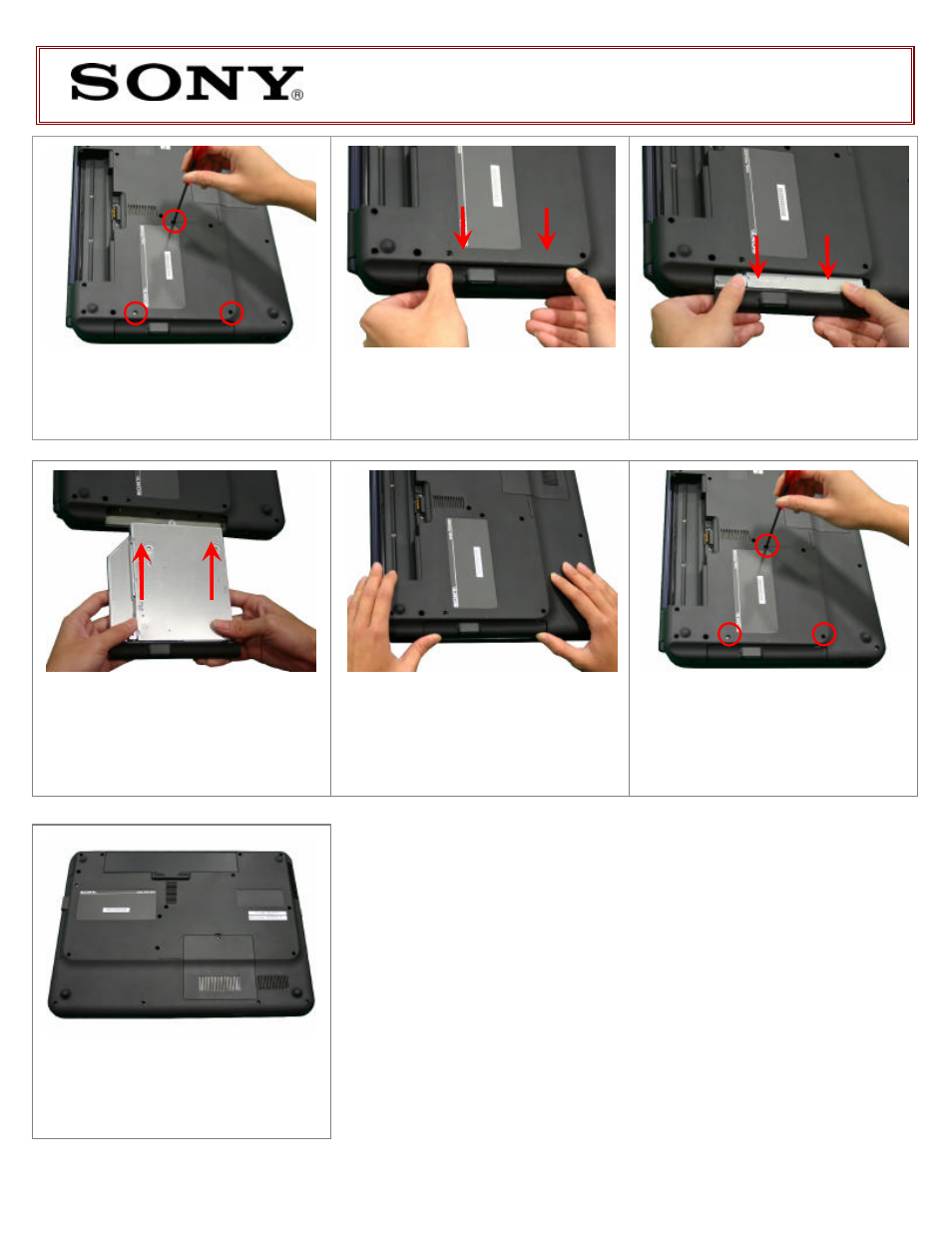

Step 4.
Using the magnetic screwdriver,
remove the three (3) screws securing the
ODD.
Step 5.
To initiate the removal of the ODD,
pull slightly the ODD door as shown in the
picture.
Step 6.
With even force, slide out the
ODD as shown.
Some force may be
required to unlock the ODD from the
connector.
(ODD Reinstallation) Steps 7-9
Step 7.
Hold the new ODD assembly by the
edges and align it with the opening.
IMPORTANT! Install the new ODD in the
correct position as shown in picture.
Step 8.
Make sure the new ODD is seated
flush on the edge of the computer.
Step 9.
Secure the new ODD by re-
installing the three (3) screws previously
removed.
Step 10.
Reinstall the battery pack. Return
the old ODD to Sony following the included
shipping instructions.
