Getting Started
Locating Controls and Ports
Take a moment to identify the controls and ports shown on the following pages.
!
The following illustrations may appear different from your model, depending on the country or area of your residency.

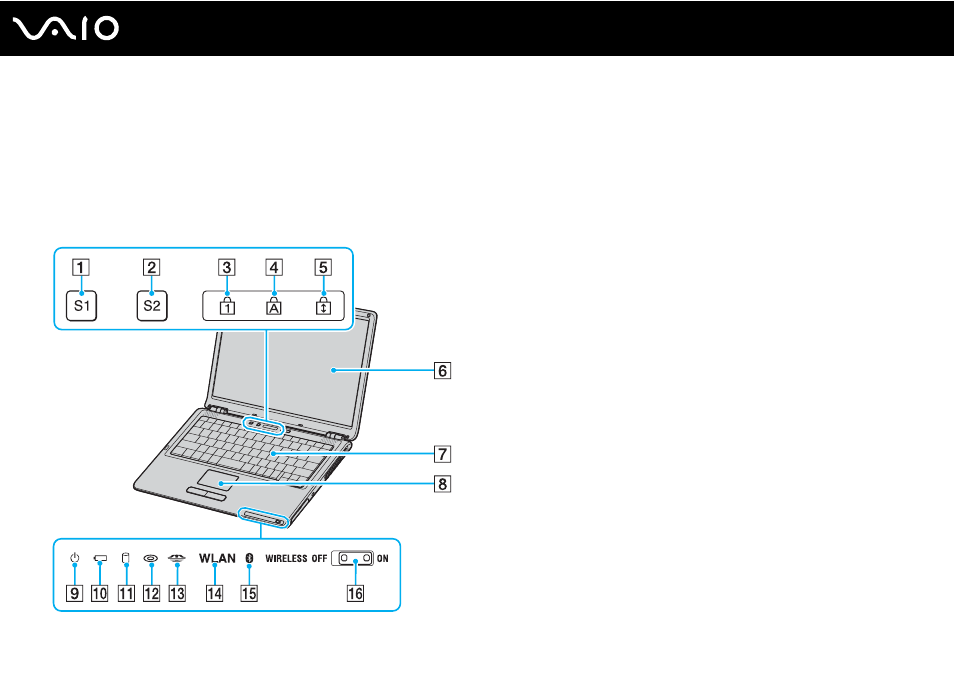

Front
A S1 button (page 28)
B S2 button (page 28)
C
Num lock indicator (page 17)
D
Caps lock indicator (page 17)
E Scroll lock indicator (page 17)
F LCD screen (page 112)
G Keyboard (page 26)
H Touch pad (page 27)
I
Power indicator (page 17)
J
Battery indicator (page 17)
K
Hard disk drive indicator (page 17)
L Optical disc drive indicator (page 17)
M Memory Stick media indicator (page 17)
N WLAN (Wireless LAN) indicator * (page 17)
O Bluetooth indicator * (page 17)
P WIRELESS switch * (page 17)
* Wireless LAN and Bluetooth functionalities are available on selected models
only.
