VPCCW Series Hard Disk Drive
Replacement Instructions
P/N 989200670 Rev. A 2/3

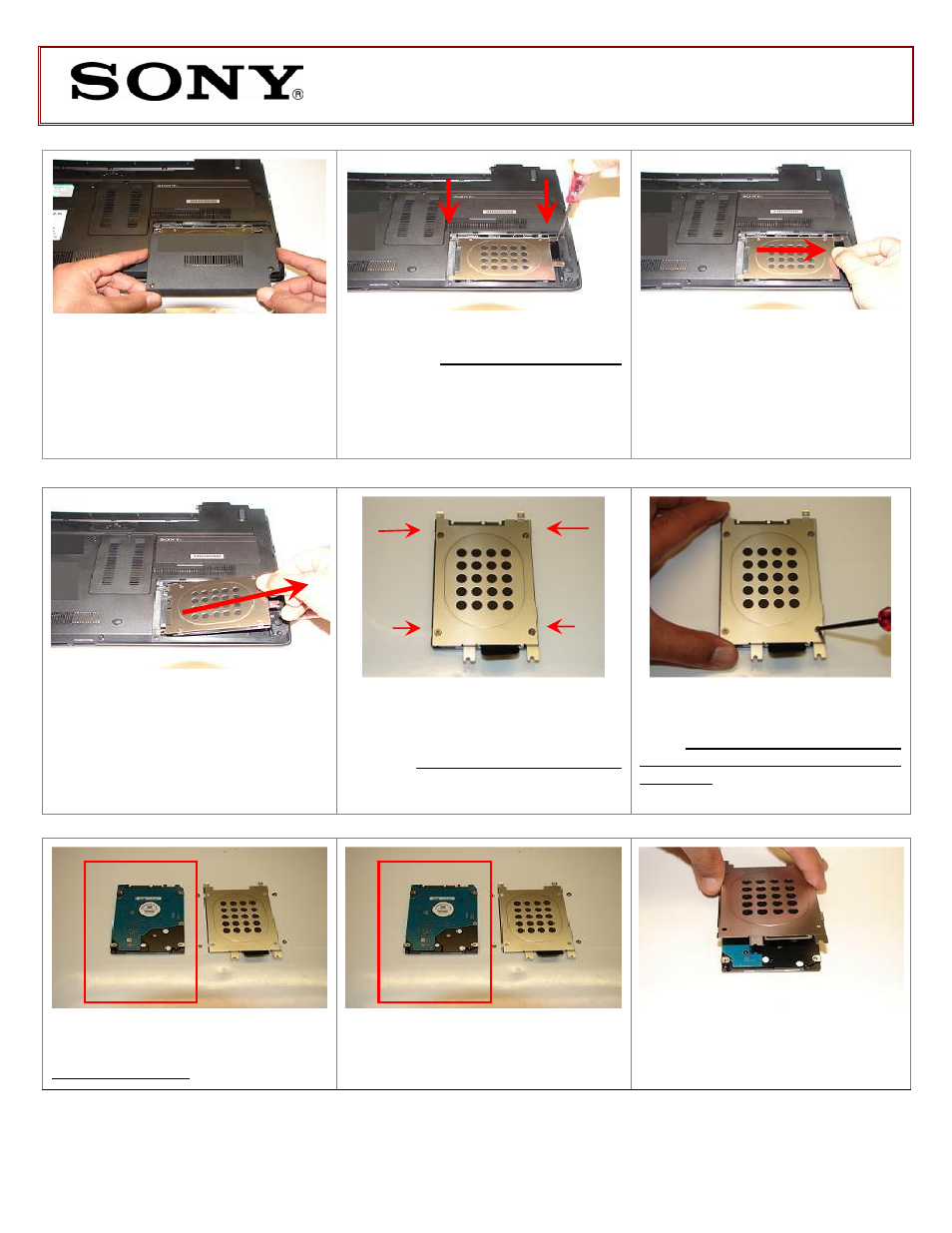

Step 4. Remove HDD access cover
and set aside. Step 5. Using the enclosed magnetic
screwdriver, remove the (2) screws
securing the hard drive assembly. Step 6. Locate the black plastic tab
on the hard drive assembly and
gently pull the original hard drive to
the
right to disconnect from
connector.
Step 7. Once the hard drive assembly
is disconnected from the connector
carefully lift the hard drive assembly to
remove from hard drive bay.
Step 8. After the HDD is completely
removed, identify the (4) side screws
that mount the HDD bracket to the
HDD.
Step 9. Holding the edge of the HDD,
remove each screw and set the screw
aside. These screws will be used to
mount the HDD bracket onto the
new HDD.
Step 12. Place the HDD bracket over
the new HDD. Step 10. All (4) screws and bracket
should now be removed from old HDD.
Set old HDD aside.
Step 11. Prepare the new HDD
provided for assembly.
OLD HDD NEW HDD
(HDD Disassembly) Steps 8-10
(HDD Assembly) Steps 11-13
