73
Chapter 6
i.LINK
®
Card

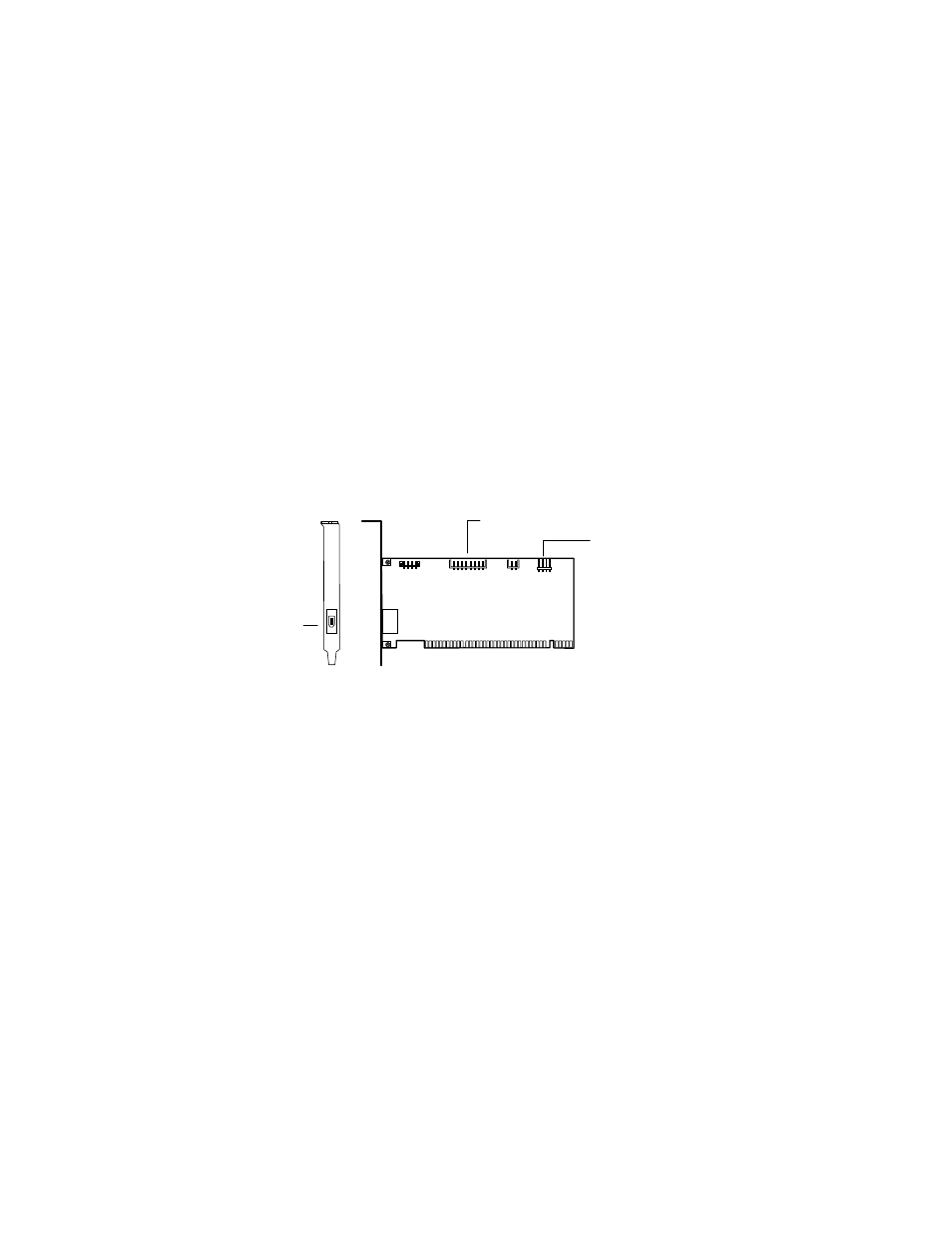

The i.LINK (IEEE-1394) card occupies PCI slot #3. There are four header
connectors, but only two are used: CN3 connects to the power supply,
and CN4 connects to the 4-pin i.LINK connector on the front chassis
through an interface board on the front chassis.
KY0088.V
To 4-pin i.LINK connector on front
chassis
i.LINK
(IEEE-1394)
to power
supply (+12V)
CN2 CN3 CN4 CN5
