System Board
59

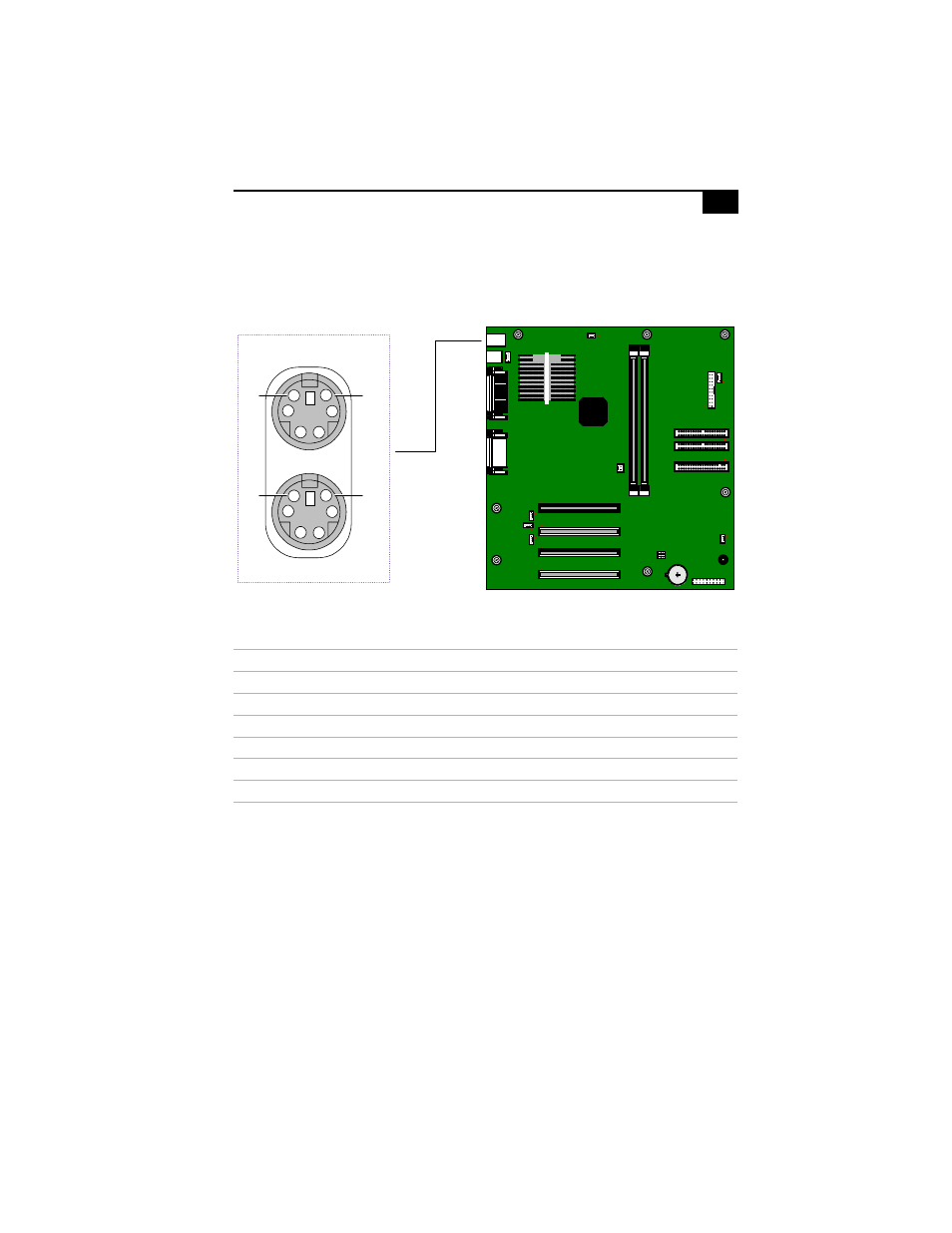

KEYBOARD and MOUSE Connectors
The KEYBOARD connector and the MOUSE connector are 6-pin female
PS/2-type (mini-DIN) connectors. They have identical pinouts.
KEYBOARD and MOUSE
Pin
Signal Name
1
DATA
2
NC
3
LOGIC GND
4
+5V (fused)
5
CLOCK
6
NC
KY0032.VSD
1
6
1
6
KEYBOARD (optional)
MOUSE
