System Board
61

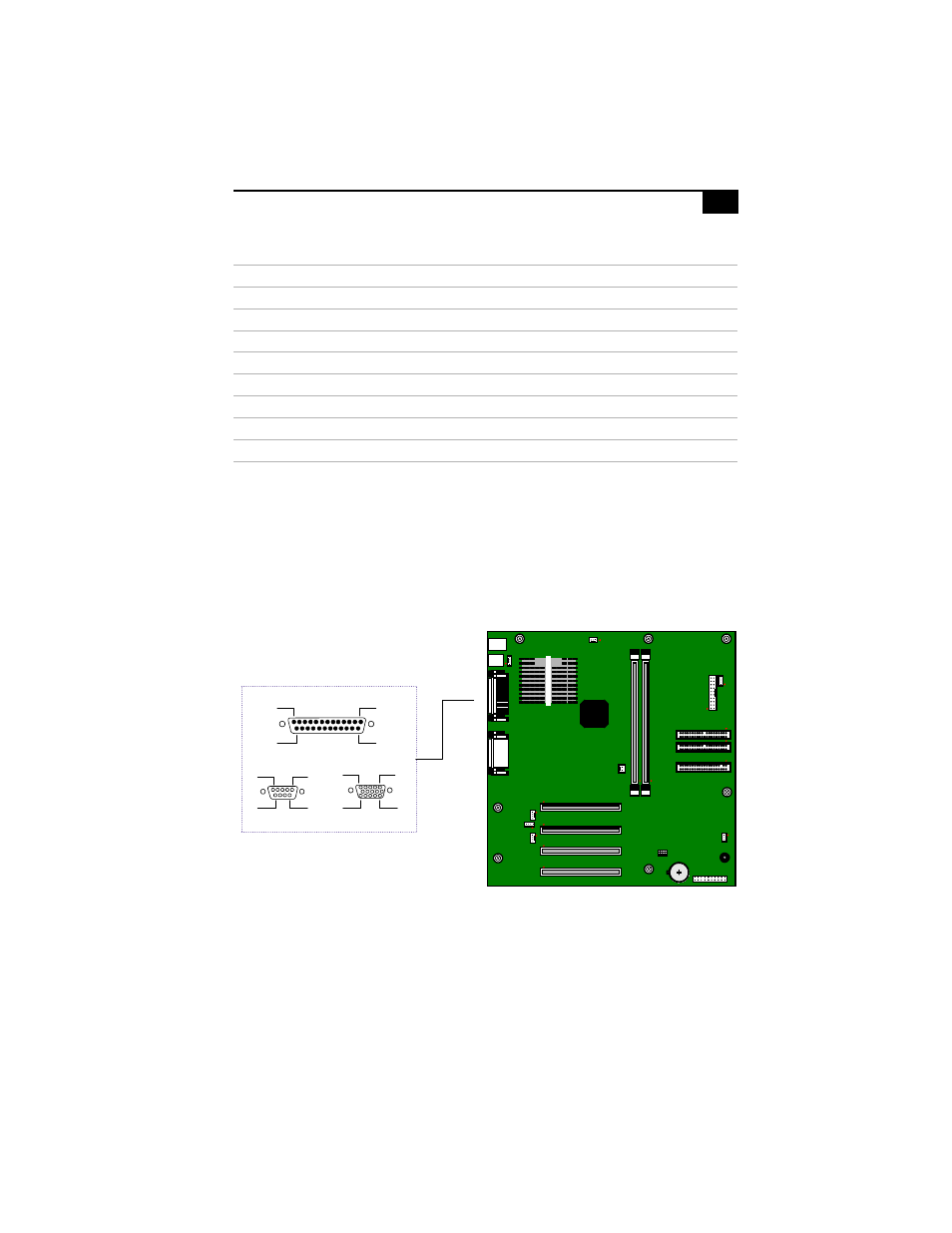

SERIAL 1, PRINTER, and MONITOR Connectors
The SERIAL 1, PRINTER, and MONITOR connectors are mounted in a
single bracket on the system board. The SERIAL 1 connector is a DB-9
male connector. The PRINTER connector is a DB-25 female connector. The
MONITOR connector is a standard 15-pin female high-density VGA-type
connector.
USB2
Pin
Signal Name
1
USBVCC1
*
2
USBP0#
3
USBP0
4
Ground
5
USBVCC2
*
6
USBP1#
7
USBP1
8
Ground
* Uses over-current protector.
OM04701D.VSD
SERIAL 1
MONITOR
PRINTER
1
5
6
9
13
1
25
14
1
5
11
15
